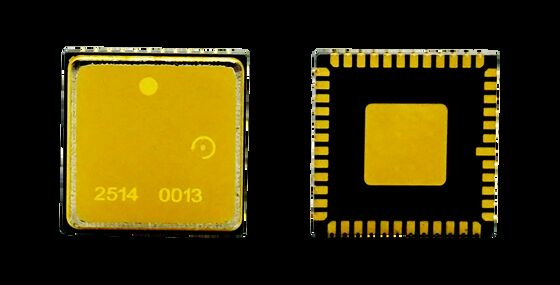

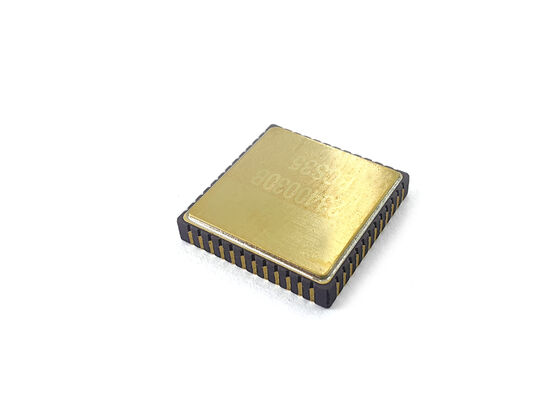

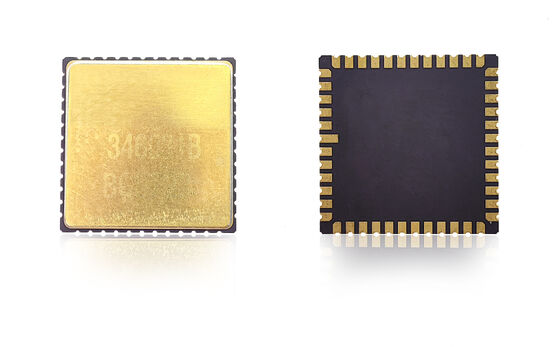

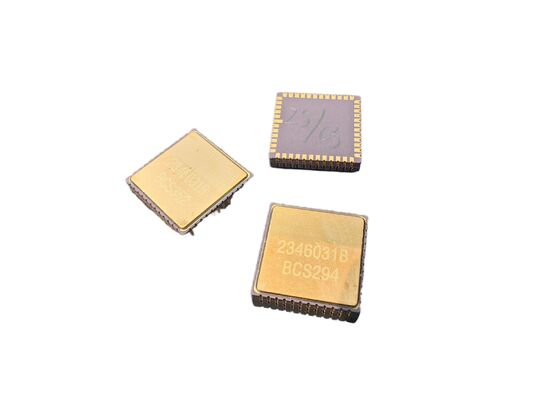

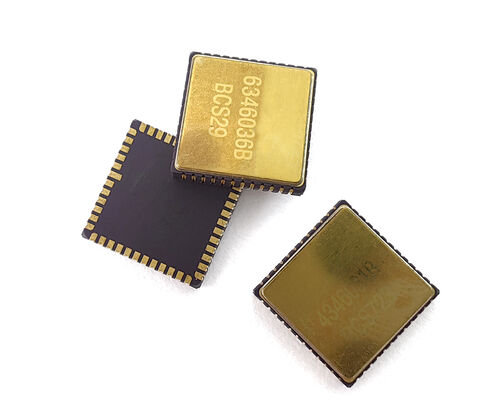

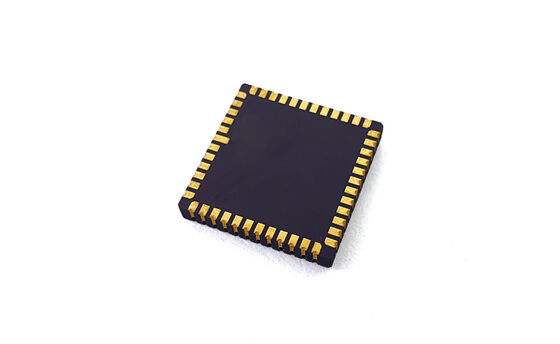

High Precision MEMS Gyroscope Chip MGZ318HC-A1 for UAV Navigation with Low Bias Drift

Name: High Precision MEMS Gyroscope Chip MGZ318HC-A1 for UAV Navigation with Low Bias Drift
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ318HC-A1
Price: 10000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MGZ318HC-A1
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Measuring Range:

400

Bias Stability:

<0.1°/h

Bias Stability (10s):

<1°/h

Bias Stability (1s):

<3°/h

Bias Error Over Temperature:

<10°/h

Bias Repeatability:

<0.5°/h

Band Width @3DB Customized):

200Hz

Angular Random Walk(ARW):

<0.05°/√h

Packaging Details:

sponge+box

Supply Ability:

500/month

Product Description

High Precision MEMS Gyroscope Chip MGZ318HC-A1 for UAV Navigation with Low Bias Drift

Product Overview

The MGZ318HC-A1 is a high-precision MEMS gyroscope chip specifically designed for UAV navigation applications, featuring exceptional bias stability and low drift characteristics.

PCB Design Guidelines

Place decoupling capacitors for pins VCP, VREF, VBUF, and VREG as close to the pins as possible
Minimize equivalent resistance of traces
Connect other ends of decoupling capacitors for VREF, VBUF, and VREG to the nearest AVSS_LN and then to signal ground via magnetic bead
Position decoupling capacitors for VCC and VIO close to corresponding pins
Ensure wide PCB traces for VCC (approximately 35mA current during normal operation)
Avoid routing under the package for smooth assembly
Locate components away from stress concentration areas
Avoid areas with large heat dissipation elements, external mechanical contact, extrusion, pulling, and positioning screw warping zones

Technical Specifications

Performance	Unit	MGZ318HC-A1
Range	deg/s	400
Band Width @3DB (customized)	Hz	200
Output accuracy (digital SPI)	bits	24
Output rate (ODR) (customized)	Hz	12K
Delay (customized)	ms	<1.5
Bias stability	deg/hr (1σ)	<0.1
Bias stability (1σ 10s)	deg/hr (1σ)	<1
Bias error over temperature (1σ)	deg/hr (1σ)	<10
Scale factor at 25°C	lsb/deg/s	16000
Scale factor repeatability (1σ)	ppm (1σ)	<20ppm
Scale factor vs temperature (1σ)	ppm (1σ)	<150ppm
Scale factor non-linearity (1σ)	ppm	<150ppm
Angular random walk (ARW)	°/√h	<0.05
Noise (Peak to Peak)	deg/s	<0.35
G Value sensitivity	°/hr/g	<1
Power-on time (valid data)	s	750m
Sensor Resonant Frequency	hz	10.5k-13.5K

Environmental Specifications

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 18g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 45mA

Installation Instructions
