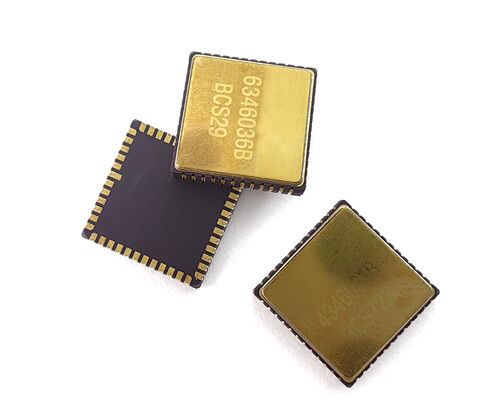

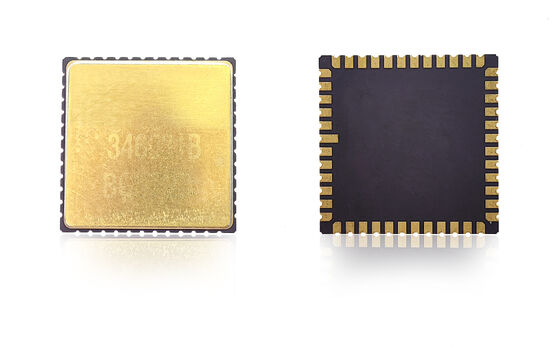

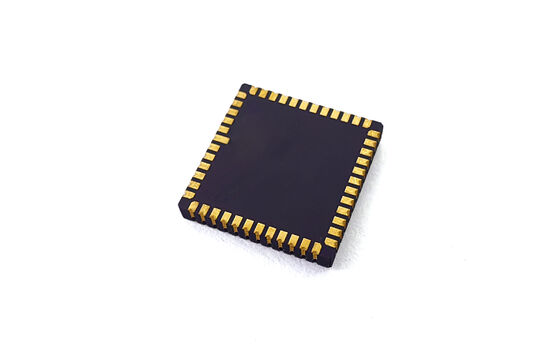

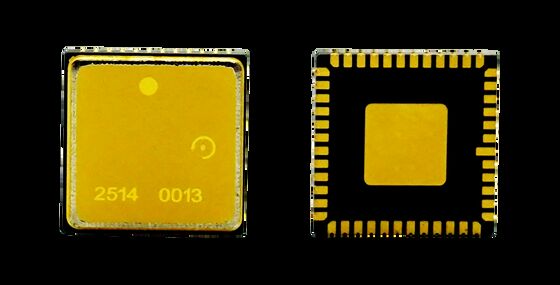

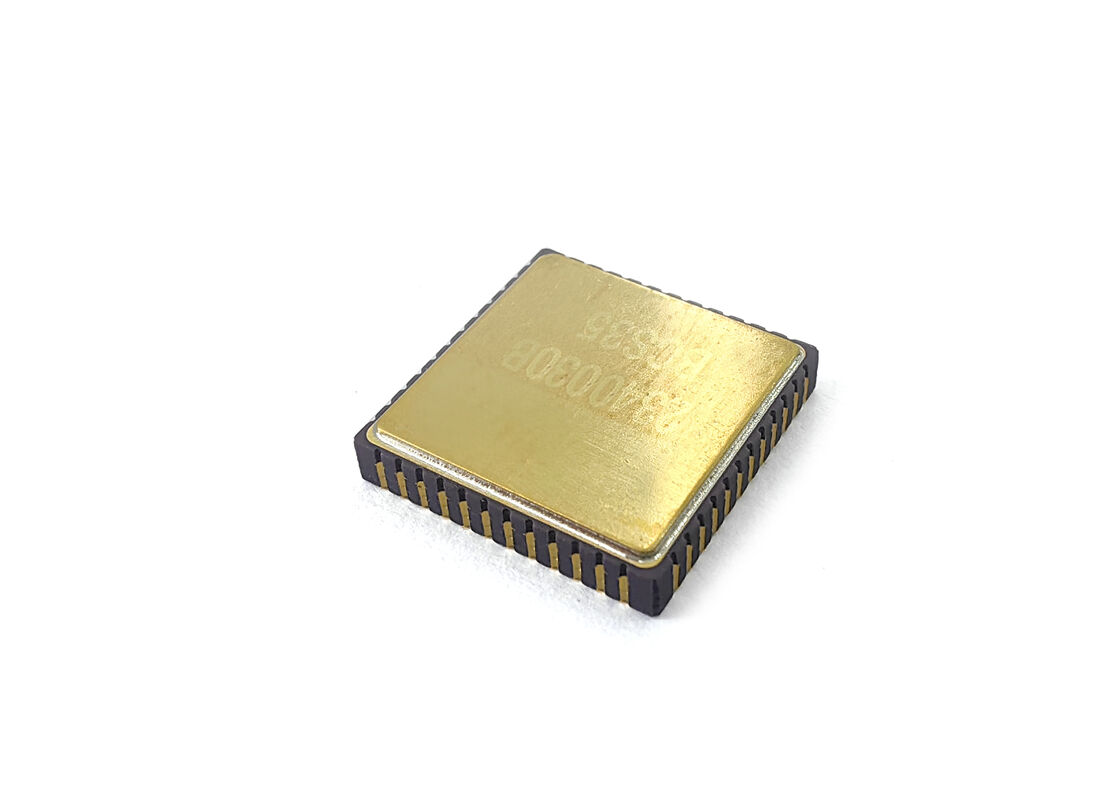

New Generation MEMS Gyroscope Chips for Demanding Applications

Brand Name:	Firepower
Model Number:	MGZ318HC-A1
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Measuring Range:

400 Deg/s

Bias Stability:

<0.1°/h

Band Width:

200Hz

Angular Random Walk:

<0.05°/√h

Output Accuracy:

24 Bits

Supply Voltage:

5±0.25V

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

MEMS gyroscope chips for navigation

high-performance fiber optic gyro

MEMS gyro chips with warranty

Product Description

New Generation MEMS Gyroscope Chips for Demanding Applications

Product Overview

Our MEMS gyroscope chip is a high-performance angular rate sensor designed for precision motion sensing and navigation applications. It features low bias drift, high stability, and excellent resistance to shock and vibration, ensuring reliable performance in demanding environments.

With compact size, low power consumption, and flexible digital interfaces, it can be easily integrated into IMU, UAV, robotics, and inertial navigation systems. OEM customization is supported to meet specific project requirements, making it an ideal solution for both industrial and commercial applications.

PCB Design Guidelines

Decoupling capacitors for pins VCP, VREF, VBUF, and VREG should be placed as close to the pins as possible
Minimize equivalent resistance of traces
Connect other ends of decoupling capacitors for VREF, VBUF, and VREG to nearest AVSS_LN and then to signal ground via magnetic bead
Place decoupling capacitors for VCC and VIO close to corresponding pins
VCC normal operation current: approximately 35 mA - requires wide PCB traces for voltage stability
Avoid routing under package for smooth assembly
Locate components to avoid stress concentration areas
Avoid areas with large heat dissipation elements, external mechanical contact, extrusion, pulling, and positioning screw warping during installation

Technical Specifications

Performance	Unit	MGZ332HC-P1	MGZ332HC-P5	MGZ318HC-A1	MGZ221HC-A4	MGZ330HC-O1	MGZ330HC-A1
Range	deg/s	400	400	400	400	400	100
Band Width @3DB (customized)	Hz	90	180	200	200	300	50
Output accuracy (digital SPI)	bits	24	24	24	24	24	24
Output rate (ODR) (customized)	Hz	12K	12K	12K	12K	12K	12K
Delay (customized)	ms	<3	<1.5	<1.5	<1.5	<1	<6
Bias stability	deg/hr(1σ)	<0.05	<0.05	<0.1	<0.5	<0.1	<0.02
Bias stability (1σ 10s)	deg/hr(1σ)	<0.5	<0.5	<1	<5	<1	<0.1
Bias error over temperature (1σ)	deg/hr(1σ)	<5	<5	<10	<30	10	5
Scale factor at 25°C	lsb/deg/s	20000	20000	16000	16000	20000	80000
Scale factor repeatability (1σ)	ppm(1σ)	<20ppm	<20ppm	<20ppm	<20ppm	<100ppm	<100ppm
Scale factor vs temperature (1σ)	ppm(1σ)	100ppm	100ppm	<150ppm	<150ppm	<300ppm	<300ppm
Scale factor non-linearity (1σ)	ppm	100ppm	100ppm	<150ppm	<150ppm	<300ppm	<300ppm
Angular random walk (ARW)	°/√h	<0.025	<0.025	<0.05	<0.25	<0.05	<0.005
Noise (Peak to Peak)	deg/s	<0.15	<0.3	<0.35	<0.4	<0.25	<0.015
G Value sensitivity	°/hr/g	<1	<1	<1	<3	<1	<1

Additional Technical Parameters

Power-on time (valid data): 750ms
Sensor Resonant Frequency: 10.5k-13.5kHz

Environmental Suitability

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 18g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 45mA

Installation Instructions
