MEMS Gyroscope Chip Factory Low Drift for UAV Stabilization System

Brand Name:	Firepower
Model Number:	MGZ318HC-A1
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Measuring Range:

400

Packaging Details:

sponge+box

Supply Ability:

500/month

Product Description

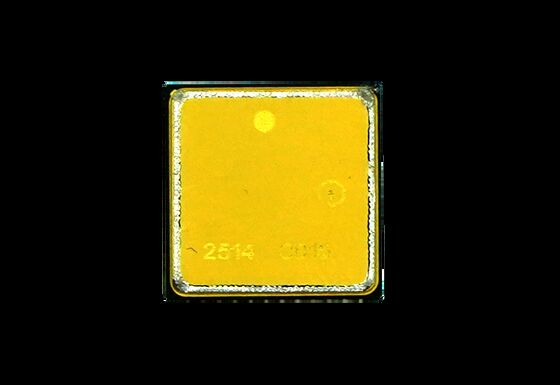

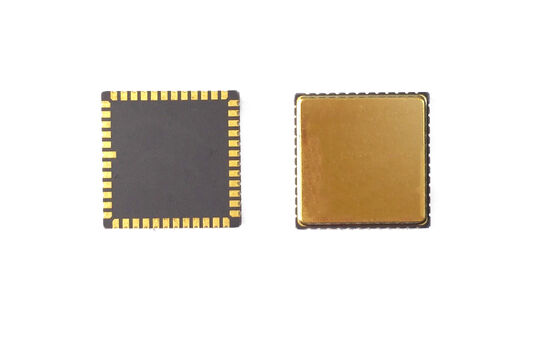

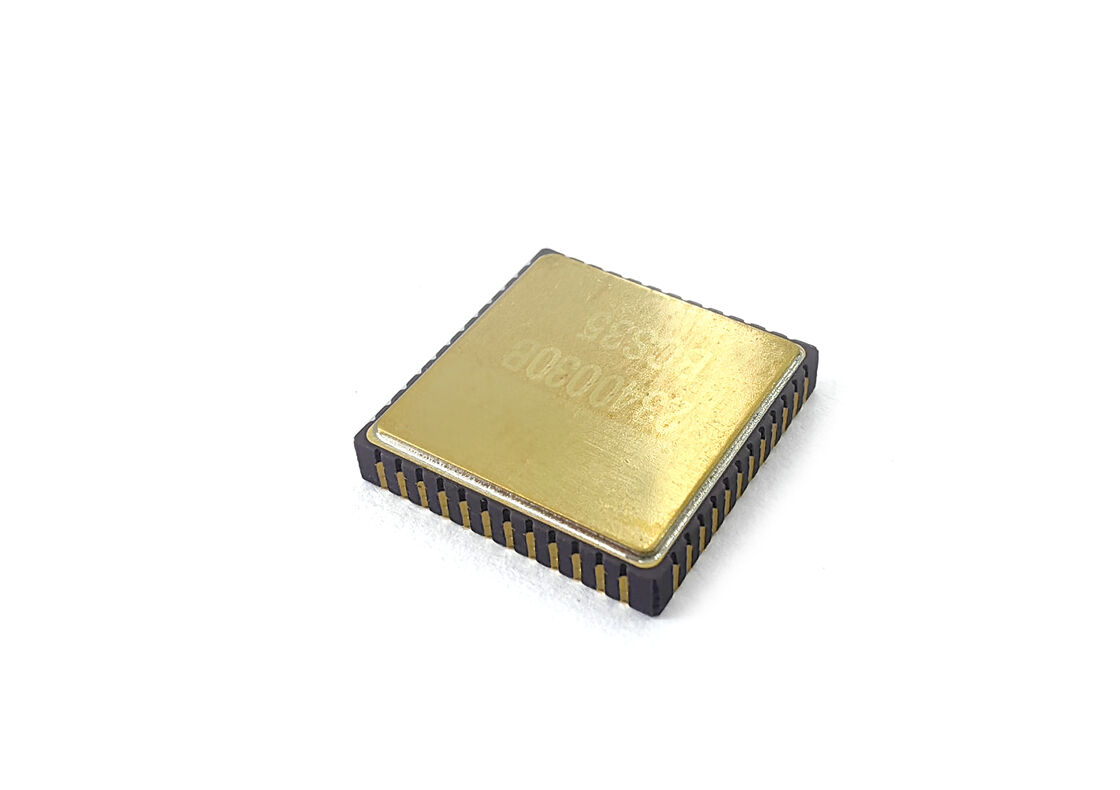

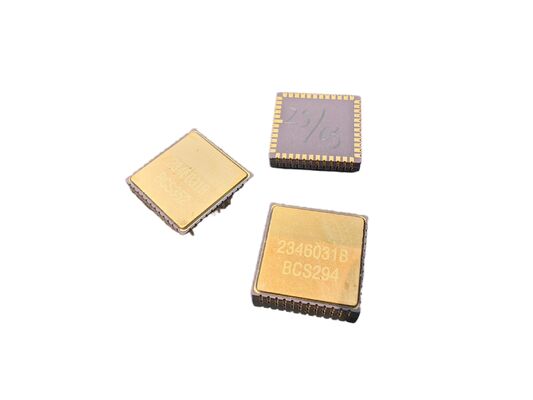

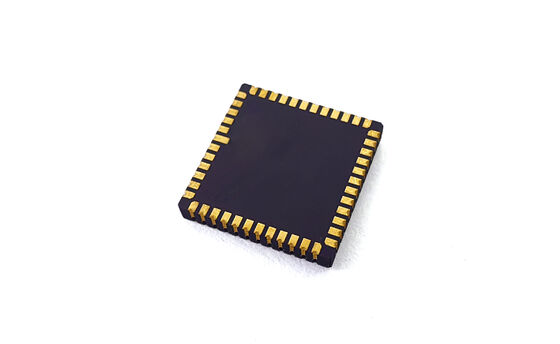

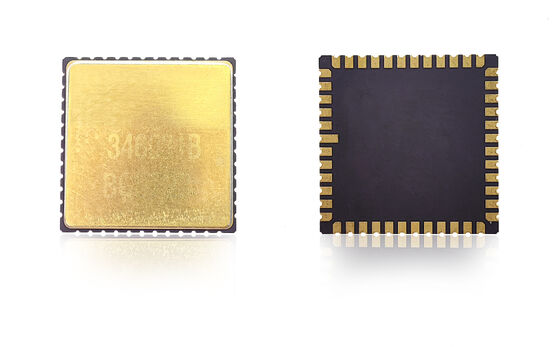

MEMS Gyroscope Chip Factory Low Drift for UAV Stabilization System

Product Overview

Featuring high sensitivity and low drift, this MEMS gyroscope chip ensures precise motion detection in demanding environments. It is suitable for UAV stabilization, robotics, and autonomous navigation systems. Its compact structure and low power design make it ideal for modern embedded solutions.

PCB Design Guidelines

Decoupling capacitors for pins VCP, VREF, VBUF, and VREG should be placed as close to the pins as possible
Minimize equivalent resistance of traces
Connect other ends of decoupling capacitors for VREF, VBUF, and VREG to nearest AVSS_LN and then to signal ground via magnetic bead
Place decoupling capacitors for VCC and VIO close to corresponding pins
Ensure wide PCB traces for VCC (approximately 35mA current during normal operation)
Avoid routing under the package for smooth assembly
Locate components to avoid areas of stress concentration
Avoid large heat dissipation elements and areas with external mechanical contact
Prevent placement in areas prone to extrusion, pulling, or warping during installation

Technical Specifications

Performance	Unit	MGZ332HC-P1	MGZ332HC-P5	MGZ318HC-A1	MGZ221HC-A4	MGZ330HC-O1	MGZ330HC-A1
Range	deg/s	400	400	400	400	400	100
Band Width @3DB (customized)	Hz	90	180	200	200	300	50
Output accuracy (digital SPI)	bits	24	24	24	24	24	24
Output rate (ODR) (customized)	Hz	12K	12K	12K	12K	12K	12K
Delay (customized)	ms	<3	<1.5	<1.5	<1.5	<1	<6
Bias stability	deg/hr(1σ)	<0.05	<0.05	<0.1	<0.5	<0.1	<0.02
Bias stability (1σ 10s)	deg/hr(1σ)	<0.5	<0.5	<1	<5	<1	<0.1
Bias error over temperature (1σ)	deg/hr(1σ)	<5	<5	<10	<30	10	5
Scale factor at 25°C	lsb/deg/s	20000	20000	16000	16000	20000	80000
Scale factor repeatability (1σ)	ppm(1σ)	<20ppm	<20ppm	<20ppm	<20ppm	<100ppm	<100ppm
Scale factor vs temperature (1σ)	ppm(1σ)	100ppm	100ppm	<150ppm	<150ppm	<300ppm	<300ppm
Scale factor non-linearity (1σ)	ppm	100ppm	100ppm	<150ppm	<150ppm	<300ppm	<300ppm
Angular random walk (ARW)	°/√h	<0.025	<0.025	<0.05	<0.25	<0.05	<0.005
Noise (Peak to Peak)	deg/s	<0.15	<0.3	<0.35	<0.4	<0.25	<0.015
G Value sensitivity	°/hr/g	<1	<1	<1	<3	<1	<1
