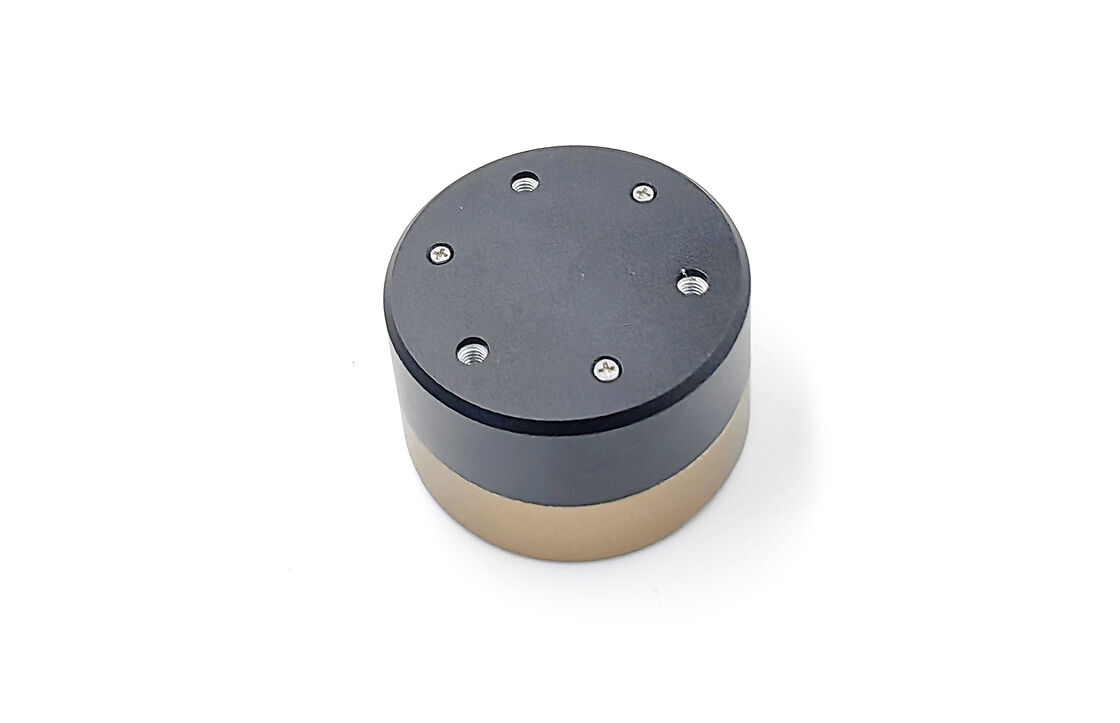

Fiber Optic Gyroscope VG1703 Compatible Replacement for High Accuracy INS Systems

Name: Fiber Optic Gyroscope VG1703 Compatible Replacement for High Accuracy INS Systems
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±300°/s

Bias Stability:

≤0.8°/h

Zero Bias Repeatability:

≤0.8°/h

Random Walk Coefficient:

≤0.02°/√h

Supply Voltage:

+5V

Band Width:

≥300Hz

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

Fiber Optic Gyroscope VG1703 Compatible Replacement for High Accuracy INS Systems

Competitive Comparison: MFOG-40 vs Fizoptika VG1703

Parameter	MFOG-40	Fizoptika VG1703
Measurement Range	± 300°/s	±130°/s / ±150°/s / ±300°/s
Zero Bias Stability	≤ 0.8°/h	≤1°/h
Angular Random Walk	≤ 0.02°/√h	0.008-0.02°/√h
Bias Repeatability	≤ 0.8°/h	≤1°/h
Scale Factor Nonlinearity	≤500 ppm	≤500 ppm
Bandwidth	≥300 Hz	up to 1 kHz
Power Consumption	≤1.5W	0.25-0.5W
Size	φ40*20 mm	φ40*12-19 mm
Weight	≤40g	18-35g
Operating Temp	-40 ~ +70°C	-40 ~ +70°C
Vibration	20g	up to 30g

Product Overview

With its compact structure and high-performance sensing capability, the MFOG-40 is an ideal solution for modern inertial systems. It supports applications such as UAV stabilization, navigation systems, and industrial automation, while acting as a cost-efficient VG1703 alternative.

Technical Specifications

Parameter	Specification
Measurement Range	±300°/s
Scale Factor	3600 LSB/(°/s)
Scale Factor Nonlinearity	≤500 ppm
Zero Bias Stability (10s, 1σ)	≤0.8°/h
Zero Bias Repeatability	≤0.8°/h
Angular Random Walk	≤0.02°/√h
Bias Stability (Full Temp)	≤1.5°/h
Bandwidth	≥300 Hz
Power Supply	5V ±0.15V
Power Consumption	≤1.5W

Applications

Inertial Navigation Systems (INS)
UAV Flight Control & Stabilization
Robotics & Autonomous Systems
Antenna Stabilization Platforms
Industrial Motion Control
Marine & Land Navigation
Electro-Optical Tracking Systems
