Single Axis Fiber Optic Gyroscope Digital Output Inertial Sensor

Name: Single Axis Fiber Optic Gyroscope Digital Output Inertial Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±500°/s

Bias Stability:

≤2°/h

Random Walk Coefficient:

≤0.04°/√h

Supply Voltage:

+5V

Band Width:

≥300Hz

Dimension:

φ24X39mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Product Description

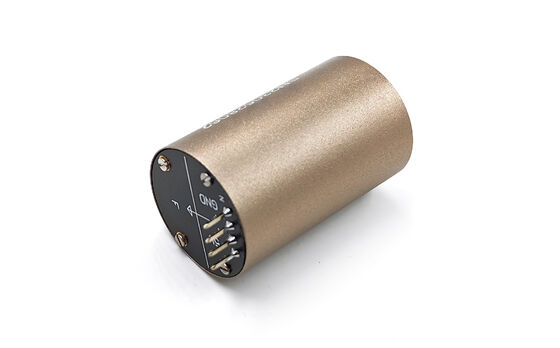

Single Axis Fiber Optic Gyroscope Digital Output Inertial Sensor

Product Overview

MFOG-24 is a micro-nano fiber optic gyroscope that combines precision optics, electronics, and mechanics for accurate angular rate measurement. Its no-moving-part design reduces maintenance and enhances durability.

Applications

Applicable for UAVs, robotic arms, autonomous vehicles, and industrial navigation. Fully compatible as a substitute for Fizoptika VG191AD.

Technical Specifications

Complete parameter comparison between MFOG-24, MFOG-24-AN, and Fizoptika VG191AD:

Parameter	Unit	MFOG-24	MFOG-24-AN	Fizoptika VG191AD
Measurement Range	°/s	±500	±300	300
Scale Factor	LSB/°/s or mV/°/s	3600 LSB/°/s	7 mV/°/s	0.02 % RMS
Scale Factor Nonlinearity	ppm	300	≤1000	N/A
Zero-Bias Stability (10s, 1σ)	°/h	≤1.5	≤2	1 (Allan variance min)
Zero-Bias Repeatability (1σ)	°/h	≤1.5	≤2	N/A
Angular Random Walk (ARW)	°/√h	≤0.03	≤0.04	0.012
Bandwidth (3dB)	Hz / kHz	≥300 Hz	≥450 Hz	0.6 kHz
Magnetic Response	°/h/Gauss	N/A	N/A	3 / 0.05 typical
Initialization	s	Fast	Fast	0.03
Power Supply	V	5 ±0.15	5 ±0.15	+5V
Power Consumption	W	≤1.5	≤0.7	0.5
Data Rate	kHz	N/A	N/A	8 (24-bit)
Baud Rate	kBd	N/A	N/A	921.6, RS422 asynchronous
Operating Temperature	°C	-40~+65	-40~+65	-40…+70
Endurance / Storage Temperature	°C	-55~+85	-55~+85	-55…+85 (>2h, non-operating)
Random Vibration	g	20, 20-2000 Hz	20 g	18 g, 20-2000 Hz RMS
Shocks	g	N/A	N/A	750 g, 1 ms half-sine
Dimensions	mm	φ24 * 39	φ24 * 39	φ24 * 48
Weight	g	≤30	≤30	30 / 45
Housing	--	Structural + Optical + Electronics	Structural + Optical + Electronics	Al alloy / μ-metal, IP67
MTBF / Lifetime	yr	N/A	N/A	15 (humidity conditions applied)
Moving Parts	--	None	None	None
Start-up	--	Fast	Fast	0.03 s
Applications	--	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement	UAV, Robotics, Attitude Control, Precision Measurement
Replacement	--	Fizoptika VG191AD compatible	Fizoptika VG191AD compatible	N/A

Applications

Navigation for drones, autonomous vehicles, robotics, and industrial motion control. Serves as a drop-in replacement for Fizoptika VG191AD.

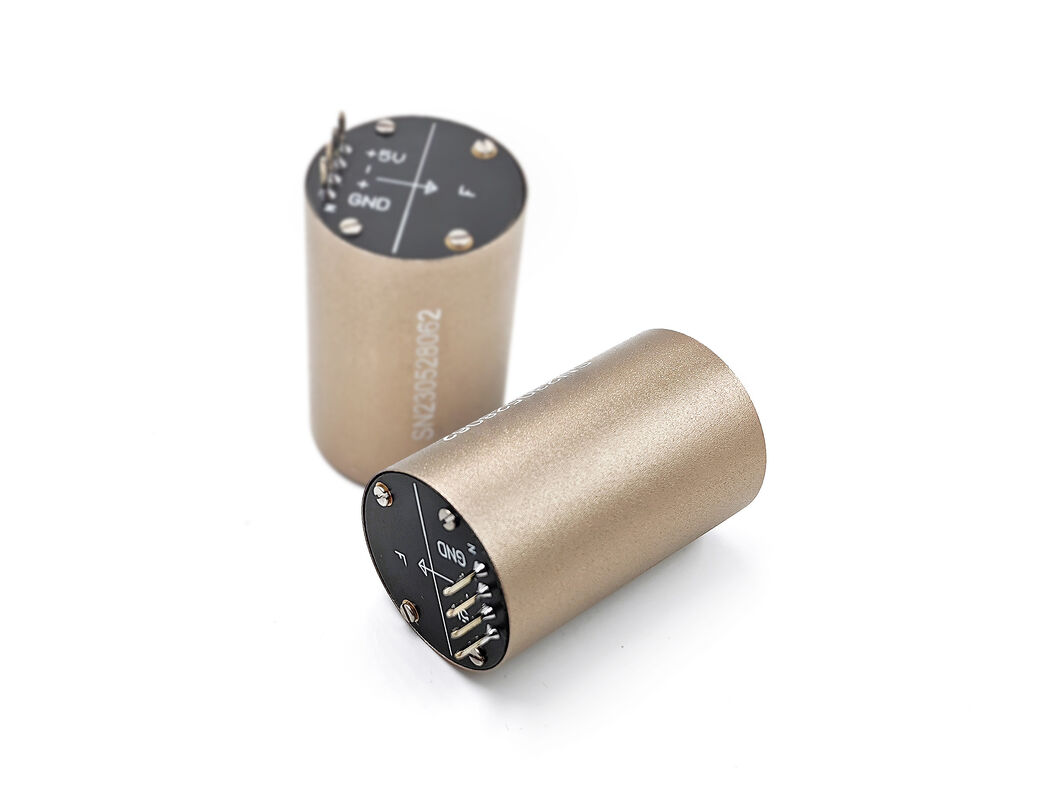

Electrical Interface

Number	Definition
1	5V
2	Analog output Low
3	Analog Output High
4	GND
