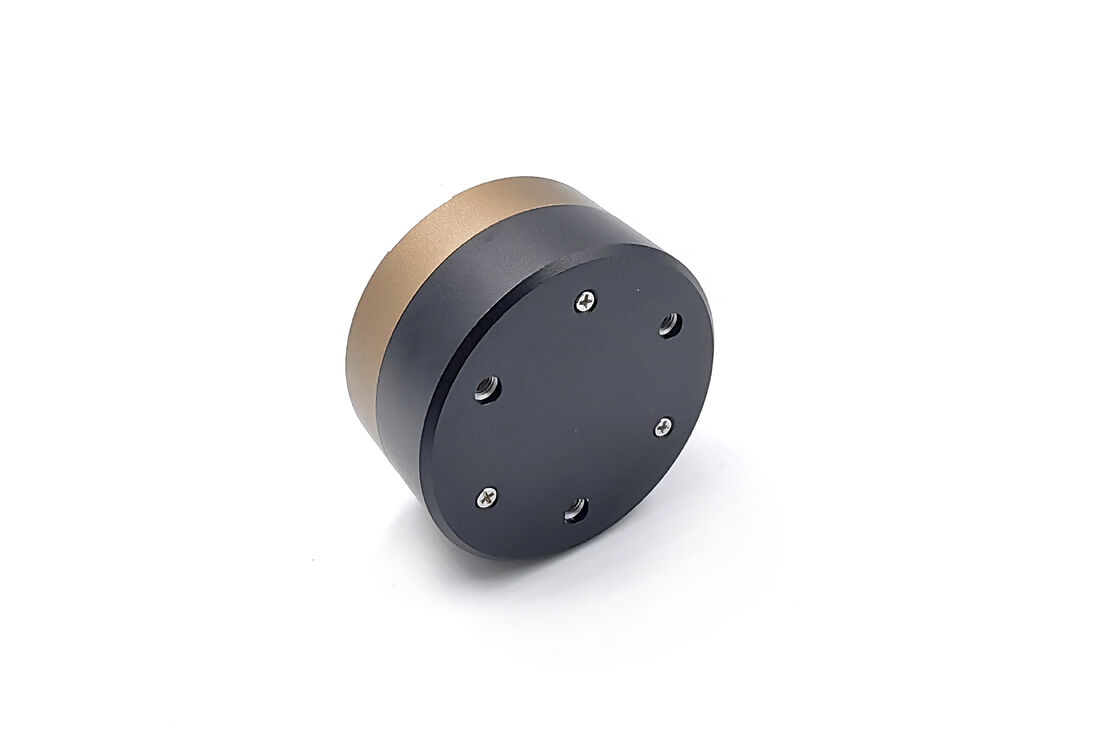

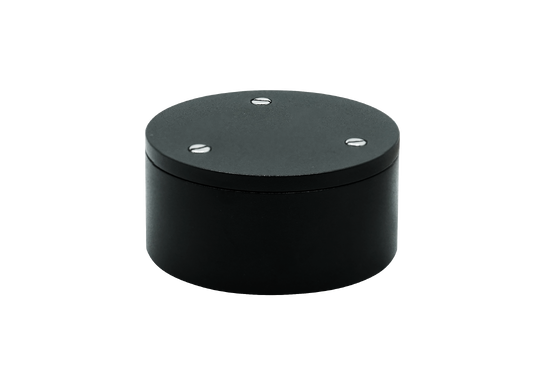

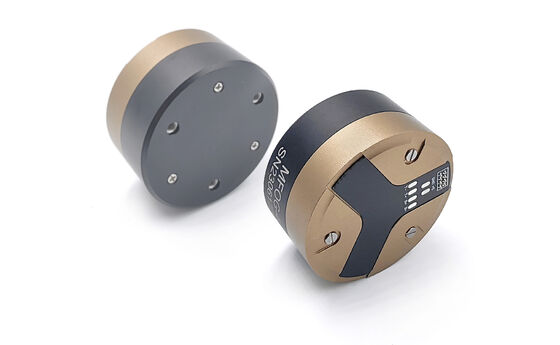

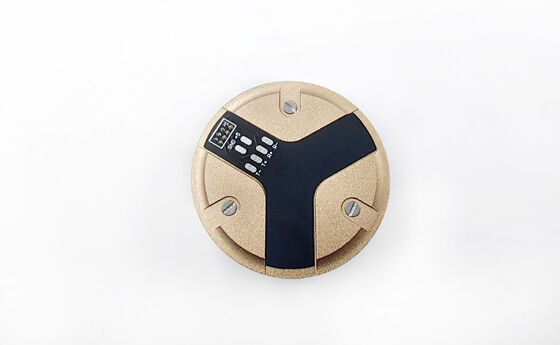

Precision Angular Rate Fiber Optic Gyroscope with Low Drift for Robotics System

Name: Precision Angular Rate Fiber Optic Gyroscope with Low Drift for Robotics System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 700 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	700$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Angular Rate:

±300°/s

Bias Stability:

≤0.8°/h

Zero Bias Repeatability:

≤0.8°/h

Random Walk Coefficient:

≤0.02°/√h

Supply Voltage:

+5V

Dimension:

φ40X20mm

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

Precision fiber optic gyroscope for robotics

Low drift fiber optic gyro

Angular rate gyroscope for robotics

Product Description

Precision Angular Rate Fiber Optic Gyroscope with Low Drift for Robotics System

Competitive Comparison: MFOG-40 vs Fizoptika VG1703

Parameter	MFOG-40	Fizoptika VG1703
Measurement Range	±300°/s	±130°/s / ±150°/s / ±300°/s
Zero Bias Stability	≤0.8°/h	≤1°/h
Angular Random Walk	≤0.02°/√h	0.008–0.02°/√h
Bias Repeatability	≤0.8°/h	≤1°/h
Scale Factor Nonlinearity	≤500 ppm	≤500 ppm
Bandwidth	≥300 Hz	up to 1 kHz
Power Consumption	≤1.5W	0.25–0.5W
Size	φ40*20 mm	φ40*12–19 mm
Weight	≤40g	18–35g
Operating Temp	-40 ~ +70°C	-40 ~ +70°C
Vibration	20g	up to 30g

Product Overview

The MFOG-40 Micro-Nano Fiber Optic Gyroscope (FOG) is a high-performance angular rate sensor based on the Sagnac effect, designed for precise motion sensing and attitude control applications.

By integrating advanced micro-nano fiber optic technology, optical path modules, and signal processing circuits, the MFOG-40 delivers high accuracy, low drift, and excellent stability in a compact and lightweight form factor.

With no moving parts, this fiber optic gyroscope ensures long lifespan, high reliability, and maintenance-free operation, making it ideal for inertial navigation systems (INS), UAVs, robotics, and industrial automation.

Technical Specifications

Parameter	Specification
Measurement Range	±300°/s
Scale Factor	3600 LSB/(°/s)
Scale Factor Nonlinearity	≤500 ppm
Zero Bias Stability (10s, 1σ)	≤0.8°/h
Zero Bias Repeatability	≤0.8°/h
Angular Random Walk	≤0.02°/√h
Bias Stability (Full Temp)	≤1.5°/h
Bandwidth	≥300 Hz
Power Supply	5V ±0.15V
Power Consumption	≤1.5W

Applications

Inertial Navigation Systems (INS)
UAV Flight Control & Stabilization
Robotics & Autonomous Systems
Antenna Stabilization Platforms
Industrial Motion Control
Marine & Land Navigation
Electro-Optical Tracking Systems
