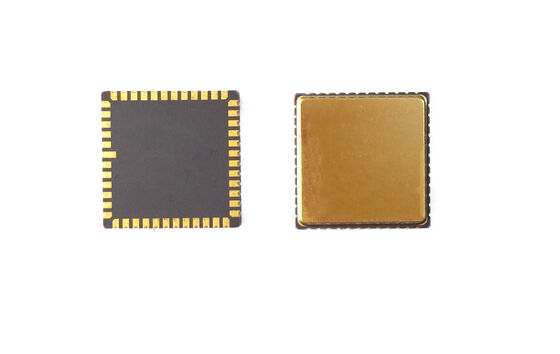

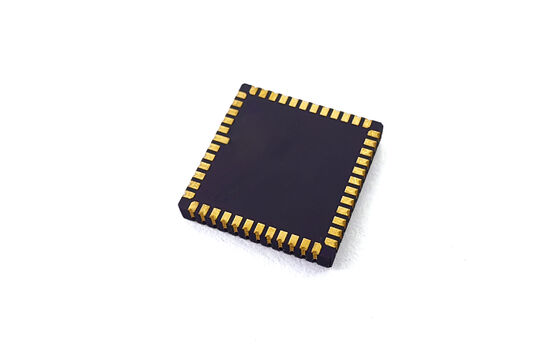

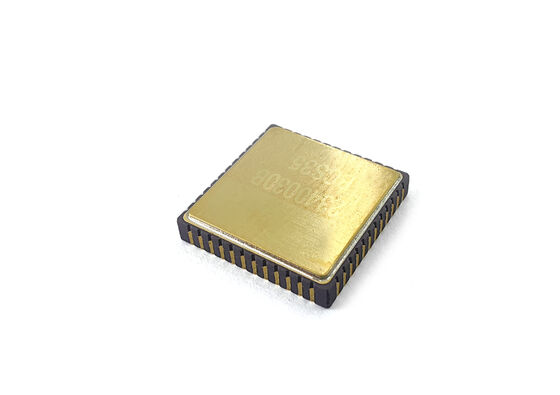

MEMS Gyroscope Chip Angular Rate Sensor with 0.05deg/h Bias 400deg/s Measuring Range and SPI Digital Output

MEMS Gyroscope Chip Angular Rate Sensor with 0.05deg/h Bias 400deg/s Measuring Range and SPI Digital Output

MEMS Gyroscope Chip Angular Rate Sensor with 0.05deg/h Bias 400deg/s Measuring Range and SPI Digital Output

Brand Name: Firepower
Model Number: MGZ332HC-P1
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Measuring Range:
400°/s
Bias Stability (Allan):
<0.05°/h
Bias Stability (1s 10s):
<0.5°/h
Angular Random Walk:
<0.025°/√h
Bandwidth (-3dB):
90Hz
Output Accuracy:
24bit SPI
Output Rate (ODR):
12K Hz
Scale Factor:
20000 Lsb/deg/s
Noise (Peak To Peak):
<0.15°/s
Operating Temperature:
-40°C ~ +85°C
Packaging Details:
sponge+box
Supply Ability:
500/month
Highlight:

MGZ332HC-P1 MEMS Gyro Chip

,

Ultra High Precision Gyroscope

,

0.05deg/h Bias Angular Rate Sensor

Product Description
MEMS Gyroscope Chip Ultra High Precision Angular Rate Sensor

The MGZ332HC-P1 is a high-performance MEMS gyroscope chip delivering accurate and stable angular rate measurement for navigation and control systems. Featuring low noise, low drift, and excellent environmental adaptability, it is suitable for UAV flight control, inertial navigation, and industrial automation applications.

Ultra-high precision MEMS gyroscope chip with best-in-class <0.05deg/h bias stability and <0.025deg/sqrt-h angular random walk. Optimized for precision navigation systems, platform stabilization, and instrumentation applications demanding the highest accuracy.

Key Features
  • 400°/s measuring range with SPI digital output
  • <0.05°/h bias stability (Allan variance)
  • <0.025°/√h angular random walk
  • 90Hz bandwidth with 24-bit resolution
  • Operates from -40°C to +85°C with full temperature compensation
  • Withstands 500g impact and 18g RMS vibration
Technical Specifications
Parameter Unit MGZ332HC-P1
Measuring Range deg/s 400°/s
Bandwidth (-3dB, customizable) Hz 90Hz
Output Accuracy (Digital SPI) bits 24
Output Rate ODR (customizable) Hz 12K
Delay (customizable) ms <3ms
Bias Stability (Allan variance) deg/h (1-sigma) <0.05°/h
Bias Stability (1-sigma, 10s) deg/h (1-sigma) <0.5°/h
Angular Random Walk (ARW) deg/sqrt-h <0.025°/√h
Scale Factor at 25°C lsb/deg/s 20000 lsb/deg/s
Scale Factor Repeatability (1-sigma) ppm (1-sigma) <100ppm
Scale Factor vs Temperature (1-sigma) ppm (1-sigma) <300ppm
Scale Factor Nonlinearity (1-sigma) ppm <300ppm
Noise (Peak to Peak) deg/s <0.15°/s
G-Value Sensitivity deg/h/g <3
Power-On Time (Valid Data) s 750m
Sensor Resonant Frequency Hz 10.5k-13.5K
Impact (Powered On) 500g, 1ms
Impact Resistance (Powered Off) 10000g, 10ms
Vibration (Powered On) 18g RMS (20Hz-2kHz)
Operating Temperature -40°C ~ +85°C
Storage Temperature -55°C ~ +125°C
Supply Voltage 5 +/- 0.25V
Current Consumption 45mA
Applications
  • UAV drone flight control and attitude stabilization
  • Inertial navigation systems and AHRS
  • Industrial automation and robotics motion sensing
  • Platform stabilization and antenna tracking
  • Precision surveying and georeferencing
  • Automotive vehicle dynamics and ADAS testing
Packing & Shipping

The MGZ332HC-P1 MEMS gyroscope chip is packaged in anti-static ESD-safe packaging within an export-grade carton box. Firepower brand, made in China. Minimum order quantity 1 piece, sample delivery within 7 days. Bulk supply capacity 500 pieces per month. Payment terms T/T. For price inquiry or to request samples, please contact us.
