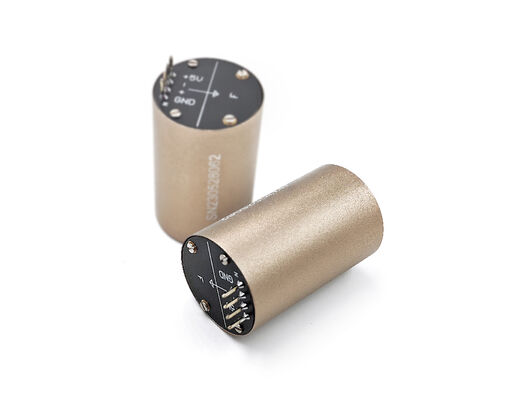

High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems

Name: High Precision Single Axis Fiber Optic Gyro with 0.008 Degree per Hour Bias for Tactical Navigation Systems
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG091-H
Price: 1,500.00 USD
Availability: InStock

Brand Name:	WNRLN
Model Number:	MFOG091-H
MOQ:	1 Piece
Price:	USD 1200-1800 / Piece
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	300 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE, RoHS

Gyro Type:

High Precision Closed Loop FOG

Number Of Axes:

1 Axis

Bias Stability:

0.008 Deg/h (1 Sigma)

Bias Repeatability:

0.008 Deg/h (1 Sigma)

Scale Factor Nonlinearity:

≤ 30 Ppm

Measurement Range:

± 300 Deg/s

Random Walk:

0.001 Deg/√h

Bandwidth:

≥ 200 Hz

Operating Temperature:

-40°C To +70°C

Interface:

RS422

Power Supply:

±5V DC

Power Consumption:

≤ 4.5W

Weight:

≤ 380g

Dimensions:

Φ55mm X 38mm

Storage Temperature:

-55°C To +85°C

MTBF:

≥ 60,000 Hours

Packaging Details:

WNRLN branded protective case with shock-proof foam insert, export-grade corrugated carton

Supply Ability:

300 Pieces per Month

Highlight:

0.008 Degree per Hour Bias Fiber Optic Gyro

High Precision Closed Loop Navigation Sensor Module

Tactical Navigation Systems Tactical Grade Gyro

Product Description

High Precision Fiber Optic Gyro MFOG091-H

The MFOG091-H is the high precision variant featuring 0.008 deg/h bias stability achieved through upgraded optical coil winding and advanced digital signal processing. Purpose-built for tactical navigation systems requiring superior drift performance.

Key Features

Enhanced Bias Stability: 0.008 deg/h (1 sigma) with premium optical coil and precision electronics.
Improved Scale Factor: Nonlinearity ≤ 30 ppm for high-accuracy angular measurement.
Low Random Walk: 0.001 deg/√h minimizes short-term angle integration errors.
Extended MTBF: ≥ 60,000 hours with selected components for mission-critical reliability.
Temperature Compensated: Full-range calibration from -40°C to +70°C.

Applications

Tactical Inertial Navigation Systems (INS)
Stabilized Electro-Optical Payloads
Missile Mid-Course Guidance
Precision Geodetic Survey Equipment
Autonomous Underwater Vehicle Navigation

Contact our engineering team for detailed performance data and customization options.
