Compact Single Axis Fiber Optic Gyro with 0.05 deg/h Bias Stability and ≤ 180g Weight for UAV Navigation

Name: Compact Single Axis Fiber Optic Gyro with 0.05 deg/h Bias Stability and ≤ 180g Weight for UAV Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG091-C
Price: 500.00 USD
Availability: InStock

Brand Name:	WNRLN
Model Number:	MFOG091-C
MOQ:	1 Piece
Price:	USD 400-600 / Piece
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	800 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE, RoHS

Gyro Type:

Compact Closed Loop FOG

Number Of Axes:

1 Axis

Bias Stability:

0.05 Deg/h (1 Sigma)

Bias Repeatability:

0.05 Deg/h (1 Sigma)

Scale Factor Nonlinearity:

≤ 100 Ppm

Measurement Range:

± 500 Deg/s

Random Walk:

0.005 Deg/√h

Bandwidth:

≥ 150 Hz

Operating Temperature:

-40°C To +70°C

Interface:

RS232 / TTL UART

Power Supply:

5V DC

Power Consumption:

≤ 2W

Weight:

≤ 180g

Dimensions:

Φ35mm X 25mm

Storage Temperature:

-55°C To +85°C

MTBF:

≥ 30,000 Hours

Vibration Resistance:

20-2000 Hz, 6.06g RMS

Packaging Details:

WNRLN branded protective case with shock-proof foam insert, export-grade corrugated carton

Supply Ability:

800 Pieces per Month

Highlight:

0.05 deg/h bias stability Fiber Optic Gyro

≤ 180g weight FOG Sensor

RS232 / TTL UART interface Gyroscope Module

Product Description

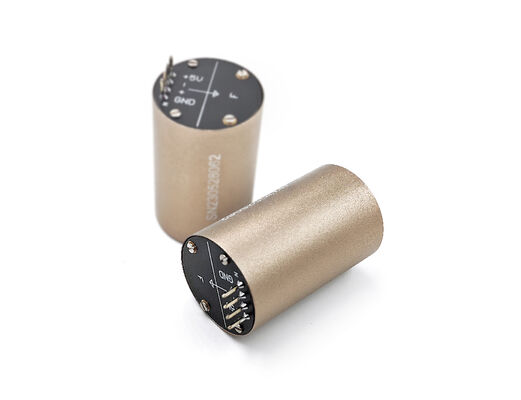

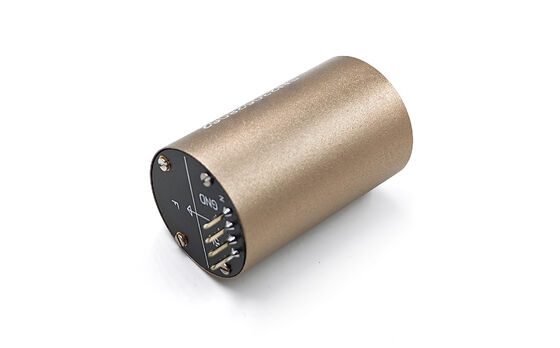

Compact Fiber Optic Gyro MFOG091-C

The MFOG091-C is the compact SWaP-optimized variant weighing under 200g with a Φ35mm x 25mm footprint. Delivers 0.05 deg/h bias stability in a miniature form factor purpose-built for UAV, drone, and portable navigation platforms.

Key Features

Ultra-Compact: Φ35mm x 25mm dimensions and ≤ 180g weight for the most constrained installations.
Low Power: ≤ 2W from a single 5V DC supply, ideal for battery-powered systems.
Fast Integration: RS232 and TTL UART interfaces for plug-and-play connection to popular flight controllers.
Rugged Design: Vibration resistant up to 6.06g RMS for reliable field operation in UAV environments.
Wide Range: ±500 deg/s covers aggressive maneuvering of small aerial platforms.

Applications

Small and Medium UAV Navigation
Drone Gimbal Stabilization
Precision Agriculture UAVs
Autonomous Delivery Drones
Portable Survey Equipment

Bulk order discounts available for UAV fleet operators. Contact us today.
