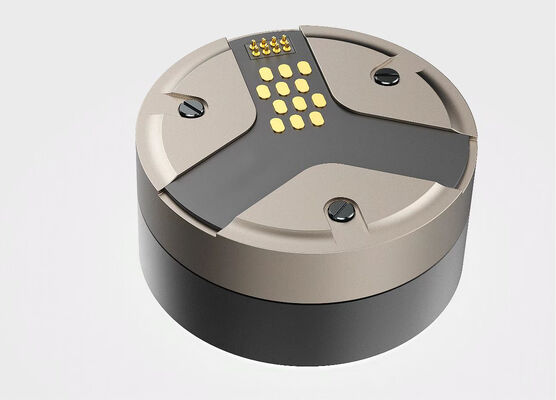

Miniature Fiber Optic Gyro MFOG40-C with 0.15 deg/h Bias Stability Ultra Compact Φ28mm x 20mm and Fast Warm-Up ≤ 3 seconds

Name: Miniature Fiber Optic Gyro MFOG40-C with 0.15 deg/h Bias Stability Ultra Compact Φ28mm x 20mm and Fast Warm-Up ≤ 3 seconds
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG40-C
Price: 115.00 USD
Availability: InStock

Brand Name:	WNRLN
Model Number:	MFOG40-C
MOQ:	10 Pieces
Price:	USD 80-150 / Piece
Payment Terms:	T/T, L/C, PayPal, Western Union
Supply Ability:	5000 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Certification:

ISO 9001:2015, CE, RoHS

Gyro Type:

Miniature Entry-Level FOG

Number Of Axes:

1 Axis

Bias Stability:

0.15 Deg/h (1 Sigma)

Bias Repeatability:

0.15 Deg/h (1 Sigma)

Scale Factor Nonlinearity:

≤ 300 Ppm

Measurement Range:

± 600 Deg/s

Random Walk:

0.02 Deg/√h

Bandwidth:

≥ 80 Hz

Operating Temperature:

-10°C To +55°C

Interface:

RS232 / UART TTL

Power Supply:

3.3V-5V DC

Power Consumption:

≤ 1.5W

Weight:

≤ 120g

Dimensions:

Φ28mm X 20mm

Storage Temperature:

-30°C To +70°C

MTBF:

≥ 20,000 Hours

Warm-Up Time:

≤ 3 Seconds

Packaging Details:

WNRLN branded protective case with shock-proof foam insert, export-grade corrugated carton

Supply Ability:

5000 Pieces per Month

Highlight:

0.15 deg/h bias stability Fiber Optic Gyro

Ultra Compact Φ28mm x 20mm Angular Rate Sensor

Fast Warm-Up ≤ 3 seconds FOG

Product Description

Miniature Fiber Optic Gyro MFOG40-C

The MFOG40-C is the ultra-compact entry-level FOG achieving 0.15 deg/h bias stability in a miniature Φ28mm x 20mm package weighing just 120g. Optimized for high-volume embedded applications where size, cost, and solid-state reliability are the driving requirements.

Key Features

Ultra-Compact: Φ28mm x 20mm is the smallest form factor in the MFOG40 series for tight embedded integrations.
Cost-Optimized: Entry-level pricing with minimum order quantity of 10 pcs, ideal for prototyping and volume deployment.
Wide Voltage Range: 3.3V-5V DC input compatible with common embedded system power rails.
Fast Warm-Up: ≤ 3 seconds to operational readiness for quick-start applications.
High Volume Capacity: 5000 units per month supply ability for large-scale OEM programs.

Applications

Consumer Drone Stabilization
IoT Orientation Sensing
Robotics Education and Research
Smart Agriculture Equipment
Motion-Controlled Camera Gimbals

Ideal for startups and academic research programs. Contact us for evaluation kit pricing and technical support.
