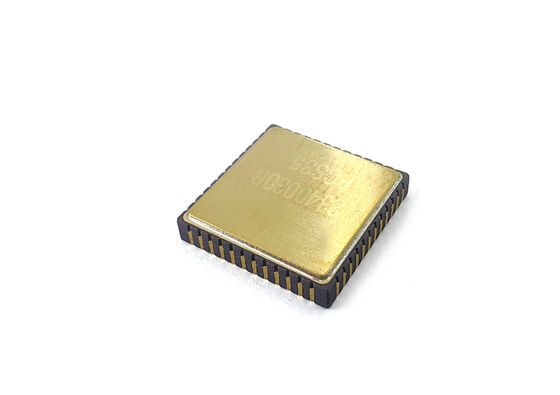

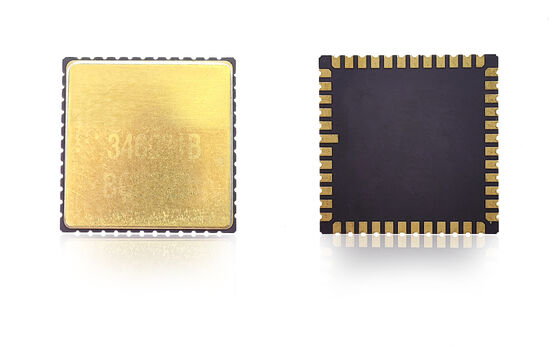

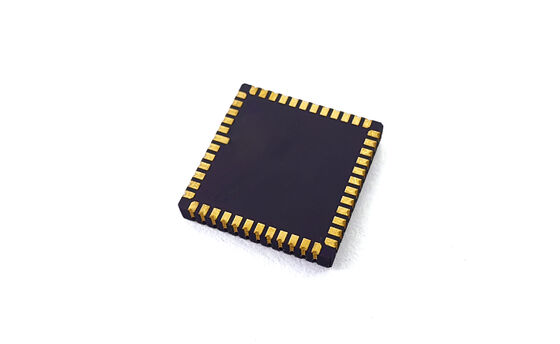

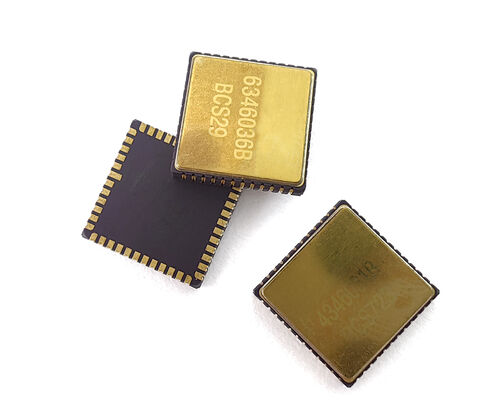

MEMS Gyroscope Chip with 0.03deg/hr Bias Stability 150Hz Bandwidth and 24-bit SPI Output for Robotics AGV Navigation

Name: MEMS Gyroscope Chip with 0.03deg/hr Bias Stability 150Hz Bandwidth and 24-bit SPI Output for Robotics AGV Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ150HC-P3
Price: 10000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MGZ150HC-P3
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Band Width:

150Hz

Bias Stability:

<0.03°/h

Angular Random Walk:

<0.01°/√h

Supply Voltage:

5±0.25V

Output Accuracy:

24 Bits

Measuring Range:

150 Deg/s

Packaging Details:

Anti-static sponge with ESD protective box, export-grade carton

Supply Ability:

500 Pieces per Month

Highlight:

0.03deg/hr Bias MEMS Gyro Chip

Balanced Precision Angular Sensor

AGV Navigation Firepower Gyroscope

Product Description

MEMS Gyroscope Chip 0.03deg/hr Bias 150Hz BW SPI for Robotics AGV Navigation

Firepower MGZ150HC-P3 Balanced Precision MEMS Gyroscope Chip

Product Overview

The MGZ150HC-P3 is a balanced precision MEMS gyroscope chip designed for applications requiring an optimal trade-off between measurement range and bias stability. With 150°/s angular rate range, 150Hz bandwidth, and industry-leading <0.03°/h bias stability, this sensor delivers reliable and drift-free performance for AGV navigation, mobile robot localization, and industrial automation. The 24-bit SPI digital output at 12kHz ODR ensures high-resolution, low-latency data for real-time inertial navigation.

Technical Specifications

Performance	Unit	MGZ150HC-P3
Range	deg/s	150
Band Width @3DB	Hz	150
Output accuracy (digital SPI)	bits	24
Output rate (ODR)	Hz	12K
Delay	ms	<2
Bias stability	deg/hr(1σ)	<0.03
Bias stability (1σ 10s)	deg/hr(1σ)	<0.3
Bias error over temperature (1σ)	deg/hr(1σ)	<5
Scale factor at 25°C	lsb/deg/s	40000
Scale factor repeatability (1σ)	ppm(1σ)	<20
Scale factor vs temperature (1σ)	ppm(1σ)	<100
Scale factor non-linearity (1σ)	ppm	<100
Angular random walk (ARW)	°/√h	<0.01
Noise (Peak to Peak)	deg/s	<0.06
G Value sensitivity	°/hr/g	<1

Environmental Suitability

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 18g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 45mA
Power-on time (valid data): 750ms

Target Applications

Automated Guided Vehicle (AGV) inertial navigation
Autonomous Mobile Robot (AMR) localization and mapping
Precision platform leveling and stabilization
Pipeline inspection robot attitude measurement
Industrial motion control and condition monitoring

Key Advantages

Compact MEMS design with low power consumption for easy system integration
24-bit high-resolution digital SPI output with customizable ODR up to 12kHz
Excellent shock and vibration resistance for harsh environment operation
Factory calibrated with temperature compensation across full operating range
OEM customization available for specific bandwidth, range, and interface requirements
