Navigation MEMS Gyro Chip 0.008deg/hr Bias 0.002deg-rt-hr ARW for North Finding INS

Name: Navigation MEMS Gyro Chip 0.008deg/hr Bias 0.002deg-rt-hr ARW for North Finding INS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MGZ050HC-N1
Price: 10000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MGZ050HC-N1
MOQ:	1 Piece
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	200 Pieces per Month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Band Width:

30Hz

Bias Stability:

<0.008°/h

Angular Random Walk:

<0.002°/√h

Supply Voltage:

5±0.25V

Output Accuracy:

24 Bits

Measuring Range:

50 Deg/s

Packaging Details:

Anti-static sponge with ESD protective box, export-grade carton with individual calibration certificate

Supply Ability:

200 Pieces per Month

Highlight:

Navigation Grade MEMS Gyro 0.008deg/hr

North Finding Gyroscope Chip ARW

Precision INS Firepower Angular Sensor

Product Description

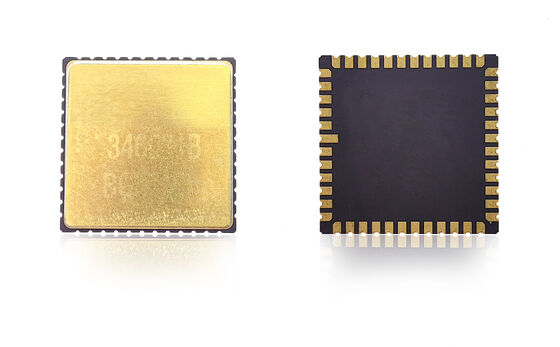

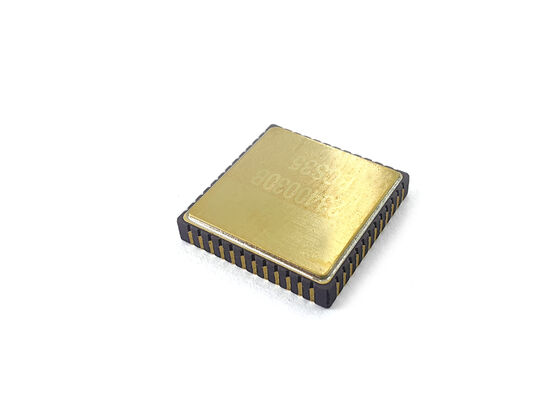

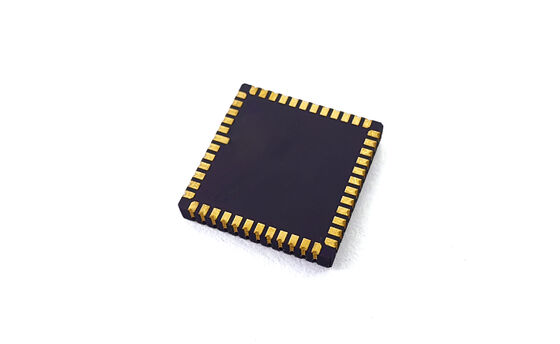

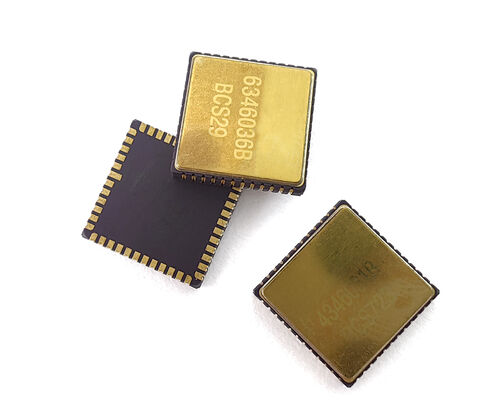

Firepower MGZ050HC-N1 Navigation-Grade MEMS Gyroscope Chip

Product Overview

The MGZ050HC-N1 represents the highest precision tier of Firepower MEMS gyroscope technology, achieving navigation-grade performance with <0.008°/h bias stability and <0.002°/√h angular random walk. Designed specifically for ultra-precision applications, this sensor operates with a 50°/s range and 30Hz bandwidth optimized for low-frequency precision measurement. The 24-bit SPI digital output ensures maximum resolution for gyrocompass north-finding, precision inertial navigation systems (INS), and geophysical surveying. Each unit is individually calibrated with a traceable performance certificate.

Technical Specifications

Performance	Unit	MGZ050HC-N1
Range	deg/s	50
Band Width @3DB	Hz	30
Output accuracy (digital SPI)	bits	24
Output rate (ODR)	Hz	12K
Delay	ms	<10
Bias stability	deg/hr(1σ)	<0.008
Bias stability (1σ 10s)	deg/hr(1σ)	<0.05
Bias error over temperature (1σ)	deg/hr(1σ)	<3
Scale factor at 25°C	lsb/deg/s	200000
Scale factor repeatability (1σ)	ppm(1σ)	<20
Scale factor vs temperature (1σ)	ppm(1σ)	<50
Scale factor non-linearity (1σ)	ppm	<50
Angular random walk (ARW)	°/√h	<0.002
Noise (Peak to Peak)	deg/s	<0.008
G Value sensitivity	°/hr/g	<0.5

Environmental Suitability

Impact (power on): 500g, 1ms
Impact resistance (power off): 10000g, 10ms
Vibration (power on): 15g rms (20Hz to 2kHz)
Working temperature: -40°C to +85°C
Store temperature: -55°C to +125°C
Supply voltage: 5±0.25V
Current consumption: 50mA
Power-on time (valid data): 2s (precision mode)
Individual calibration certificate with Allan Variance plot

Target Applications

Gyrocompass north-finding and azimuth determination
Precision inertial navigation systems (INS) for land and marine
Underground pipeline and utility surveying and mapping
Geophysical borehole instrumentation and mining surveying
Defense stabilization and targeting platforms

Key Advantages

Compact MEMS design with low power consumption for easy system integration
24-bit high-resolution digital SPI output with customizable ODR up to 12kHz
Excellent shock and vibration resistance for harsh environment operation
Factory calibrated with temperature compensation across full operating range
OEM customization available for specific bandwidth, range, and interface requirements
