| Product Name | Single Axis Turntable |
|---|---|
| Load Capacity | 15kg |
| Table Facet Diameter | Ø200mm |
| Table Facet Flatness | 0.01mm |
| Inclination Rotary Accuracy | ±3'' |
| Load Capacity | 5kg |
|---|---|
| Test Size | Ø256mm |
| Rotary Angle Range | Continuous Infinite |
| Machine Body Weight | Appr 70kg |
| Computer Port | RS232 |
| Load Capacity | 30kg |
|---|---|
| Test Size | Ø380mm |
| Flatness | 0.01~0.05mm |
| Table Facet Jerk Value | 0.01~0.05mm |
| Rotary Angle Range | 360 Degree |
| Load Capacity | 50kg |
|---|---|
| Test Size | 420 X 200mm |
| Flatness | 0.01mm |
| Table Facet Jerk Value | 0.03mm |
| Wobble Error | ±2'' |
| Product Name | 2 Axis Rate Position Simulator Test Bench |
|---|---|
| Load Capacity | 30kg |
| Test Object Size | 360 X 200mm |
| Table Facet Diameter | Ø400mm |
| Wobble Error | ±2'' |
| System Name | Single Axis Turntable |
|---|---|
| Load Capacity | 5kg |
| Table Facet Size | Ø256mm |
| Machine Body Weight | Appr 70kg |
| Computer Port | RS232 |
| Product Name | 1 Axis Turntable |
|---|---|
| Load Capacity | 20kg |
| Table Facet Size | Ø400mm |
| Table Facet Flatness | 0.01mm |
| Inclination Rotary Accuracy | ±3’’ |

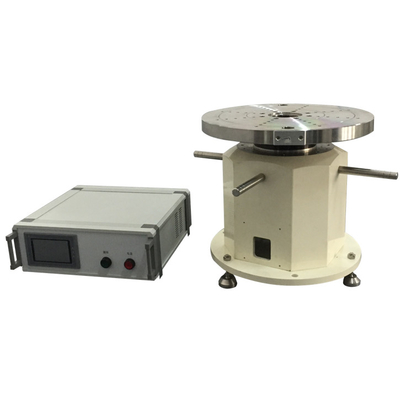

| System Name | Single Axis Motion Simulator |
|---|---|
| Functions | Position Rate Swing |
| Table Size | φ320mm |
| Table Material | Stainless Steel |
| Load Ability | 10~30kg |
| System Name | Angular Motion Simulator |
|---|---|
| Load Capacity | 15kg |
| Measured Object Volume | 200 X 200 X 200mm |
| Table Facet Size | Ø300mm |
| Working Mode | Position, Rate |
| Product Name | 1 Axis Rate Test Turntable |
|---|---|
| Turntable Load | Not More Than 30 Kg |
| Load Surface Size | Not Less Than Ø 300mm |
| Installation | Direct Connected |
| Position Accuracy | ± 3 ″ (optional) |
