| Product Name | UUT Type Turntable |
|---|---|
| Load Diameter | 500 Mm × 500 Mm |
| Erpendicularity Of Three Axes | ± 6 ″ |
| Angular Rate Range | Roll ± 0.001 °/s ~ 400 °/s |
| Angular Rate Accuracy | 5 × 10-5 |
| System Name | Triaxial Position Rate Motion Simulator |
|---|---|
| Load Capacity | 8.5kg |
| Object Size | 353mm X 164mm X 216mm |
| Three Axis Intersection | Ø0.5mm Radius Ball |
| Axis Perpendicularity | <±30’’ |
| Product Name | UUT Type Turntable |
|---|---|
| Load Diameter | 450 Mm × 450 Mm |
| Erpendicularity Of Three Axes | ± 5 ″ |
| Angular Rate Range | Roll ± 0.001 °/s ~ 400 °/s |
| Angular Rate Accuracy | 5 × 10-5 |
| Product Name | UUT Type Turntable |
|---|---|
| Load Diameter | 500 Mm × 500 Mm |
| Erpendicularity Of Three Axes | ± 5 ″ |
| Angular Rate Range | Roll ± 0.001 °/s ~ 400 °/s |
| Angular Rate Accuracy | 5 × 10-5 |

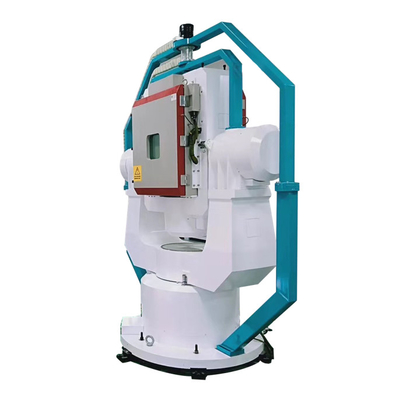

| Product Name | Calibration Simulator |
|---|---|
| Load Weight | Not Less Than 30 Kg; |
| Load Size | 500 Mm × 500 Mm |
| Structure | UUT |
| Three-axis Intersection | Within 0.25mm Radius Ball |
| Product Name | Calibration Simulator |
|---|---|
| (1) Load Weight | Not Less Than 10 Kg; |
| (7) Three-axis Position Accuracy | ± 8'' |
| Table Facet Flatness | 0.02mm |
| Total Weight | 550 Kg |
| Product Name | Calibration Simulator |
|---|---|
| (1) Load Weight | Not Less Than 10 Kg; |
| (7) Three-axis Position Accuracy | ± 10'' |
| Table Facet Flatness | 0.02mm |
| Total Weight | 650 Kg |
| Product Name | Motion Simulator UOO Type |
|---|---|
| (1) Load Weight | Not Less Than 10 Kg; |
| (7) Three-axis Position Accuracy | ± 10'' |
| Table Facet Flatness | 0.02mm |
| Total Weight | 650 Kg |
| Load Capacity | 20kg |
|---|---|
| Max Measured Object Size | 220mm X 220mm X 280mm |
| Wobble | Inner/outer Frame: ±4’’ Mid Frame: ±6’’ |
| Perpendicularity | Mid-inner Frame ±5’’ Mid-outer Ring ±5’’ |
| Table Body Weight | About 800kg |
| Load Capacity | 170kg |
|---|---|
| Max Measured Object Size | 1100mm X 700mm X 767mm |
| Wobble | <±10'' |
| Perpendicularity | <±10'' |
| Orthogonality | 1mm |
