products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

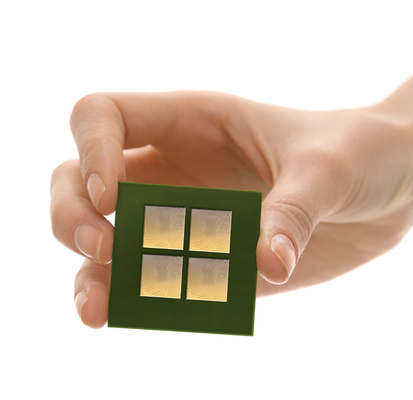

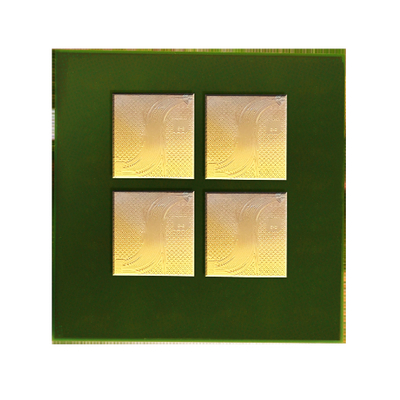

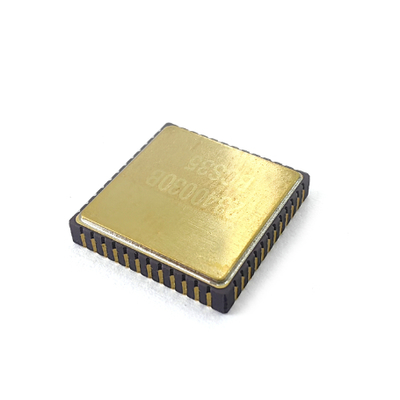

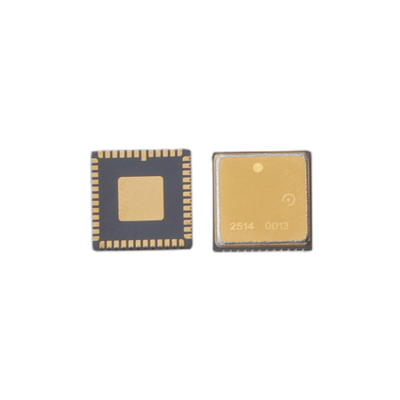

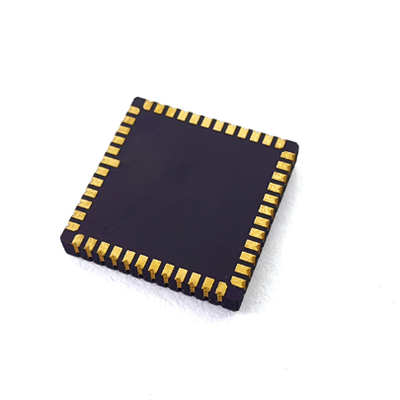

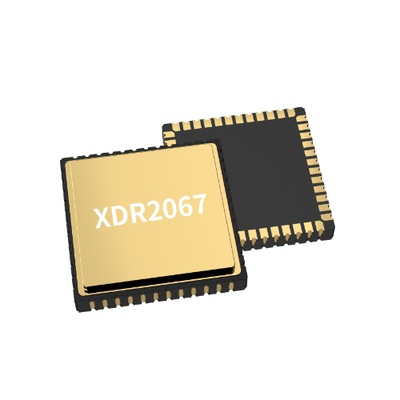

Low Drift High-Performance FOG Rate Sensor with Customized MEMS Gyro Chip

Name

Low Drift High-Performance FOG Rate Sensor with Customized MEMS Gyro Chip

Brand Name: Firepower
Model Number: MGC150-P05
MOQ: 1
Price: negotiable
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Product Name:
MEMS Gyroscope Chip
Range:
150deg/s
Band Width:
>30Hz
Scale Factor:
11185 Lsb/deg/s
Bias @ 25℃:
15dph
Bias Stability (10 S Smoothing):
0.5dph
Packaging Details:
sponge+box
Supply Ability:
500/month
Highlight:

Low Drift FOG Rate Sensor

,

High-Performance FOG Rate Sensor

Product Description
Low Drift High-Performance FOG Rate Sensor with Customized MEMS Gyro Chip
Key Features
  • Customized MEMS gyroscope chip for precise measurements
  • Low drift performance for stable readings
  • High-performance rate sensing capabilities
  • Optimized for industrial and manufacturing applications
Product Specifications
Attribute Value
Product Name MEMS Gyroscope Chip
Range 150deg/s
Band Width >30Hz
Scale Factor 11185 lsb/deg/s
Bias @ 25℃ 15dph
Bias Stability (10 s smoothing) 0.5dph
Technical Specifications
Parameter MGC150 - P05 MGC500 - P1 MGC500 - P2 MGC500 - P3 Unit
Range ±150 ±500 ±500 ±500 dps
Bias @ 25°C 15 45 45 45 dph
Noise @ 10Hz 0.001 0.0012 0.0012 0.0012 mdps/√Hz
Bias Stability (10 s smoothing) 0.5 1.0 2.0 3.0 dph
Angle Random Walk 0.06 0.08 0.08 0.08 °/√h
Bias Repeatability (Weekly) 2 2 2 2 dph
Scale Factor 38550 11185 11185 11185 LSB/dps
Scale Factor Repeatability (Weekly) 30 30 30 30 ppm
Non-linearity @ Full Scale (FS) 100 100 100 100 ppm
Non-linearity @ 200 dps 50 50 50 50 ppm
Bandwidth 30 ≥100 ≥100 ≥100 Hz
G-Sensitivity 2 3 3 3 dph/g
Vibration Rectification Coefficient @ 6.06 grms 0.4 0.3 0.3 0.3 dph/g²
Vibration Reliability (Power-on) 4000g, 0.5ms 4000g, 0.5ms 4000g, 0.5ms 4000g, 0.5ms -
