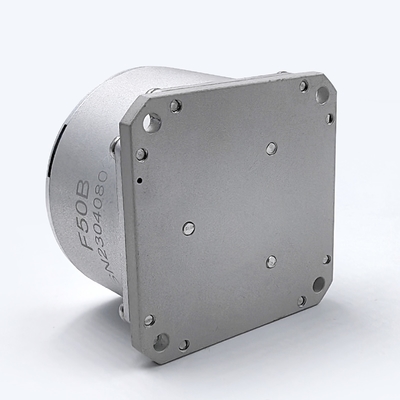

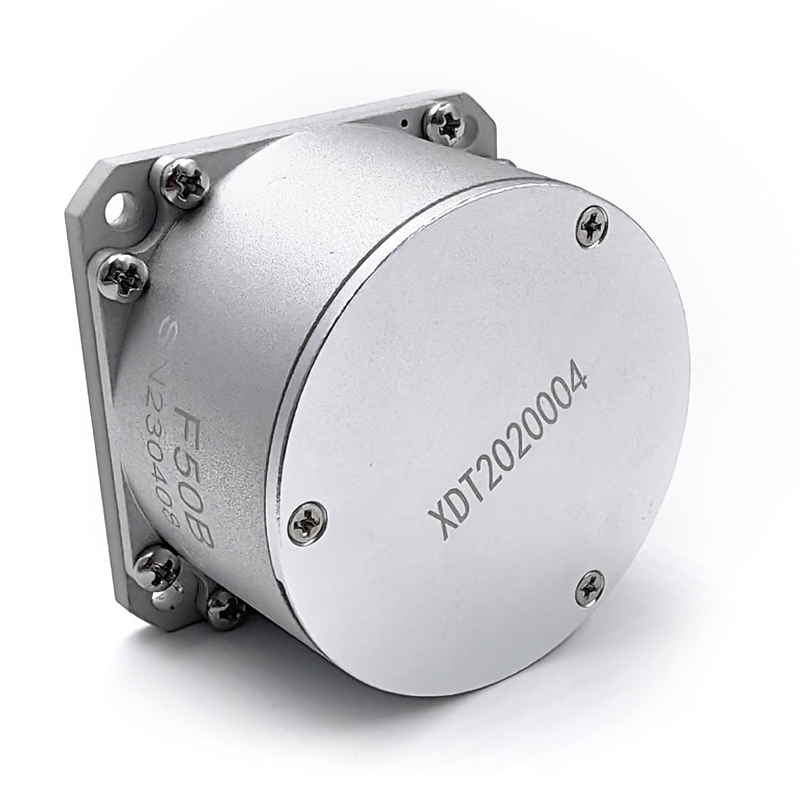

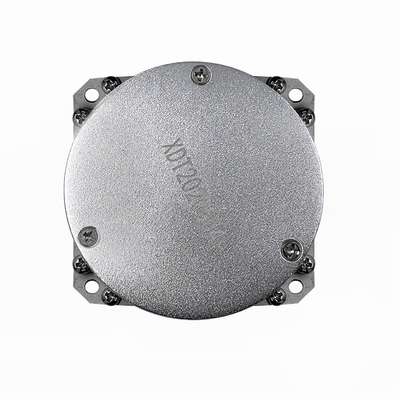

Low Price FOG Close-loop Fiber Optic Gyroscope With Small Volume

Brand Name:	Firepower
Model Number:	F50B
MOQ:	1 PCS
Price:	US$2,800.00~3,000.00
Payment Terms:	L/C, T/T
Supply Ability:	100 PCS per month

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

Measuring Range:

-500~+500°/s

Zero Bias Stability:

≤0.1°/h, 10s

Zero Bias Repeatability:

≤0.1°/h

Random Walk Coefficient:

≤0.01°/√h

Scale Factor Nonlinearity:

≤40ppm

Scale Factor Repeatability:

≤40ppm

Scale Factor Asymmetry:

≤40ppm

Start Time:

≤1s

Bandwidth:

500Hz

Power Supply:

±5±0.15V

Power:

≤6W

Operating Temperature:

-40~+70°C

Storage Temperature:

-55~+85°C

Vibration:

20~2000Hz, 0.06g²/Hz

Impact:

30g, 11ms

Baud Rate:

921600(Customizable)bps

Output Mode:

RS-422

Connector:

J30J-15TJL/(Customizable)

Overall Dimesions:

50mm*50mm*32mm

Installation Dimensions:

43mm*43mm

Packaging Details:

Sponge and box

Supply Ability:

100 PCS per month

Highlight:

Close-loop Fiber Optic Gyroscope

Small Volume Fiber Optic Gyroscope

Low Price Fiber Optic Gyroscope

Product Description

1.1 Product Review
This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular rate of the carrier along the sensitive axis of the product. The angular rate sensing unit of the product is an optical fiber ring, a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and counterclockwise propagation light caused by the external physical angular rate, which is sensed by the optical fiber ring, and meanwhile, a voltage signal converted from an optical path difference signal is subjected to closed-loop feedback and control, so that the modulation and demodulation of the signal are realized, and the purpose of angular rate signal detection is achieved.

1.2 Function
This product is composed of an optical angular velocity sensing unit and a signal detection unit, providing single-axis angular increment information and internal temperature information.
1.3 Application
The products are mainly suitable for applications such as medium-precision inertial navigation systems, positioning and orientation systems, and servo stabilization systems.

The product is mainly composed of the following components:
a) optical path components;
b) Detection and control signal circuit board;
c) Optical fiber ring skeleton, shell and other structural parts;
1.3 Size
Overall dimension (mm): 50 ± 0.1 × 50 ± 0.1 × 36 ± 0.1 (L × W × H);
Installation dimension (mm): 41 X 41, 4 M3 screws

Size

Electrical Interface

Pin number	Definition	Explain
1,9	T+	Serial port output RS422 +
2,10	T-	Serial port output RS422-
4,5	+5VA	Analog supply + 5V
6,7	AGND	Analog power ground
8,15	-5VA	Analog power supply -5V
12,13	VCC	Digital supply + 5/+ 3.3V
11,14	GND	Digital power ground
