Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer

Name: Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Price:	1350$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300(°/s

Zero-bias Stability( (10s, 1σ):

≤0.5°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥300Hz

Zero-bias Repeatability( (1σ):

≤0.5°/h

Scale Factor Nonlinearity:

≤500ppm

Dimension:

φ40X20mm

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

Miniature fiber optic gyroscope sensor

Micro-nano FOG VG091

Fizoptika gyroscope with warranty

Product Description

Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor

Technical Specifications

Attribute	Value
Range	±300°/s
Zero-bias stability (10s, 1σ)	≤0.5°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥300Hz
Zero-bias repeatability (1σ)	≤0.5°/h
Scale factor nonlinearity	≤500ppm
Dimension	φ40×20mm
Power Consumption	≤1.5W

Product Overview

The MFOG-091A Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor that integrates advanced photonics, precision mechanics, and embedded electronics. Utilizing the Sagnac effect with integrated micro-nano fiber devices, it detects, processes, and provides feedback on phase differences from counter-propagating light beams for real-time inertial measurement.

Key Components

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell, and structural components

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power supply (V)	5 ± 0.15
Power Consumption (W)	≤0.7
Dimension (mm)	φ24×51.6

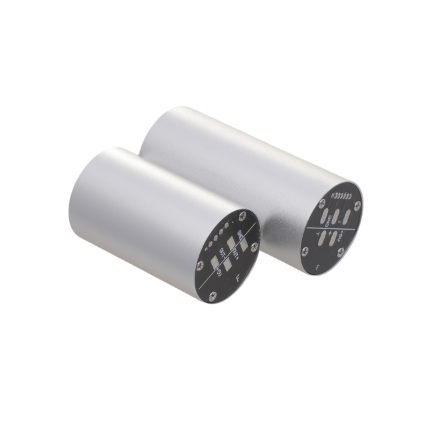

Product Diagrams
