Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer

Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer

Brand Name: Firepower
Model Number: MFOG-091A
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Place of Origin:
China
Range:
±300(°/s
Zero-bias Stability( (10s, 1σ):
≤0.5°/h
Angular Random Walk:
≤0.02°/h
3dB Bandwidth:
≥300Hz
Zero-bias Repeatability( (1σ):
≤0.5°/h
Scale Factor Nonlinearity:
≤500ppm
Dimension:
φ40X20mm
Power Consumption:
≤1.5W
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description
Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor
Key Specifications
Attribute Value
Range ±300°/s
Zero-bias stability (10s, 1σ) ≤0.5°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥300Hz
Zero-bias repeatability (1σ) ≤0.5°/h
Scale factor nonlinearity ≤500ppm
Dimension φ40×20mm
Power Consumption ≤1.5W
Product Overview

The MFOG-091A Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor that integrates advanced photonics, precision mechanics, and embedded electronics. Utilizing the Sagnac effect, this system employs integrated micro-nano fiber devices to detect, process, and feedback phase differences generated by counter-propagating light beams for real-time inertial measurement.

Key Components
  • Optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton, shell and structural components
Performance Parameters
Parameter Specification
Range (°/s) ±300
Scale factor 7±0.7mv/o/s
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤2
Zero-bias repeatability (1σ, °/H) ≤2
Angular random walk (°/H 1/2) ≤0.04
Zero bias (°/s) ≤0.05
Bandwidth 3dB Band Width (Hz) ≥450
Power supply (V) 5±0.15
Power Consumption (W) ≤0.7
Dimension (mm) φ24×51.6

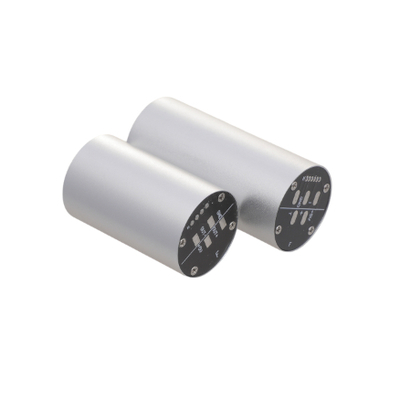

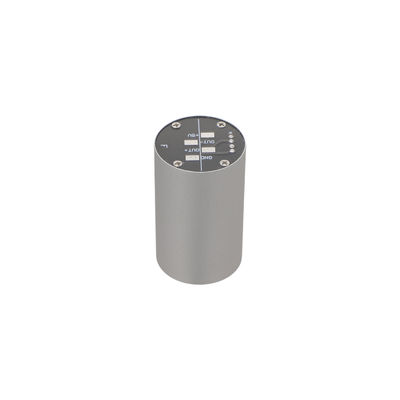

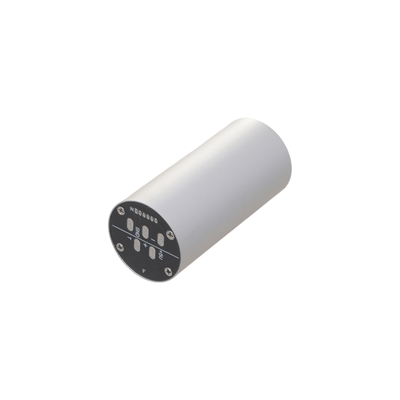

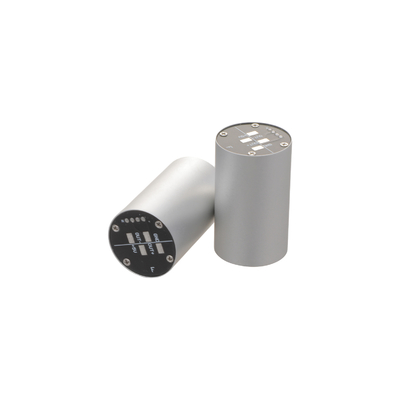

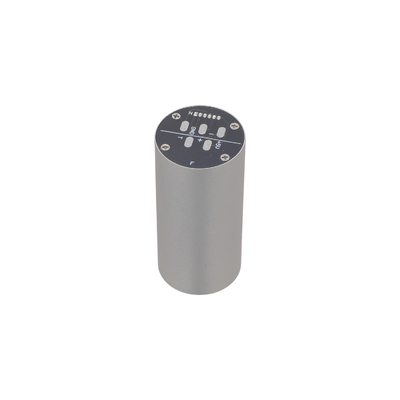

Product Diagrams
Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer 0 Miniature Micro-Nano Fiber Optic Gyroscope Fizoptika VG091 FOG Sensor Manufacturer 1
