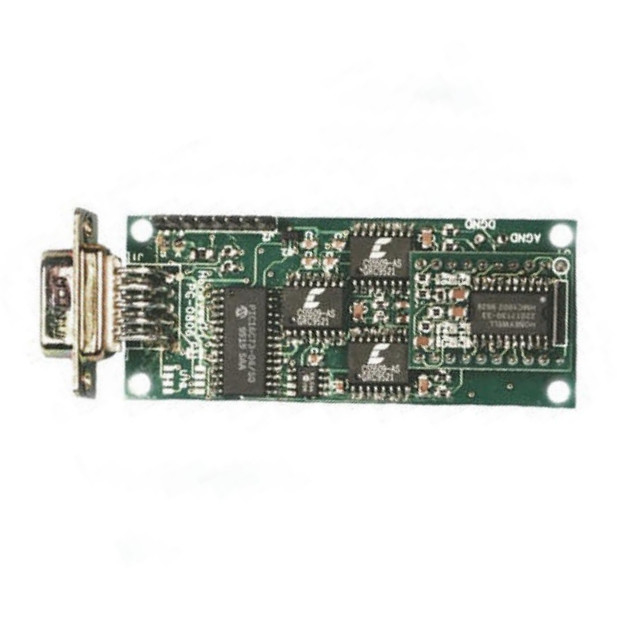

Yaw Angle 3 Axis Magnetic Sensor , Replace Honeywell Hmr2300 Magnetometer Sensor

Yaw Angle 3 Axis Magnetic Sensor , Replace Honeywell Hmr2300 Magnetometer Sensor

Yaw Angle 3 Axis Magnetic Sensor , Replace Honeywell Hmr2300 Magnetometer Sensor

Brand Name:	Firepower
Model Number:	CMR2300
MOQ:	1
Price:	1300~1500
Payment Terms:	L/C,T/T
Supply Ability:	100 per month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

+/-2 Gauss

Resolution:

67 M Gauss

Hysterisis Error:

0.01%FS

Gain Error:

0.05%FS

Offset Error:

0.01%FS

Weight:

98g

Packaging Details:

box

Supply Ability:

100 per month

Highlight:

MAGNOMETER 3 Axis Magnetic Sensor

,

3 Axis Magnetometer Sensor

,

Honeywell Hmr2300 Magnetometer Sensor

Product Description

3 AXIS YAW ANGLE MAGNETIC SENSOR PRICESE MAGNOMETER REPLACE HONEYWELL HMR2300

Specification

Characteristics	Conditions	Min	Typ	Max	Units
Power Supply
Supply voltage	Pin 9 referenced to Pin 5(Ground)	6.5		15	Volts
Supply Current	Vsupply = 15V. With S/R= On		27	35	mA
Temperature
Operating	Ambient	-40		+85	℃
Storage	Ambient, Unbiased	-55		125	℃
Magnetc Fleld
Range	Full Scale (FS), Total Field Applied	-2		+2	gauss
Resolution	Applied Field to Change Output	67			micro-gauss
Accuracy	RSS of all errors@+25℃ ±1 gauss ±2 gauss		0.01 1	0.52 2	%FS %FS
Lneariby Error	Best fit straight line@+25℃ ±1 gauss ±2 gauss		0.1 1	0.5 2	%FS %FS
Hysterisis Error	3 Sweeps Across ±2gauss@+25°℃		0.01	0.02	%FS
Repeatability Error	3 Sweeps Across+2gauss@+25°C		0.05	0.10	%FS
Gain Enror	Applied Field for Zero Reading		0.05	0.10	%FS
Offset Ermor	Applied Field for Zero Reading		0.01	0.03	%FS
Temperature Effect	Coefficient of Gain		-600 ±114		ppm/"C
Power Supply Efiect	From+6 to +15V with 1 gauss Applied Field		150		ppm/V
Mechanical
Weight	PCB Only PCB and Non-Flanged Enclosure PCB and Flanged Enclosure		28 94 98		grams
Vibration	Operating 5 to 10Hz for 2 Hours 10Hz to 2kHz for 30 Minutes		10 2.0		mm g

PCB dimension and PINOUT

Yaw Angle 3 Axis Magnetic Sensor , Replace Honeywell Hmr2300 Magnetometer Sensor 0

▶ MAIN FEATURE

• High Accuracy Over ±1 gauss, <0.5% Full Scale

• Range of ±2 gauss, <70 µgauss Resolution

• Three Axis (X, Y, Z) Digital Outputs

• 10 to 154 Samples Per Second, Selectable

• RS-232 or RS-485 Serial Data Interfaces

• PCB or Aluminum Enclosure Options

• 6-15 volt DC Unregulated Power Supply Interface
