HMR2300 Digital Magnetometer To Detect Strength Direction Of Incident Magnetic Field

1
MOQ
1300~1500
Price
HMR2300 Digital Magnetometer To Detect Strength Direction Of Incident Magnetic Field
Features Gallery Product Description Request A Quote
Features
Specifications
Range: +/-2 Gauss
Resolution: 67 M Gauss
Hysterisis Error: 0.01%FS
Gain Error: 0.05%FS
Offset Error: 0.01%FS
Weight: 98g
High Light:

HMR2300 Digital Magnetometer

,

Digital Magnetometer

,

Analog Magnetometer Sensor

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CMR2300 pcb
Payment & Shipping Terms
Packaging Details: box
Delivery Time: 4 weeks
Payment Terms: L/C, T/T
Supply Ability: 100 per month
Product Description

HMR2300 Analog Product Digital Magnetometer To Detect The Strength And Direction Of An Incident Magnetic Field​

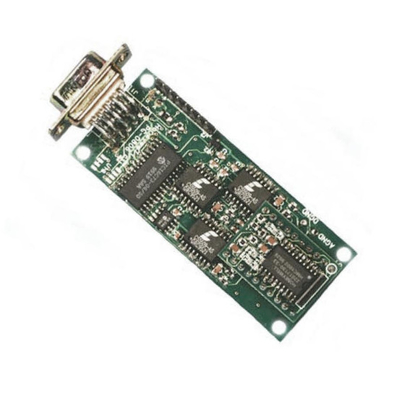

The AVIC CMR2300 is a three-axis smart digital magnetometer to detect the strength and direction of an incident magnetic field. The three of AVIC’s magneto-resistive sensors are oriented in orthogonal directions to measure the X, Y and Z vector components of a magnetic field. These sensor outputs are converted to 16-bit digital values using an internal delta-sigma A/D converter. An onboard EEPROM stores the magnetometer’s configuration for consistent operation. The data output is serial full-duplex RS-232 or half-duplex RS-485 with 9600 or 19,200 data rates. A RS-232 development kit version is available that includes a windows compatible demo program, interface cable, AC adapter, and carrying case.



▶ MAIN FEATURE

• High Accuracy Over ±1 gauss, <0.5% Full Scale

• Range of ±2 gauss, <70 µgauss Resolution

• Three Axis (X, Y, Z) Digital Outputs

• 10 to 154 Samples Per Second, Selectable

• RS-232 or RS-485 Serial Data Interfaces

• PCB or Aluminum Enclosure Options

• 6-15 volt DC Unregulated Power Supply Interface



▶ APPLICATION • Attitude Reference

• Compassing & Navigation

• Traffic and Vehicle Detection

• Anomaly Detection

• Laboratory Instrumentation

• Security System



Specification

Characteristics Conditions Min Typ Max Units
Power Supply
Supply voltage Pin 9 referenced to Pin 5(Ground) 6.5   15 Volts
Supply Current Vsupply = 15V. With S/R= On   27 35 mA
Temperature
Operating Ambient -40   +85
Storage Ambient, Unbiased -55   125
Magnetc Fleld
Range Full Scale (FS), Total Field Applied -2   +2 gauss
Resolution Applied Field to Change Output 67     micro-gauss
Accuracy RSS of all errors@+25℃
±1 gauss
±2 gauss

0.01
1

0.52
2

%FS
%FS
Lneariby Error Best fit straight line@+25℃
±1 gauss
±2 gauss

0.1
1

0.5
2

%FS
%FS
Hysterisis Error 3 Sweeps Across ±2gauss@+25°℃   0.01 0.02 %FS
Repeatability Error 3 Sweeps Across+2gauss@+25°C   0.05 0.10 %FS
Gain Enror Applied Field for Zero Reading   0.05 0.10 %FS
Offset Ermor Applied Field for Zero Reading   0.01 0.03 %FS
Temperature
Effect
Coefficient of Gain   -600
±114
  ppm/"C
Power Supply Efiect From+6 to +15V with 1 gauss Applied Field   150   ppm/V
Mechanical
Weight PCB Only
PCB and Non-Flanged Enclosure
PCB and Flanged Enclosure
  28
94
98
  grams
Vibration Operating
5 to 10Hz for 2 Hours
10Hz to 2kHz for 30 Minutes

10
2.0

mm
g

PCB dimension and PINOUT

HMR2300 Digital Magnetometer To Detect Strength Direction Of Incident Magnetic Field 0



ORDERING INFORMATIOIN Ordering number :

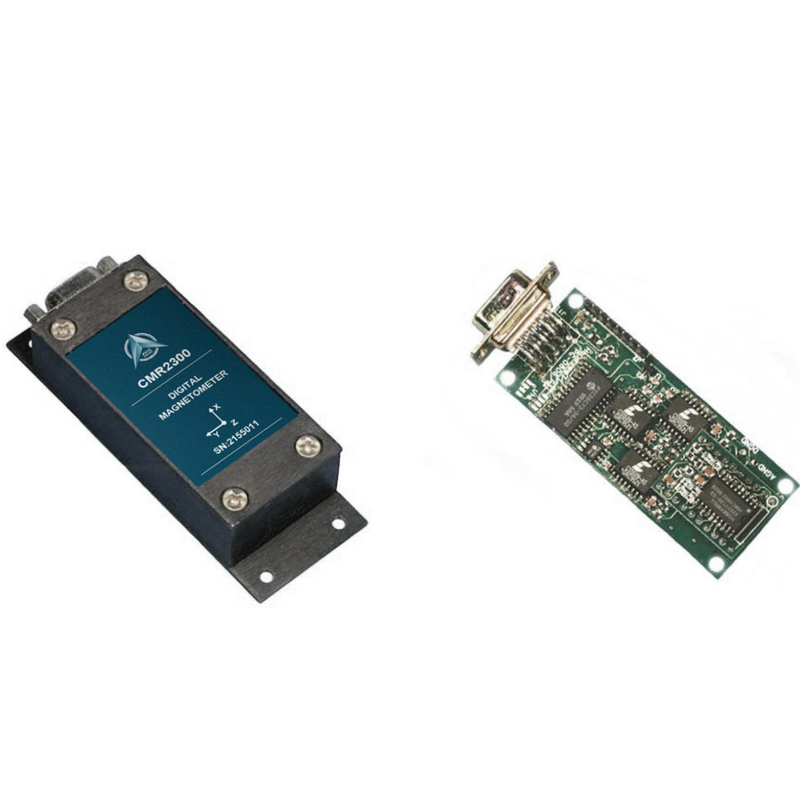

Products CMR2300-D00-232 :PCB Only (No Enclosure), RS-232 I/O

CMR2300-D00-485 :PCB Only (No Enclosure), RS-485 I/O

CMR2300-D20-232 :Flush-Base Enclosure, RS-232 I/O

CMR2300-D20-485 :Flush-Base Enclosure, RS-485 I/O

CMR2300-D21-232 :Extended-Base Enclosure, RS-232 I/O

CMR2300-D21-485 :Extended-Base Enclosure, RS-485 I/O

CMR2300-D20-232-DEMO :Demo Kit, Flush-Base Enclosure, RS-232 I/O

CMR2300-D21-232-DEMO :Demo Kit, Extended-Base Enclosure, RS-232 I/
