Angular Rate Measurement Gyro for Robot Motion Control

Name: Angular Rate Measurement Gyro for Robot Motion Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	1350
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

Measuring Range:

350°/s

Scale Factor:

6±0.6mV/°/s

Zero Bias Stability:

≤1°/h, 10s, 1σ

Zero Bias Repeatability:

≤1°/h, 1σ

Power Supply:

5±0.25V

Power Consumption:

Packaging Details:

Sponge%Box

Supply Ability:

100

Highlight:

20kg Single Axis Position Turntable

Temperature Chamber Single Axis Position Turntable

Product Description

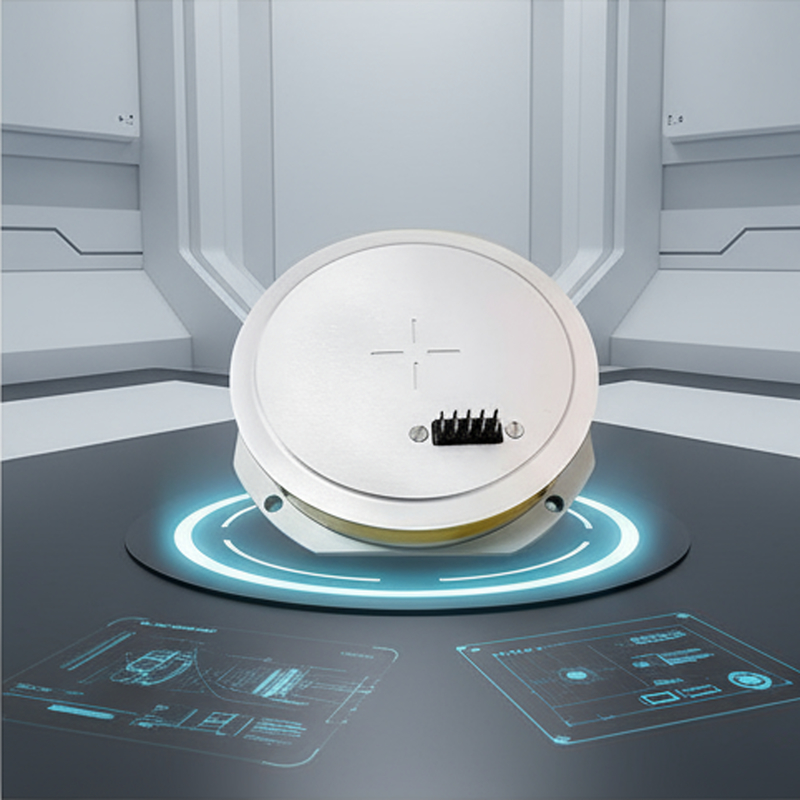

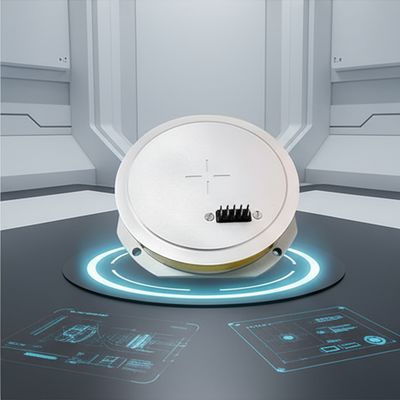

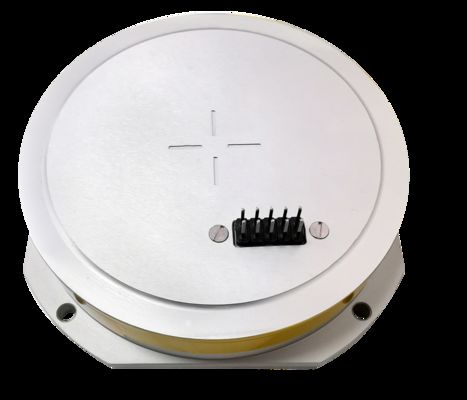

MFOG-103 Micro-Nano Fiber Optic Gyroscope

Angular Rate Measurement for Robot Motion Control

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple design with no moving or wear parts. It offers fast startup, compact size, and lightweight construction, making it ideal for carrier attitude control and measurement applications.

Technical Specifications

Parameter	Specification
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years)	≥15
MTBF	≥100000

Manufacturer Profile

We are a high-tech enterprise specializing in the research, development, and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, we possess China's leading production capabilities for inertial navigation and communication products. Our proprietary array algorithm forms the core technology for our inertial navigation product line, providing carriers with precise position, 3D attitude, and speed information for autonomous navigation applications.

Company Advantages

Our Services

Packaging & Shipping

Frequently Asked Questions

Q: What is your lead time?

A: Stock items ship in 5-15 days. Custom orders require 15-30 days after sample confirmation. Contact us for exact lead times based on order quantity.

Q: How does your factory handle quality control?

A: We maintain strict quality control throughout production, adhering to technical specifications, conducting comprehensive testing, and employing a dedicated QA/QC team.

Q: Do you accept OEM or ODM orders?

A: Yes, we provide both OEM and ODM services tailored to customer requirements.

Q: What are your delivery terms?

A: We support EXW, FOB, CIF, and other terms based on customer preference.

Q: What payment methods do you accept?

A: We accept TT, L/C, Pay Later, Western Union, and Online Bank Payments.

Q: What is your warranty policy?

A: Standard warranty is 12 months, with negotiable extensions available.

Q: How are products packaged?

A: Samples ship in carton boxes with protective foam, while bulk orders use wooden crates.

Q: How are prices determined?

A: Standard products follow listed prices, while customized solutions require quotation based on specifications and quantity.

Q: How should I select a product?

A: Choose from our standard catalog, specify technical requirements, or consult our sales team for application-specific recommendations.
