Autonomous Underwater Vehicle MEMS Inertial Navigation System with RS422 Output

Name: Autonomous Underwater Vehicle MEMS Inertial Navigation System with RS422 Output
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS100E
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS100E
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Heading Accuracy（GNSS Valid ））:

0.1°

Attitude Accuracy:

0.1°

Positioning Accuracy:

1.5m；1cm+1ppm

Horizontal Velocity Accuracy:

0.1m/s

Gyroscope Zero Bias Stability:

4°/h

Accelerometer Zero Bias Stability:

0.2mg

Acc Range:

±16g

Voltage:

9~36VDC

Packaging Details:

wooden box

Supply Ability:

1000pcs

Highlight:

Servo Tracking 3 Axis Turntable

3 Axis Turntable Position Limitation Protection

Product Description

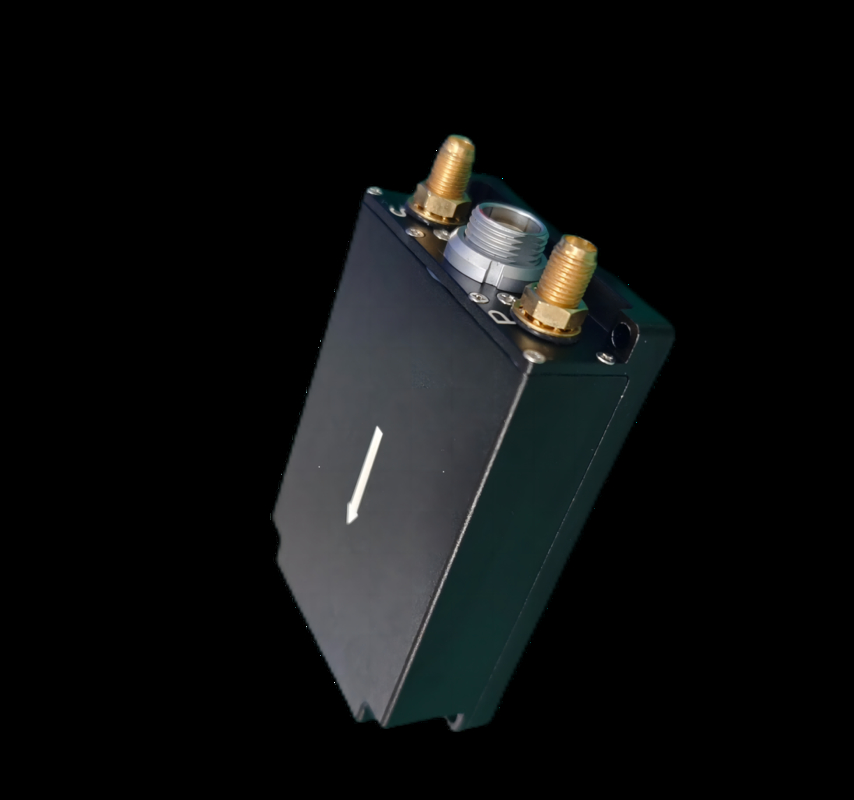

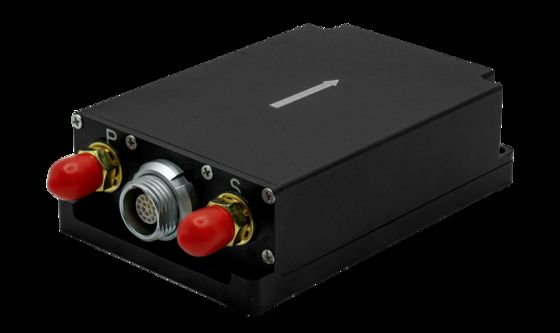

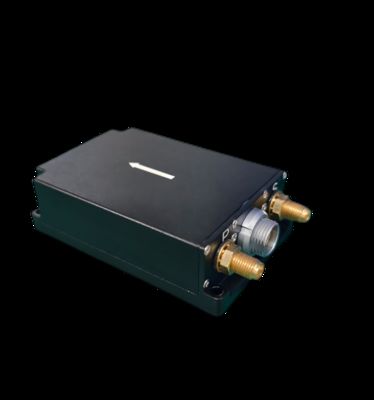

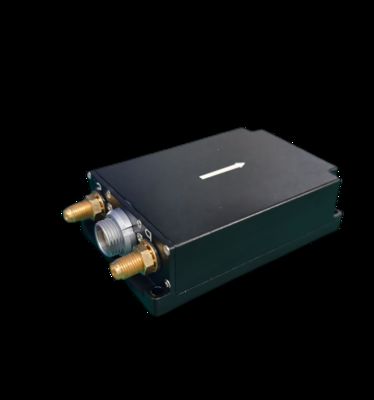

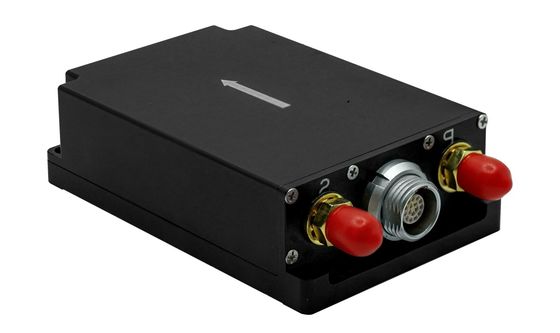

Autonomous Underwater Vehicle MEMS Inertial Navigation System with RS422 Output

The INS100E combines a high-performance MEMS gyroscope and accelerometer with built-in GNSS data reception. Featuring advanced multi-sensor fusion and integrated navigation algorithms, it delivers precise position, velocity, and attitude information. When GNSS signals are unavailable, the system maintains reliable short-term inertial navigation capability.

Key Features

High reliability and strong environmental adaptability
Stable operation under complex conditions
Flexible software configurations for diverse applications
Compact design with robust construction

Applications

Industrial unmanned platforms
Autonomous vehicles and unmanned surface vessels
Communication-on-the-move systems
Mapping, surveying, and stabilized platforms

Performance Specifications

Parameter	Specification	Notes
Heading accuracy (GNSS valid)	0.1°
Heading holding (GNSS failure)	0.2°/min
Attitude accuracy (GNSS valid)	0.1°	Single-point L1/L2, RTK
Attitude holding (GNSS failure)	0.2°/min
Positioning accuracy (Horizontal, GNSS valid; RTK)	1.5m; 1cm+1ppm	Single point L1/L2; Differential
Elevation accuracy (GNSS valid; RTK)	2.5m; 2cm+1ppm	Single point L1/L2; Differential
Position holding (GNSS failure)	20m	Unlocked for 60s
Horizontal velocity accuracy (GNSS valid)	0.1m/s	Single-point L1/L2, RTK
Gyroscope measuring range	±500°/s
Gyroscope zero bias stability	4°/h	Allan variance
Accelerometer measuring range	±16g	Customizable to 200g
Accelerometer zero bias stability	0.2mg	Allan variance

Technical Specifications

Category	Specification
Satellite Board Cold Start	<30 seconds (open environment)
Satellite Board Hot Start	5 seconds (open environment)
Receiver Types	BDS B1I/B2I/B3I, GPS L1C/A/L2P(Y)/L2C/L5, GLONASS G1/G2, Galileo E1/E5a/E5b, QZSS L1/L2/L5
Communication Interfaces	RS232 (Route 2), RS422 (Route 1)
Voltage	9-36VDC
Power Consumption	≤3W
Ripple	100 mV P-P
Dimensions	80mm × 53mm × 23mm
Weight	≤150g
Operating Temperature	-40℃ to +60℃
Storage Temperature	-45℃ to +65℃
Vibration Resistance	20-2000Hz, 6.06g
Impact Resistance	30g, 11ms
Protection Rating	IP65
MTBF	30,000 hours
Service Life	>15 years
Continuous Operation	>24 hours

Note: Effective 2m baseline of dual antenna, or dynamic alignment of single antenna
