MEMS Inertial Measurement Unit with SPI&UART

Name: MEMS Inertial Measurement Unit with SPI&UART
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: M6-80
Price: 930 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	M6-80
MOQ:	1
Price:	930 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Measuring Range:

±600°/s

Gyro In-run Bias Instability:

2°/h

Gyro Angular Random Walk:

0.15°/√h

Accelerometer Measuring Range:

±16g

Operating Temperature Range:

-40~+105℃

Operating Voltage Range:

2.5V~5.5V

Packaging Details:

sponge+box

Supply Ability:

100/MONTH

Highlight:

Small Inertial Navigation Unit

MEMS Inertial Navigation Unit

MEMS INS With GPS Barometer

Product Description

Product Description

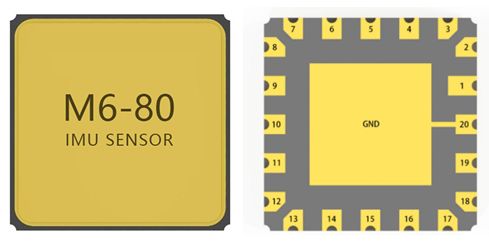

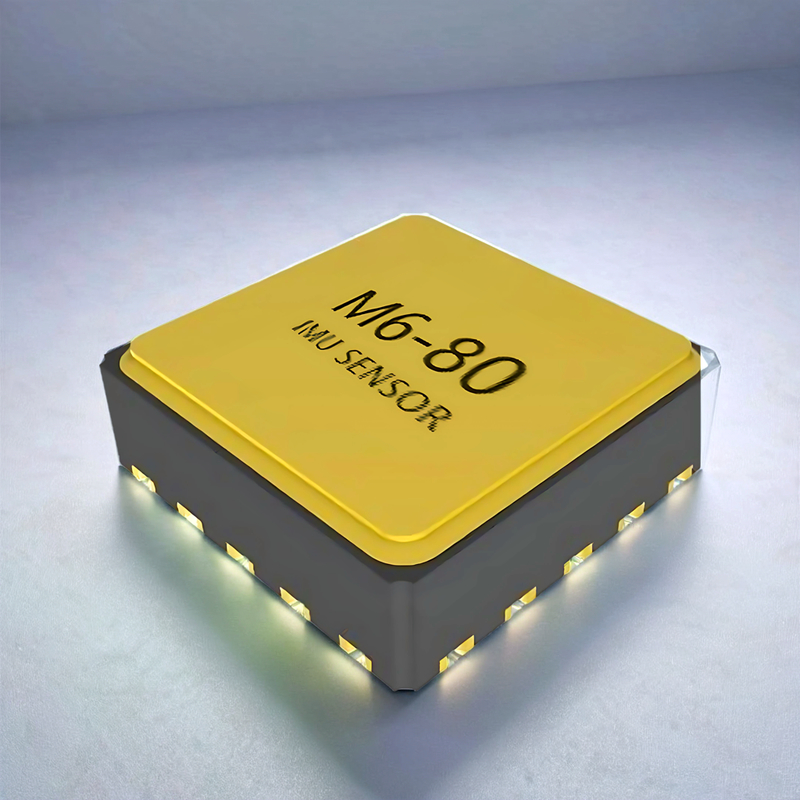

M6-80 Automotive 6-axis Motion-Tracking MEMS Device

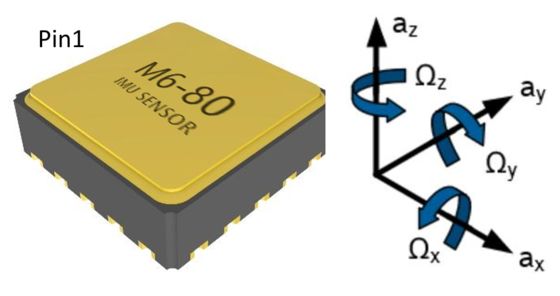

The M6-80 is a smart inertial measurement unit (IMU) that includes a tri-axis accelerometer, a tri-axis gyroscope and a mixed signal ASIC which provides angular rate and acceleration output via flexible Safe-SPI or UART interfaces with configurable band rate.

Key Features

• Triaxial, digital gyroscope, configurable dynamic range ±300°/s, ±600°/s or ±2000°/s
2°/hr in-run bias instability
0.15°/√hr angular random walk (TBD
• Triaxial, digital accelerometer, configurable dynamic range ±6g, ±16g or ±35g (TBD)
• Factory-calibrated sensitivity, bias, and axial alignment over full operating temperature range
• Safe-SPI &UART compatible digital interface
• On-chip temperature sensor
• Built in sophisticated self-diagnostic mechanism

Technical Specification

Parameters	Test Status	Min	Typ	Max	Unit
Range	Default	-	±300	-	°/s
	Configurable	-	±600	-	°/s
	Configurable	-	±2000	-	°/s
Resolution	±300°/s range	-	0.012	-	°/s
	±600°/s range	-	0.024	-	°/s
	±2000°/s range	-	0.083	-	°/s
Sensitivity	±300°/s range	-	83	-	LSB/°/s
	±600°/s range	-	42	-	LSB/°/s
	±2000°/s range	-	12	-	LSB/°/s
Overload range	±300°/s range	2000	-	-	°/s
Maximum recovery time after reaching the overload range	-	-	-	10	ms
Initial offset	Initial offset (@25℃)	0.15	-	0.15	°/s
Offset drift speed	At a gradient of 0.5 K/min	-0.1	-	0.1	°/s/min
	At a gradient of 5 K/min	-0.3	-	0.3	°/s/min
	Within the first 3 minutes after switching on	-0.1	-	0.1	°/s/min
Sensitivity error	±300°/s, -40℃~105℃	-0.15	-	0.15	%
Noise ( RMS )	15Hz filter	-	0.013	0.04	°/s
	60Hz filter	-	0.026	0.08	°/s
	100Hz filter	-	0.034	0.1	°/s
	300Hz filter	-	0.06	0.18	°/s
Cross-axis sensitivity	Axis to axis (-40°C, 25°C, 105℃)	-	-	0.13	%
G-sensitivity	Static ±1g	-0.04	-	0.04	°/s/g
BI@±300°/s	Allan Deviation (@25°C)	-	2	-	°/h
ARW@±300°/s	Allan Deviation (@25°C)	-	0.15	-	°/√h
Hysteresis	-40°C~105℃	-0.08	-	0.08	°/s
-3 dB Bandwidth	15Hz filter	-	15	-	Hz
	60Hz filter	-	60	-	Hz
	100Hz filter	-	100	-	Hz
	300Hz filter	-	300	-	Hz
Low pass filter order	At least	3	-	-
LPF delay	15Hz filter	-	-	34	ms
	60Hz filter	-	-	12	ms
	100Hz filter	-	-	6	ms
	300Hz filter	-	-	1	ms

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, was established in 2013 and registered in Shenzhen.

The company is high-tech enterprise dedicated to R&D and production of vibration acceleration sensors, MEMS gyro, IMU, INS, angle testing equipment and other products. The company has invested in and built multiple automated production lines in various locations such as Xi'an, Shenzhen, and Zhuhai. These production lines cover the manufacturing of MEMS gyro, MEMS inertial navigation systems, vibration acceleration sensors, communication products, and angle test equipment.

As an independent innovation-oriented high-tech enterprise, Firepower possesses China's leading production conditions for inertial navigation and communication products. The company always prioritizes scientific research and technological innovation, as well as self-reliance and control. It is committed to developing a series of autonomous navigation products with independent intellectual property rights, which are widely applied in the autonomous navigation perception fields of civilian vehicles and ships. With its self-developed array algorithm as the core technology, the company has developed a series of inertial navigation products that can provide users' carriers with key information such as current position, three-dimensional attitude, and speed, thereby achieving precise autonomous navigation control.

FAQ

Q: What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time based on your order quantities.
Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
Q: Do you accept OEM or ODM order?
A: Yes, we are professional manufacturer and we are capable for providing both OEM and ODM service by customer's needs.
Q: What are the terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q: What is the payment way?
A: TT, L/C, Pay later, West Union, Online Bank Payment.
Q: What is warranty?
A: Standardly 12 months and negotiable for longer warranty.
Q: What is the packing quality?
A: For sample order, we use carton box with sponge, and batch order, we use wooden box.
Q: What is final price?
A: For standard product, price is as in the price table; For customized product, price by checking with sales, so as to different quantity needs.
Q: How to choose product?
A: We are professional manufacturer, we could provide standard product on shelf, or products by customer's specific requirements:
1) Choose from MadeinChnia platform or website;
2) Customer raise some certain different technical requirements based on standard products;
3) Customer provide specific and comprehensive technical requirements to sales to evaluate;
4) Customer explain application to sales to provide suitable products.
