Three Axis Smart Digital Magnetometer for Incident Magnetic Field Strength Direction

1
MOQ
1300~1500
Price
Three Axis Smart Digital Magnetometer for Incident Magnetic Field Strength Direction
Features Gallery Product Description Request A Quote
Features
Specifications
Range: +/-2 Gauss
Resolution: 67 M Gauss
Hysterisis Error: 0.01%FS
Gain Error: 0.05%FS
Offset Error: 0.01%FS
Weight: 98g
High Light:

Smart Digital Magnetometer

,

Three Axis Digital Magnetometer

,

Incident Digital Magnetometer

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CMR2300
Payment & Shipping Terms
Packaging Details: box
Delivery Time: 4 weeks
Payment Terms: L/C, T/T
Supply Ability: 100 per month
Product Description

a three-axis smart digital magnetometer detect the strength and direction of an incident magnetic field



PRODUCTION

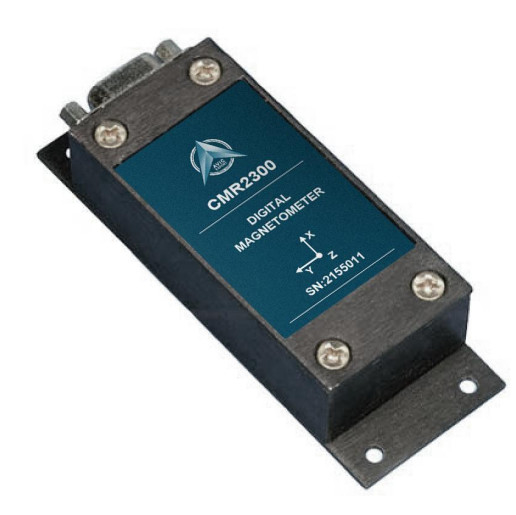

The AVIC CMR2300 is a three-axis smart digital magnetometer to detect the strength and direction of an incident magnetic field. The three of AVIC’s magneto-resistive sensors are oriented in orthogonal directions to measure the X, Y and Z vector components of a magnetic field. These sensor outputs are converted to 16-bit digital values using an internal delta-sigma A/D converter. An onboard EEPROM stores the magnetometer’s configuration for consistent operation. The data output is serial full-duplex RS-232 or half-duplex RS-485 with 9600 or 19,200 data rates. A RS-232 development kit version is available that includes a windows compatible demo program, interface cable, AC adapter, and carrying case.



▶ MAIN FEATURE

• High Accuracy Over ±1 gauss, <0.5% Full Scale

• Range of ±2 gauss, <70 µgauss Resolution

• Three Axis (X, Y, Z) Digital Outputs

• 10 to 154 Samples Per Second, Selectable

• RS-232 or RS-485 Serial Data Interfaces

• PCB or Aluminum Enclosure Options

• 6-15 volt DC Unregulated Power Supply Interface



▶ APPLICATION • Attitude Reference

• Compassing & Navigation

• Traffic and Vehicle Detection

• Anomaly Detection

• Laboratory Instrumentation

• Security System



PCB dimension and PINOUT

Three Axis Smart Digital Magnetometer for Incident Magnetic Field Strength Direction 0



ORDERING INFORMATIOIN Ordering number :

Products CMR2300-D00-232 :PCB Only (No Enclosure), RS-232 I/O

CMR2300-D00-485 :PCB Only (No Enclosure), RS-485 I/O

CMR2300-D20-232 :Flush-Base Enclosure, RS-232 I/O

CMR2300-D20-485 :Flush-Base Enclosure, RS-485 I/O

CMR2300-D21-232 :Extended-Base Enclosure, RS-232 I/O

CMR2300-D21-485 :Extended-Base Enclosure, RS-485 I/O

CMR2300-D20-232-DEMO :Demo Kit, Flush-Base Enclosure, RS-232 I/O

CMR2300-D21-232-DEMO :Demo Kit, Extended-Base Enclosure, RS-232 I/
