High-Precision Integrated Navigation System By Fiber Gyro And MEMS Acceleroemter

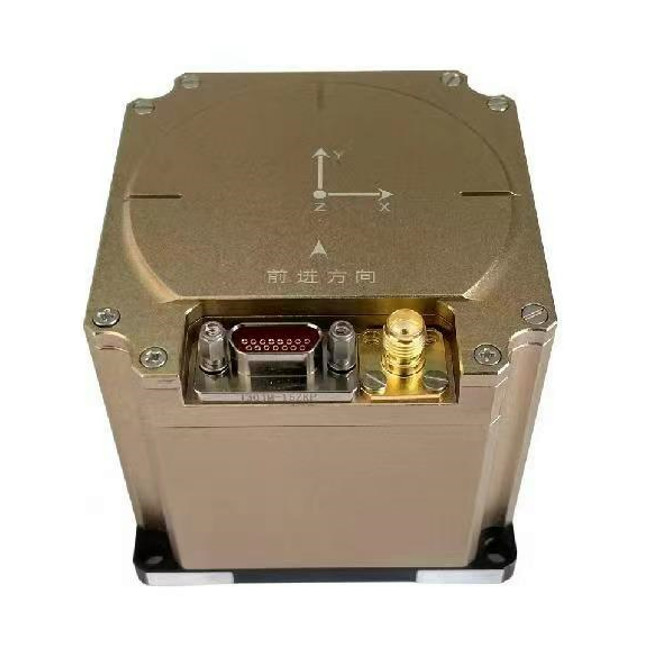

INS-100 is a high-precision integrated navigation system independently developed by AVIC group. It is equipped with
three self-developed 40 fiber optic gyroscopes, three-self MEMS accelerometers and GNSS modules, and realizes
high-precision positioning and navigation in complex environments through multi-sensor fusion and integrated
navigation algorithm. The product has high reliability and strong environmental adaptability. The products can be
widely used in intelligent driving, UAV, surveying and mapping, marine compass, stable platform, photoelectric pod,
underwater vehicle and other fields.
Gyro specs
| Project | Indicators | Remark | |
|
Gyro channel |
Measuring range | -300°/s ～+300°/s | |
| Resolution | ≤0.5°/h | ||
| Zero-bias residual | -1.0°/h ～+1.0°/h | ||
| Random walk | 0.05 o / h | ||
| Zero bias stability at room temperature | ≤0.3°/h(1σ) | 10 seconds smoothing, 1H test result | |
| Zero bias stability at full temperature | ≤0.5°/h(1σ) | 10 seconds smoothing, 1H test result | |
| Normal-temperature zero-bias repeatability | ≤0.3°/h(1σ) | Statistics of 6 test data | |
| Zero-bias repeatability at full temperature | ≤0.5°/h(1σ) | Take 2 zero-bias data at full temperature, high temperature, low temperature and normal temperature respectively | |
| Scale factor nonlinearity | ≤300ppm | Full temperature and constant temperature | |
| Scale factor repeatability | ≤300ppm(1σ) | Full temperature and constant temperature | |
| Gyro start time | ≤5s | ||
| Gyro bandwidth | 300Hz | Design assurance, batch testing | |
| Installation error residual of three-axis gyroscope | ≤30" | ||
acc specs
| Project | Indicators | Remark | |
|
Acceleration channel |
Measuring range | -50g ～ +50g | Design and selection guarantee |
| Scale factor nonlinearity | ≤300ppm | Design and selection guarantee | |
| Zero bias stability at full temperature | ≤100ug(1σ) | 10 seconds smoothing, 1H test result | |
| Zero-bias repeatability at full temperature | ≤100ug(1σ) | Take 2 zero-bias data at full temperature, high temperature, low temperature and normal temperature respectively | |
| Scale factor repeatability | ≤100ppm(1σ) | Design and selection guarantee | |
| Random walk | ≤0.02m/s/h1/2 | ||
| Add up the starting time | ≤5s | ||
| Triaxial addition installation error residual | ≤30" | ||
