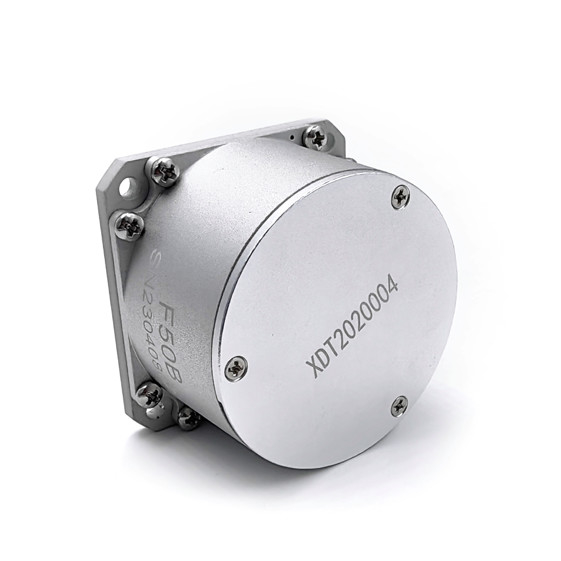

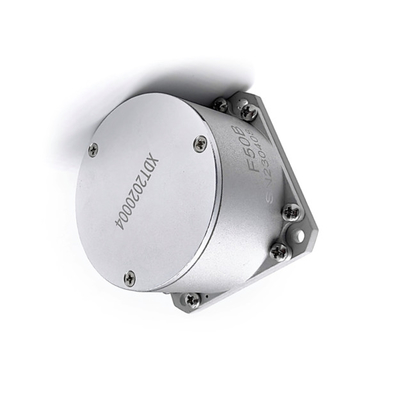

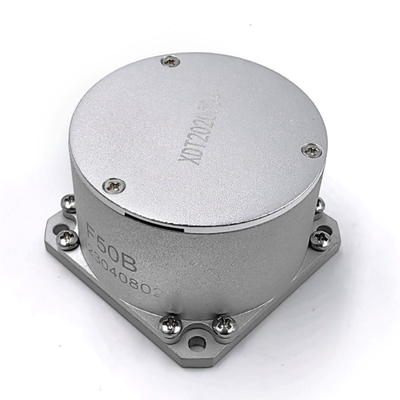

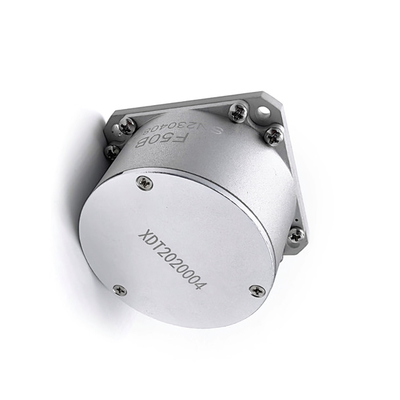

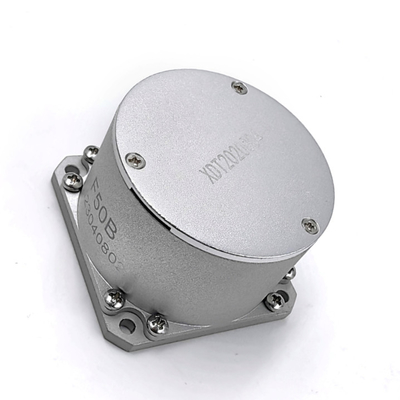

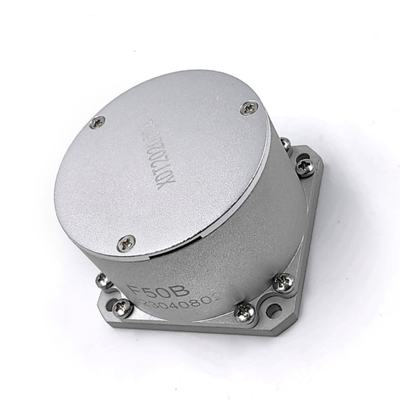

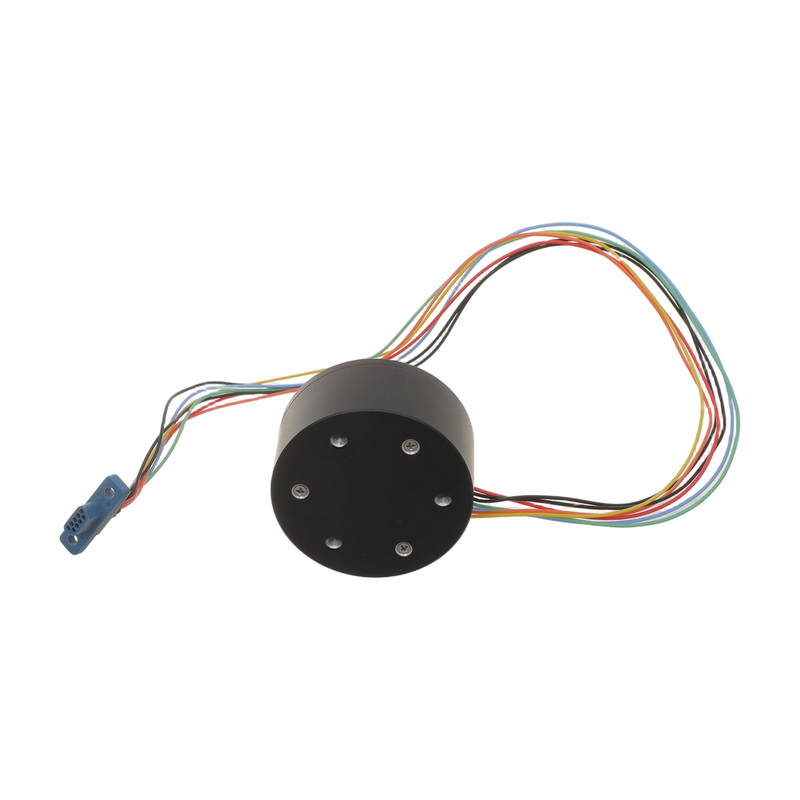

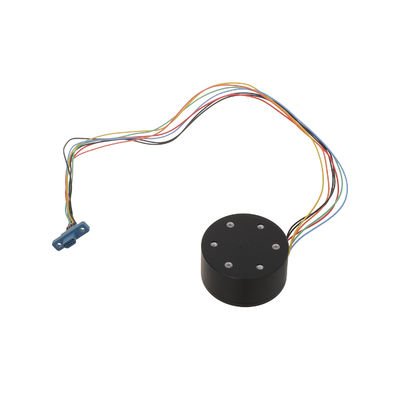

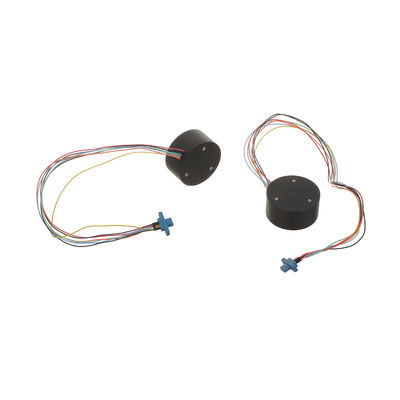

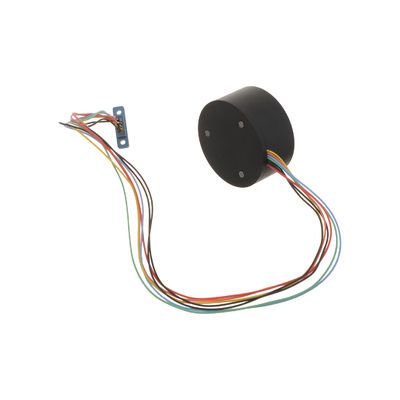

Fiber Gyro RS422 Output Low Noise Optical Gyro Factory Supply High End Fiber Optic Gyro
Environmental adaptability:
3.1 Operating temperature
-45℃~+60℃
3.2 Storage temperature
-55℃~+75℃.
Impact
100g (11 ms), 3 times in a row, in three directions. Mean change of zero deviation before and after impact ≤ 0.5 °/H.
Vibration
(A) Randomly swept spectral lines:
20~80Hz :3dB/oct
80~350 Hz :0.04/Hz
350~2000Hz :-3dB/oct
(B) 3 minutes for each of the three directions, the gyroscope is in the working state during the vibration test, and the mean change of zero deviation before, during and after the vibration is ≤ 0.5 °/H.
Communication
When the standard RS-422 serial communication interface is used, the protocol can be adjusted as required.
Hardware interface: the baud rate is 614.4kbps. The communication format is 11 bits of data per frame, including 1start bit, 8 data bits, 1 even parity bit and 1stop bit. The data update period is 0.5ms.
Software communication protocol:
Gyro valid data is 32 bits (32-bit signed integer). The data packet transmits 7 bytes of data in total: the first byte is the frame header 80H; Bytes 2 to 6 are gyro data; The 7th byte is a check bit (the check bit is an exclusive or value of the data of the 2nd to 6th bytes).
Data format:
The first byte (frame header) is 80H:
1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
The second byte is gyro data D6 ~ D0:
0 | D6 | D5 | D4 | D3 | D2 | D1 | D0 |
The third byte is gyro data D13 to D7:
0 | D13 | D12 | D11 | D10 | D9 | D8 | D7 |
The fourth byte is gyro data D20 ~ D14:
0 | D20 | D19 | D18 | D17 | D16 | D15 | D14 |
The 5th byte is gyro data D27 ~ D21:
0 | D27 | D26 | D25 | D24 | D23 | D22 | D21 |
The 6th byte is gyro data D31 ~ D28:
0 | 0 | 0 | 0 | D31 | D30 | D29 | D28 |
The 7th byte (check bit) is the exclusive or (XOR) of the 2nd to 6th bytes of data.
Performance index:
1 Scale factor
Non-linearity of scale factor at room temperature: < 100 ppm
Normal temperature scale factor repeatability: < 100 ppm (1σ).
2 Zero-bias stability
Zero-bias stability at room temperature:
F50A: < 0.1 °/H (1σ) 10s smooth 1H test result
F50 B: < 0.2 °/H (1σ) 10s smooth 1H test result
3 Zero-bias repeatability
Normal-temperature zero-bias repeatability:
F50A: < 0.2 °/H (1σ) 6 test data calculation
F50 B: < 0.3 °/H (1σ) 6 test data calculation
Full temperature operating range:
F50A: < 0.5 °/H (full temperature extreme difference)
F50 B: < 0.6 °/H (full temperature limit difference)
4 Random walk
Less than 0.02 °/
5 Bandwidth
Greater than 200Hz
6 Initialization time
Less than 5S
7 Dynamic Range
±300°/s
Electrical interface:
1 Gyro socket model
Model of external interface socket of gyroscope: J30-15ZK, connecting line: 0.12 mm AFR line, line length: 250 mm.
2 Wiring definition table
Pin number | Definition | Explain | Remark |
1,9 | T+ | Serial port output RS422 + | |
2,10 | T- | Serial port output RS422- | |
4,5 | +5VA | Analog supply + 5V | |
6,7 | AGND | Analog power ground | |
8,15 | -5VA | Analog power supply -5V | |
12,13 | VCC | Digital supply + 5/+ 3.3V | |
11,14 | GND | Digital power ground |
Power requirements:
+ 5V A: + 5V ± 5%, 0.4A (transient peak about 1.5A), ripple less than 50mV
-5V A: -5V ± 5%, 100mA, ripple less than 50mV
VCC: + 5V ± 10% or + 3.3 V ± 10%,
Note: GND and AGND shall not be connected to the gyro housing.
Dimension
