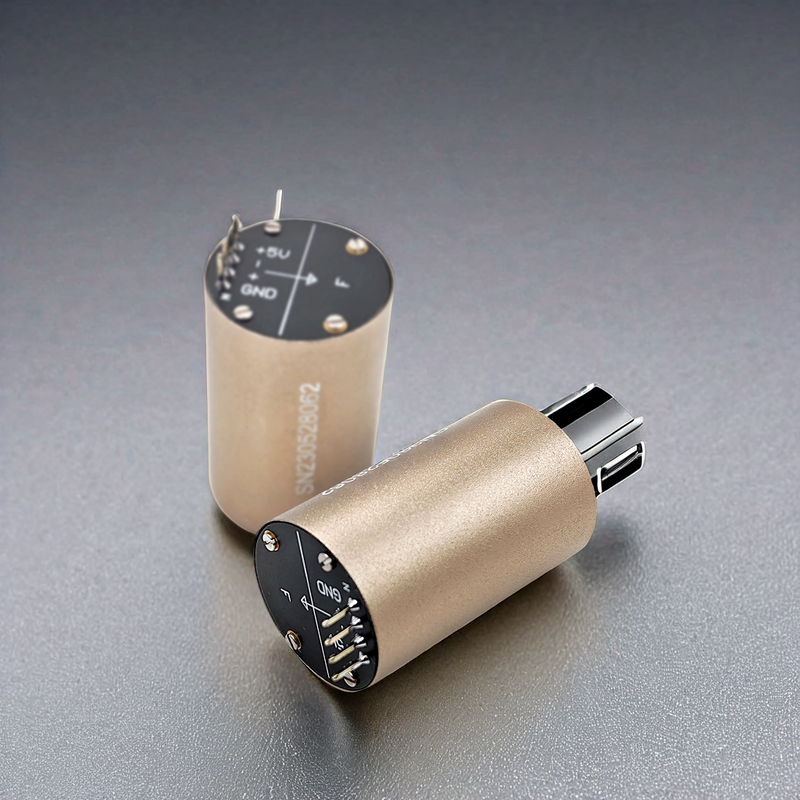

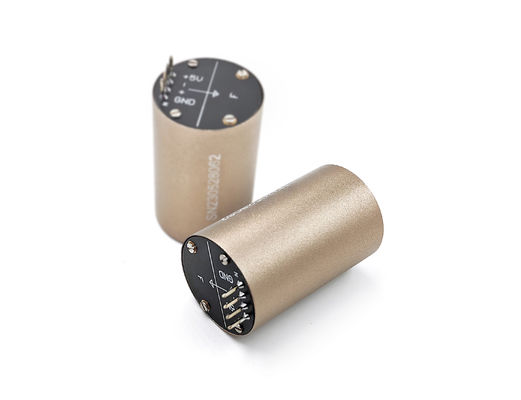

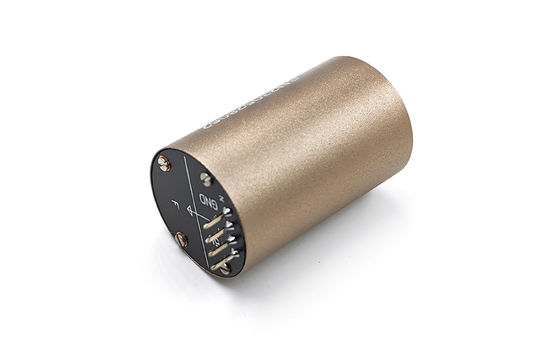

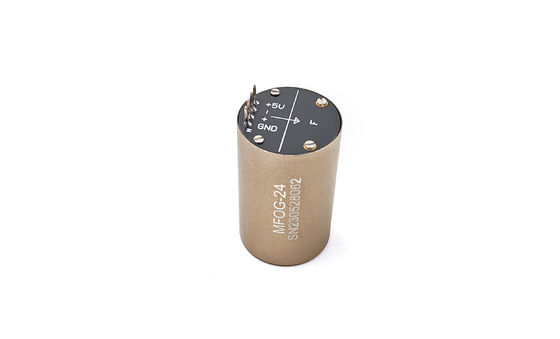

Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology

Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology

Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology

Brand Name: Firepower
Model Number: MFOG-091A
MOQ: 1
Price: 1217 USD
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 pcs
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±300°/S
Scale Factor:
7±0.7mv/°/S
Scale Factor Nonlinearity:
≤1000ppm
Zero-Bias Stability:
≤2°/H, 10s, 1σ
Power Supply:
5±0.15V
Power Consumption:
≤0.7W
Packaging Details:
Sponge&Box
Supply Ability:
100 pcs
Highlight:

Precision Motion Simulation Rate Table

,

Inertial Measurements Motion Simulation Rate Table

,

Temperature Box Motion Simulation Rate Table

Product Description
Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology
Product Description

The MFOG-091A micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Utilizing the Sagnac effect, it incorporates multiple micro-nano fiber devices to detect, process, and feedback phase differences generated by counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

  • Simple structure with no moving or wear parts
  • Fast startup capability
  • Compact size and lightweight design
  • Ideal for carrier attitude control and measurement applications
Technical Parameters
Project Performance indicators
Range (°/s) ±300
Scale factor 7±0.7mv/o/s
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤2
Zero-bias repeatability (1σ, °/H) ≤2
Angular random walk (°/H 1/2) ≤0.04
Zero bias (°/s) ≤0.05
Bandwidth 3dB Band Width (Hz) ≥450
Power supply (V) 5+0.15
Power Consumption (W) ≤0.7
Dimension (mm) φ24X51.6
Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of:

  • Vibration acceleration sensors
  • MEMS gyros and IMU/INS systems
  • Angle testing equipment

With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products. Our independent innovation focuses on developing autonomous navigation products with proprietary intellectual property, widely applied in civilian vehicle and ship navigation systems.

Our core array algorithm technology enables inertial navigation products to provide precise position, three-dimensional attitude, and speed information for autonomous navigation control.

Company Advantage
Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology 0
Our Services
Micro-Nano Fiber Optic Gyro Based on Silicon Photonics Technology 1
FAQ
Q: What is your lead time?
A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.
Q: How does your factory do regarding quality control?
A: We implement strict quality control:
  • Production according to agreed technical requirements
  • Full testing according to methodology
  • Professional QA/QC team oversight
Q: Do you accept OEM or ODM order?
A: Yes, we provide both OEM and ODM services tailored to customer needs.
Q: What are the terms of delivery?
A: We accept EXW, FOB, CIF, and other standard terms.
Q: What is the payment method?
A: TT, L/C, Pay later, West Union, Online Bank Payment.
Q: What is warranty?
A: Standard 12 months warranty, negotiable for longer periods.
Q: What is the packing quality?
A: Sample orders use carton box with sponge; batch orders use wooden box.
Q: What is final price?
A: Standard products as per price table; customized products priced based on requirements and quantity.
Q: How to choose product?
A: Selection options:
  • Choose from our standard product catalog
  • Modify technical requirements based on standard products
  • Provide specific requirements for evaluation
  • Describe application for suitable product recommendations
