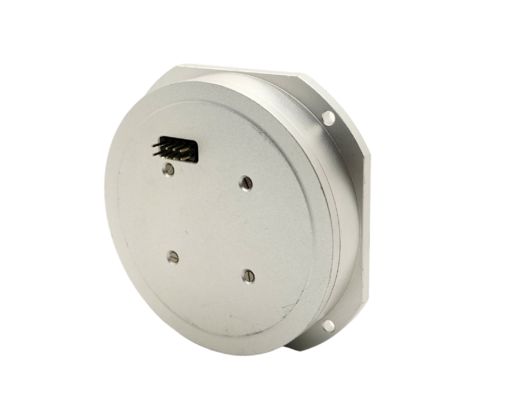

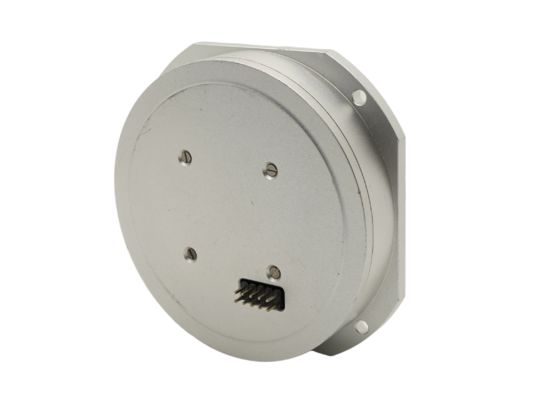

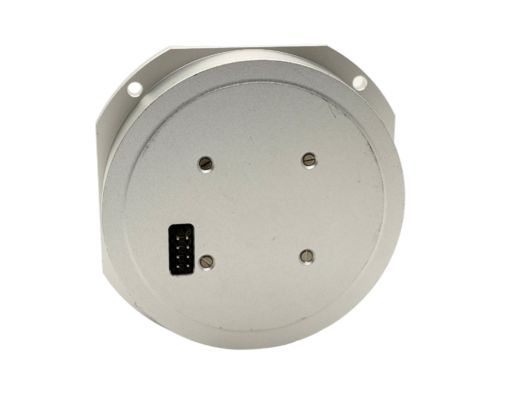

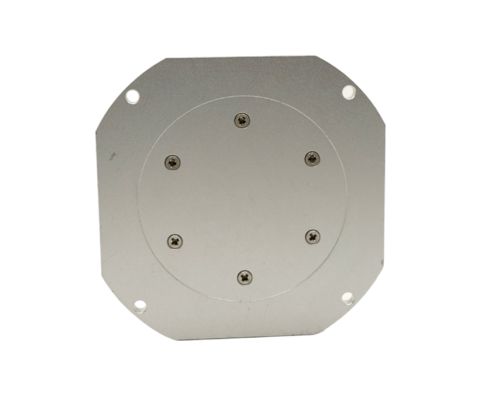

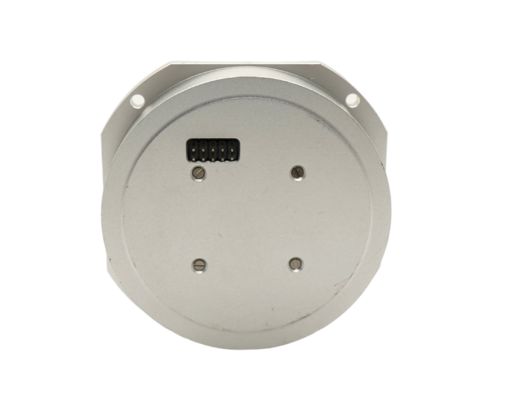

Fizoptika VG910 Fiber Optic Gyroscope ≤0.02°/√h Random Walk for Racing Drone Control

Name: Fizoptika VG910 Fiber Optic Gyroscope ≤0.02°/√h Random Walk for Racing Drone Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Fog

Range:

±240°/s

Zero-bias Stability:

≤0.8°/h

Zero-bias Repeatability:

≤0.8°/h

3dB Bandwidth:

≥1000Hz

Random Walk:

≤0.02 O /√h

Packaging Details:

carton

Supply Ability:

500pcs

Highlight:

3-Axis Motion Simulation Rate Table

High Reliability 3-Axis Turntable

Customized Gyro Testing 3-Axis Turntable

Product Description

Fizoptika VG910 Fiber Optic Gyroscope 0.8°/h for Racing Drone Control

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5±0.25+12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Product Overview

The MFOG-910 micro-nano fiber optic gyroscope is an angular rate sensor integrating optics, mechanics and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber devices and detects phase differences between counter-propagating light beams to measure rotation rates.

This product consists of optical path components, circuit components and structural components. It features a simple structure with no moving parts, fast startup, compact size, and light weight, making it ideal for attitude control and measurement applications.

Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Appearance and Dimensions

Overall dimensions: 82mm * 82mm * 19.5mm (without plug)

Figure 1: Outline drawing of MFOG-910 micro-nano fiber optic gyroscope

Weight

≤150g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz
