Long Service Life Micro-Nano Fiber Optic Gyro with Rigid Packaging

Name: Long Service Life Micro-Nano Fiber Optic Gyro with Rigid Packaging
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-24
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-24
MOQ:	1
Price:	1317 USD
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±500°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nonlinearity:

300ppm

Zero-Bias Stability:

≤1.5°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Single Axis Motion Simulation Rate Turntable

IMU Testing Single Axis Turntable

Single Axis Turntable with Thermal Chamber

Product Description

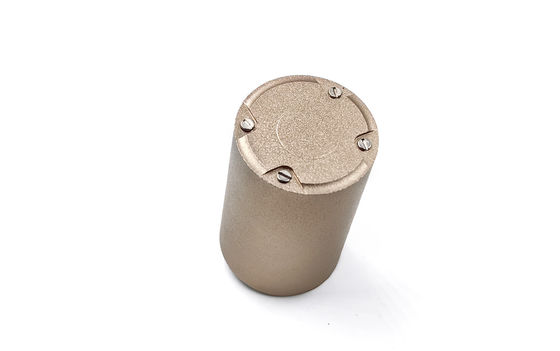

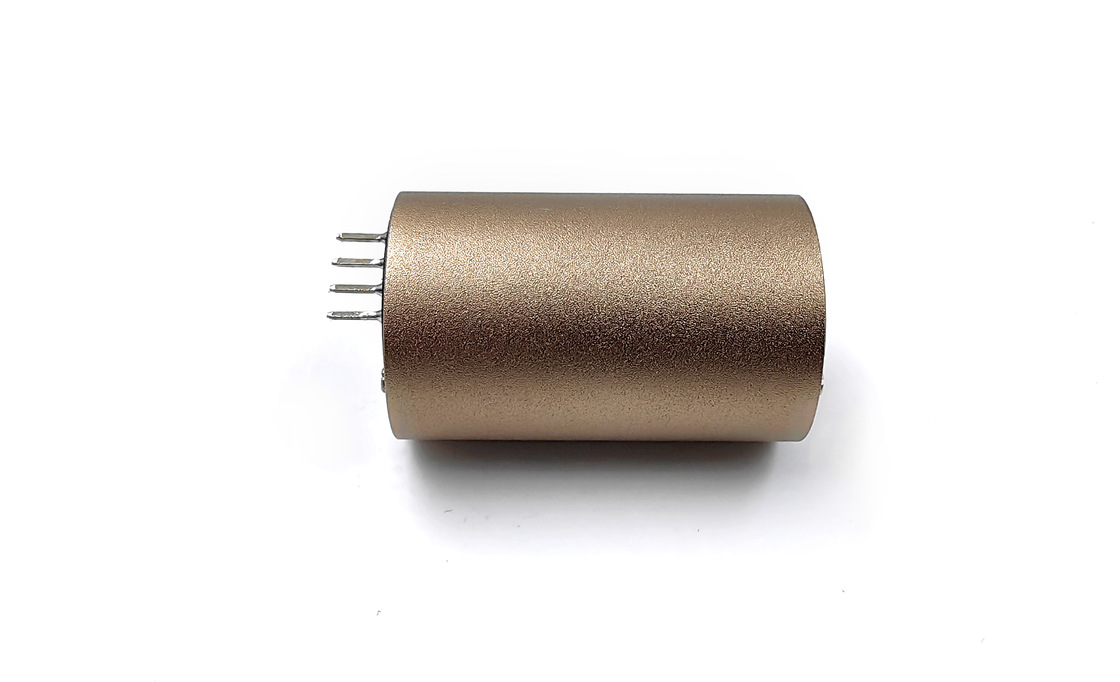

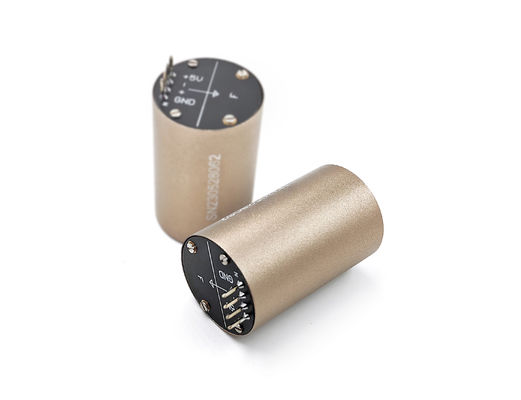

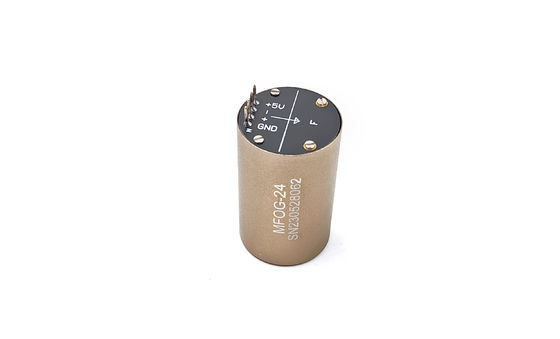

Long Service Life Micro-Nano Fiber Optic Gyro with Rigid Packaging

Product Description

The MFOG-24 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts. It offers fast startup, compact size, and lightweight design, making it ideal for carrier attitude control and measurement applications.

Technical Parameters

Project	Performance indicators
Range (°/s)	±500
Scale factor	3600 (LSB/°/s)
Scale factor nonlinearity (ppm)	300
Zero-bias stability (10s, 1σ, °/h)	≤1.5
Zero-bias repeatability (1σ, °/h)	≤1.5
Angular random walk (°/h 1/2)	≤0.03
Zero bias (°/s)	≤0.02
3dB Band Width (Hz)	≥300
Power supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimension	φ24mmX39mm

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment.

With automated production lines in Xi'an, Shenzhen, and Zhuhai, the company manufactures MEMS gyros, inertial navigation systems, vibration sensors, and communication products. As an innovation-driven enterprise, Firepower develops autonomous navigation products with independent intellectual property rights, widely used in civilian vehicle and ship navigation systems.

The company's core array algorithm technology enables inertial navigation products to provide precise position, three-dimensional attitude, and speed information for autonomous navigation control.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control:

Production according to agreed technical requirements
Full testing according to methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms for your convenience.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: What is final price?

A: Standard products follow price table; customized products require quotation based on specifications.

Q: How to choose product?

A: Selection options:

Choose from standard products
Modify technical requirements
Provide specific requirements for evaluation
Consult sales for application-specific solutions
