Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems

Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems

Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems

Brand Name:	Firepower
Model Number:	MFOG910
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE

Zero Bias Stability:

≤0.8°/h

Random Walk:

≤0.02°/h

Range:

±240°/s

Acceleration:

≥70g

Scale Factornonlinear:

≤5ppm

Storage Temperature:

-55~+85°C

Power Consumption:

≤1.5W

Scale Factor Nonlinear:

≤1000ppm

Packaging Details:

Wooden Box

Supply Ability:

1000pcs

Highlight:

Dual Axis Test Turntable

,

Temperature Controlled Dual Axis Turntable

,

Inertial Sensor Dual Axis Turntable

Product Description

Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±240
2	Scale factor (mV/ o /s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, o /H)	≤0.8
5	Zero-bias repeatability (1σ, o /H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5 _+_ 0.25 _+_ 12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15

Product Overview

The MFOG-910 micro-nano fiber optic gyroscope is an angular rate sensor integrating optics, mechanics and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

Simple structure with no moving or wear parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Product Composition

The gyroscope consists of three primary components:

Optical path assembly
Detection and control signal circuit board
Fiber coil skeleton, housing, and structural components

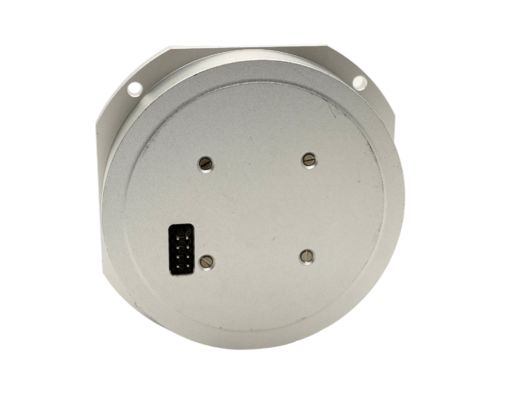

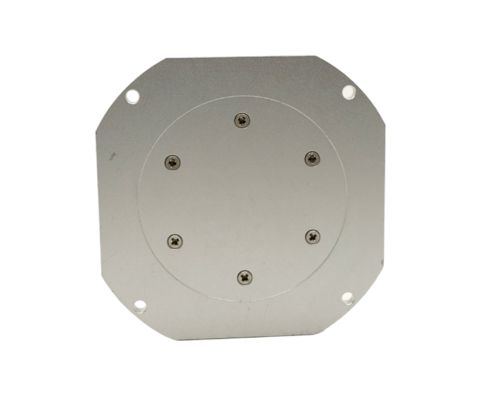

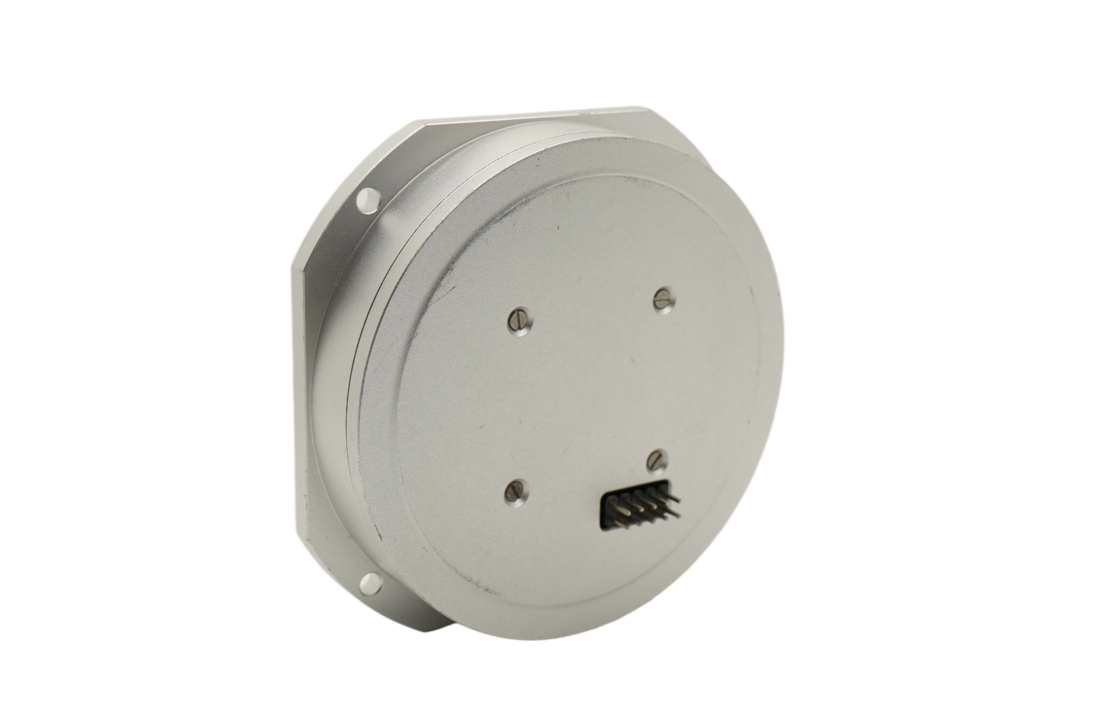

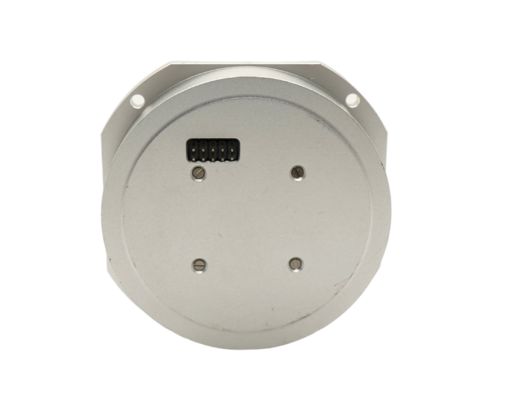

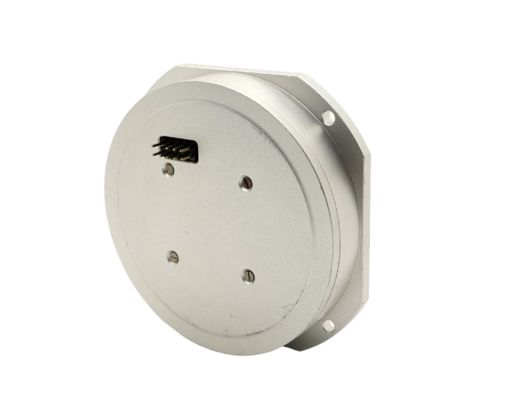

Appearance and Dimensions

Overall dimensions: 82mm * 82mm * 19.5mm (without plug)

Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems 0

Micro-Nano FOG Fiber Optic Gyroscope VG910F for Integrated Navigation Systems 1
