High Dynamic Range Fog Gyroscope Sensor with RS422 Digital Communication

Name: High Dynamic Range Fog Gyroscope Sensor with RS422 Digital Communication
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±150°/s

Angle Random Walk:

0.02°/√h

Bias Stability:

1deg/h

Output Signal:

Voltage

Overall Dimensions:

φ24mm*40mm

Work Temp:

-40~+60℃

Input Voltage:

5VDC

Power Supply:

5+0.25V

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

RS422 Digital Communication Fog Gyroscope Sensor

RS422 Digital Communication Gyroscope Sensor

High Dynamic Range Fog Gyroscope Sensor

Product Description

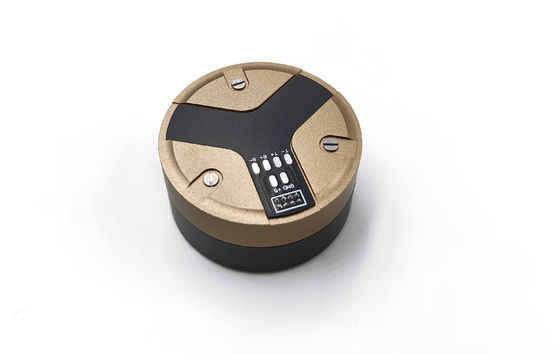

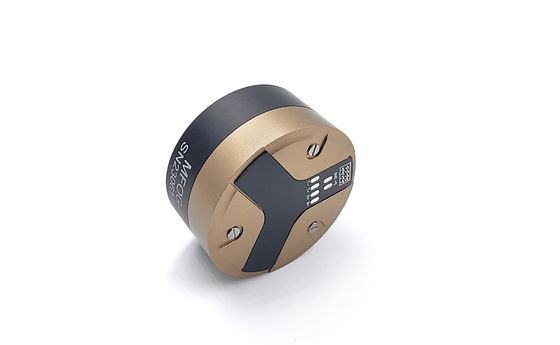

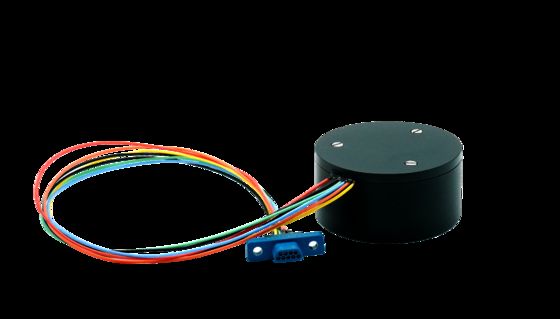

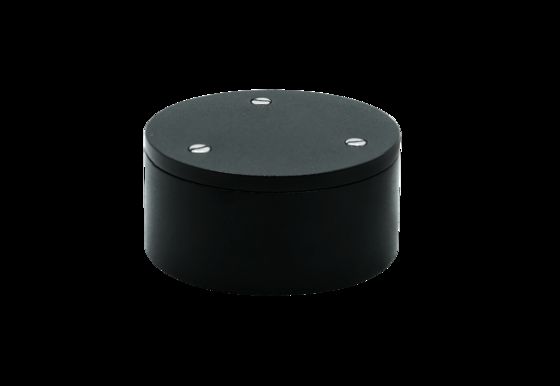

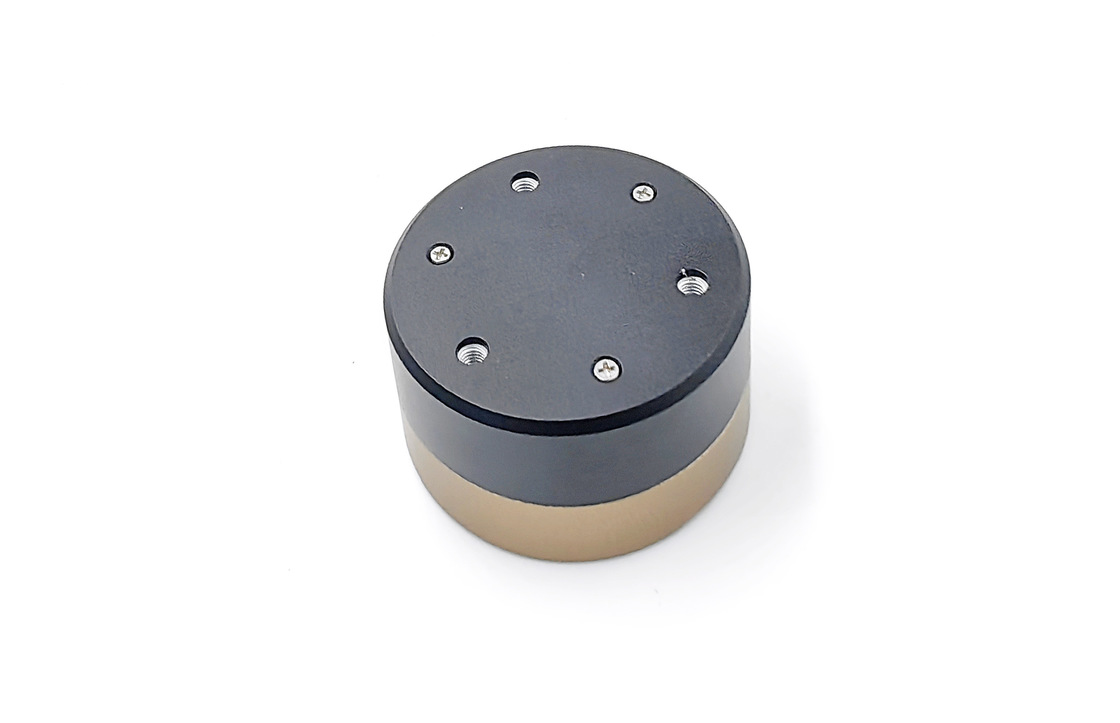

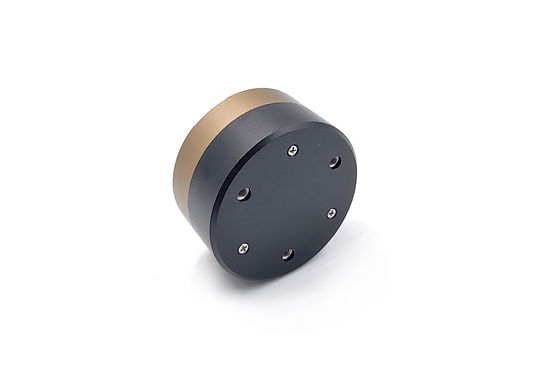

High Dynamic Range Fog Gyroscope Sensor with RS422 Digital Communication

Built on advanced micro-nano optical technology, the MFOG-1703 fiber optic gyroscope provides high accuracy and durability under harsh conditions. With its sealed cylindrical housing (φ40*20mm), rugged structure, and broad temperature tolerance (-40°C to +70°C), it ensures dependable performance in aerospace, marine, and defense applications. A true Fizoptika VG1703 alternative.

Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Appearance and Dimensions

Cylindrical design with overall dimensions of φ40mm * 20mm

Weight: ≤40g

Operating Temperature

-40°C to +70°C

Storage Temperature

-55°C to +85°C

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h 1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450

External Power Supply Requirements

Parameter	Value
Voltage	4.75V to 5.25V
Ripple	20mV
Electric current	0.2A
