products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g

Brand Name: Firepower
Model Number: MFOG-095
MOQ: 1
Price: negotiable
Payment Terms: L/C,T/T
Supply Ability: 500/Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±370°/s
Zero-bias Stability:
≤1.5°/h
3dB Bandwidth:
≥450Hz
Angular Random Walk:
≤0.02°
Dimension:
60*35*25.5mm
Weight:
≤70g
Shock:
≥1500g
Power Consumption:
≤1W
Packaging Details:
Sponge/Box
Supply Ability:
500/Month
Highlight:

Lightweight Fiber Optic Gyro Sensor

,

Shock Resistance Fiber Optic Gyro Sensor

,

Inertial Navigation Fiber Optic Gyro Sensor

Product Description

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance

Product Description


MFOG-095 micro-fiber-optic gyro (FOG) is an integrated angular rate sensor. It is based on the Sagnac effect and incorporates a variety of micro- and nano-fiber optic devices to realize the detection of the phase difference generated by two beams of light propagating in opposite directions. This product features a simple structure, no moving parts, no wear parts, fast start-up, small size, and lightweight. It can be applied to motion measurement and control.


Technical Parameter


No.
Range
±370°/s
1
Scale Factor
11±1.5mv/°/s
2
Zero-bias stability
≤1.5°/h(10s, 1σ)
3
Angular random walk
≤0.02°/√h
4
Zero-bias stability at full temperature(-45 ℃ ~ + 70℃)
≤1.5°/h(10s, 1σ)
5
3dB Bandwidth
≥450Hz
6
Power supply
5±0.25V
7
Power Consumption
≤1W
8
Working temperature
-45~+70℃
9
Shock
≥1500g
10
Vibration
20 ~ 2000Hz, 0.04g²/Hz
11
Dimension
60*35*25.5mm
12
Weight
≤70g

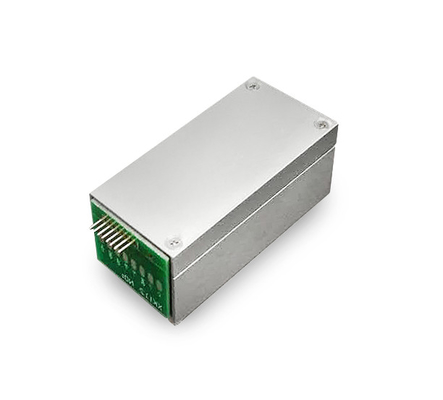

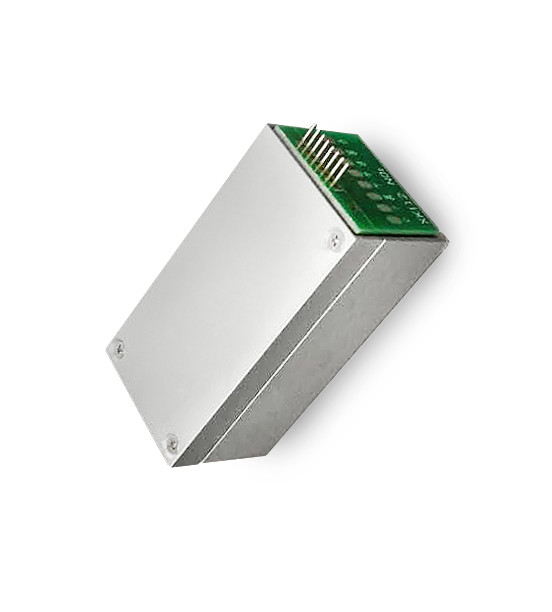

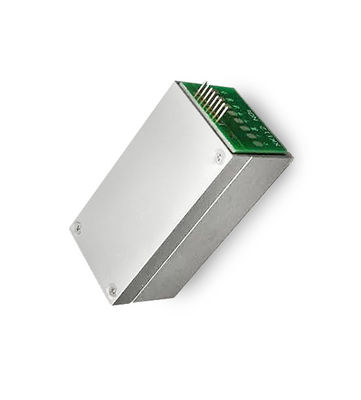

Detailed photo

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 0

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 1

Facrory Photo


Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 2

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 3

FAQ


Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 4

Lightweight Fiber Optic Gyro Sensor for Inertial Navigation Shock Resistance ≥1500g 5

Tags:

Single Axis Fiber Optic Gyro

250hz High Precise Gyro

Low Bias Angular Inertial Meter
