products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

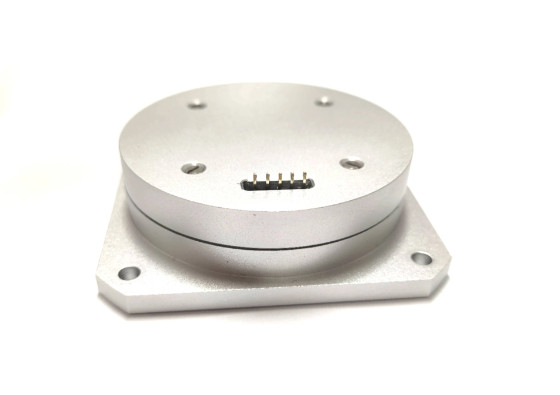

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

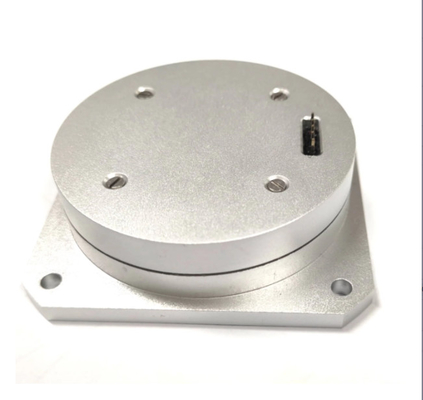

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration

Brand Name: Firepower
Model Number: MFOG-103PT
MOQ: 1
Price: negotiable
Payment Terms: L/C,T/T
Supply Ability: 500/Month
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±350°/s
Zero-bias Stability:
≤1°/h
Angular Random Walk:
≤0.02°
3dB Bandwidth:
≥1000Hz
Power Consumption:
≤1W
Power Supply:
5±0.25V
Shock:
≥1500g
Weight:
≤70g
Packaging Details:
Sponge/Box
Supply Ability:
500/Month
Highlight:

Geographic Exploration Fiber Optic Gyroscope

,

Micro-Nano Integrated Fiber Optic Gyroscope

,

FOG Gyro Sensor for Geographic Exploration

Product Description

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration



Product Description



MFOG103PT FOG is an angular rate sensor that integrates optics, structure, and electricity. Based on the Sagnac effect, it integrates a variety of high-reliability micro-nano fiber optic devices, and feeds back the detection process by detecting the phase difference between two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components, and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, shock resistance, fast start-up, small size, light weight, and high reliability. It can be used for control and measurement of motion carriers.



Technical parameters



Range
±350°/s
Scale Factor
6±0.6mv/°/s
Zero-bias stability
≤1°/h(10s, 1σ)
Angular random walk
≤0.02°/√h
Zero-bias stability at full temperature(-45 ℃ ~ + 70 ℃)
≤1°/h(10s, 1σ)
3dB Bandwidth
≥1000Hz
Power supply
5±0.25V
Power Consumption
≤1W
Working temperature
-45~+70℃
Shock
≥1500g
Vibration
20 ~ 2000Hz, 0.04g²/Hz
Dimension
60*60*17mm
Weight
≤70g



Detail Photo
Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 0

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 1



Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 2



Payment & Shipping





Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 3

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 4

Micro-Nano Integrated Fiber Optic Gyroscope FOG Gyro Sensor for Geographic Exploration 5
