products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time

Brand Name: Firepower
Model Number: MFOG-091D
MOQ: 1 PCS
Price: US$1,320.00~1,400.00
Payment Terms: T/T
Supply Ability: 100PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen
Certification:
CE
Measuring Range:
-300~+300°/s
Zero Bias Stability:
≤2°/h(10s,1
Random Walk Coefficient:
0.03°/√h
Scale Factor:
3600LSB/°/s
Start Time:
≤2s
Bandwidth:
300Hz
Power Supply:
5±o.15V
Power:
≤1.5W
Operating Temperature:
-45~+70°C
Storage Temperature:
-55~+85°C
Vibration:
20~2000Hz, 0.04g²/Hz
Impact:
30g, 11ms
Output Mode:
Rs422
Connector:
Soldering Pin/ Pad
Overall Dimensions:
φ24mm*40mm
Weight:
≤30g
Packaging Details:
Sponge and box
Supply Ability:
100PCS per month
Highlight:

High Accuracy Fiber Optic Gyroscope

,

Small Volume Fiber Optic Gyroscope

,

Fast Start Time Fiber Optic Gyroscope

Product Description
Products Description

MFOG-091D micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Specification
Range
±300°/s
Scale Factor
3600LSB/°/s
Zero-bias stability
≤2°/h(10s, 1σ)
Angular random walk
0.03°/√h
Zero-bias stability at full temperature(-45 ℃ ~ + 70 ℃)
≤2°/h(10s, 1σ)
3dB Bandwidth
300Hz
Power supply
5±0.15V
Power Consumption
≤1.5W
Working temperature
-45~+70℃
Shock
≤30g, 11ms
Vibration
20 ~ 2000Hz, 0.04g2/Hz
Dimension
φ24*52mm
Weight
≤30g
Details Images

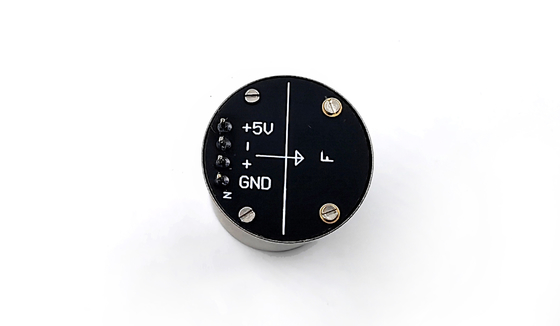

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 0

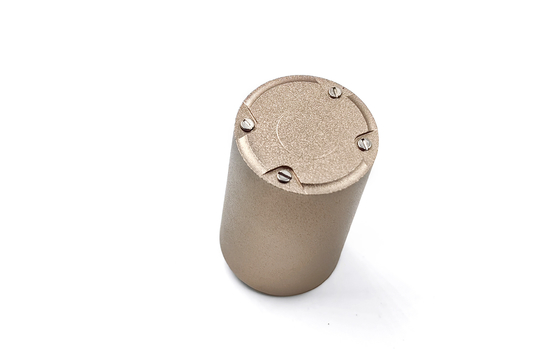

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 1

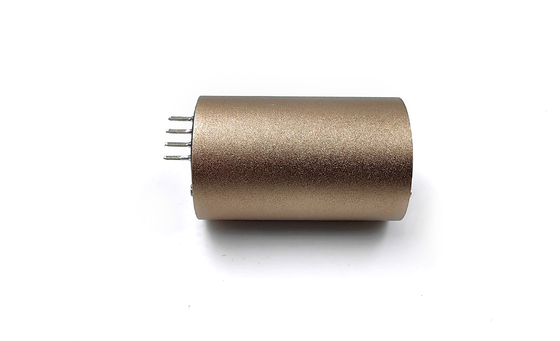

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 2

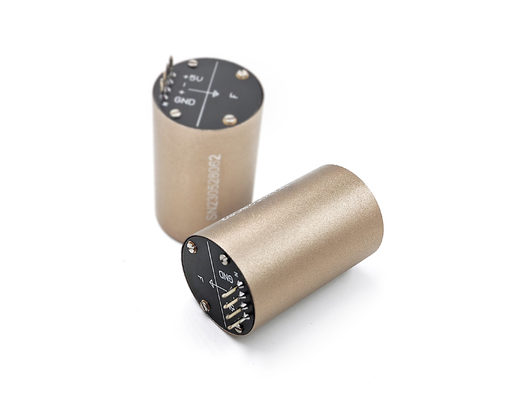

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 3

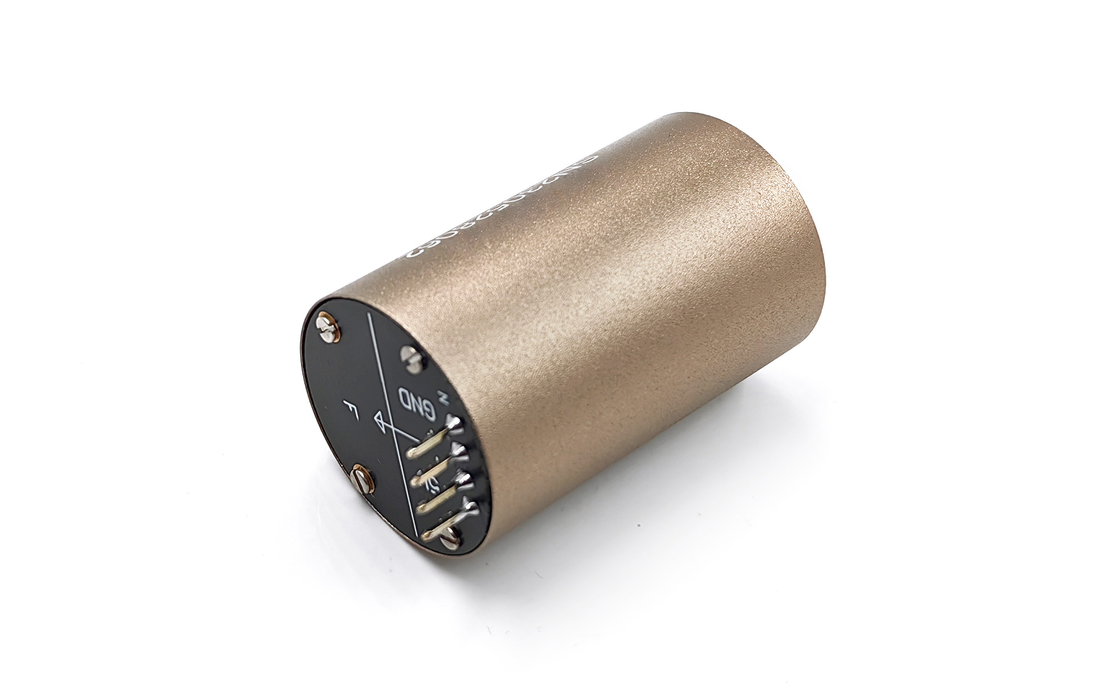

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 4

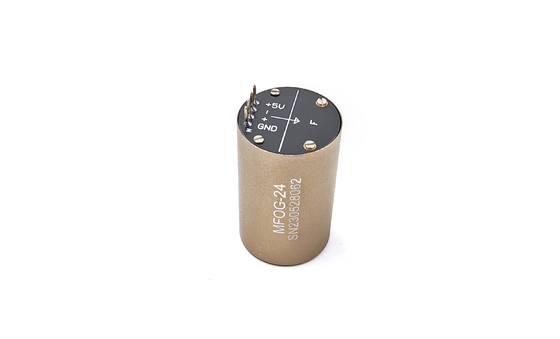

Micro-nano Integrated Fiber Optic Gyroscope with Small Volume and Fast Start Time 5
