products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
Fiber Optic Gyro
Created with Pixso.

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor

Brand Name: Firepower
Model Number: MFOG-103PT
MOQ: 1 PCS
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 500 PCS per month
Detail Information
Product Description
Detail Information
Place of Origin:
Shenzhen, China
Certification:
CE
Measuring Range:
-350~+350°/s
Zero Bias Stability:
≤1°/h(10s, 1
Zero Bias Repeatability:
≤1°/h(1
Random Walk Coefficient:
≤0.02°/√h
Scale Factor:
6±0.6mv/°/s
Bandwidth:
≥1000Hz
Power Supply:
5+0.25V
Power:
≤1W
Operating Temperature:
-45~+70°C
Storage Temperature:
-55~+85°C
Vibration:
20~2000Hz, 0.04g²/Hz
Output Mode:
Analog Voltage
Connector:
Soldering Pin/ Pad
Overall Dimension:
60mm*60mm*17mm
Packaging Details:
Sponge and box
Supply Ability:
500 PCS per month
Highlight:

High Precision Fiber Optic Gyroscope

,

6±0.6mv/°/s Fiber Optic Gyroscope

Product Description
Products Description
MFOG103PT FOG is an angular rate sensor that integrates optics, structure, and electricity. Based on the Sagnac effect, it integrates a variety of high-reliability micro-nano fiber optic devices, and feeds back the detection process by detecting the phase difference between two beams of light propagating in opposite directions.
This product is mainly composed of optical path components, circuit components, and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, shock resistance, fast start-up, small size, light weight, and high reliability. It can be used for control and measurement of motion carriers.


Specification
Range
±350°/s
Scale Factor
6±0.6
Zero-bias stability
≤1°/h(10s, 1σ)
Angular random walk
0.02°/√h
Zero-bias stability at full temperature(-45 ℃ ~ + 70 ℃)
≤1°/h(10s, 1σ)
3dB Bandwidth
1000Hz
Power supply
5±0.25V
Power Consumption
≤1W
Working temperature
-45~+70℃
Shock
≥1500g
Vibration
20 ~ 2000Hz, 0.04g2/Hz
Dimension
φ60*60*17mm
Details Images

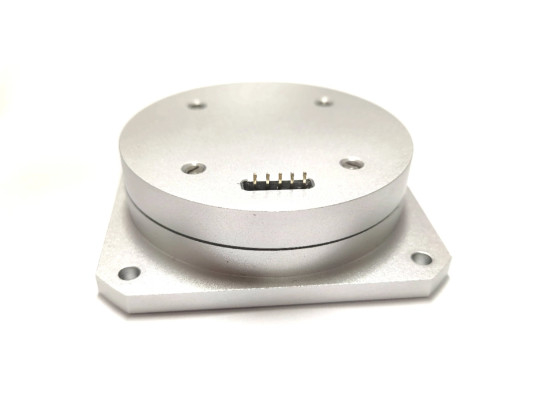

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor 0

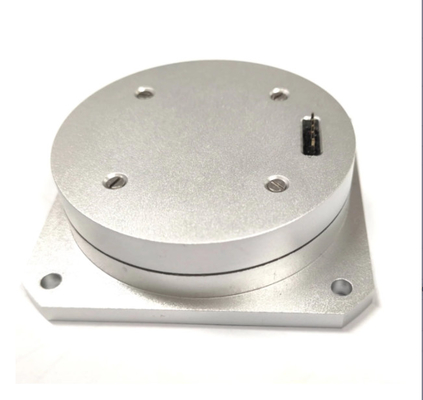

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor 1

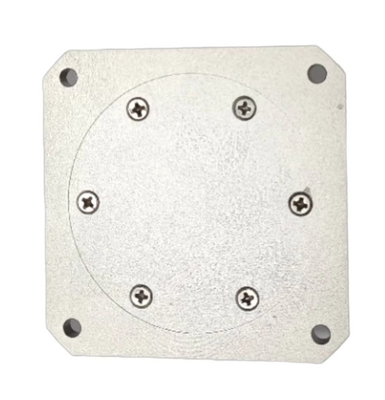

Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor 2
Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor 3
Low Zero Bias Stability Micro-Nano Integrated Fiber Optic Gyroscope with High Precision and 6±0.6mv/°/s Scale Factor 4
