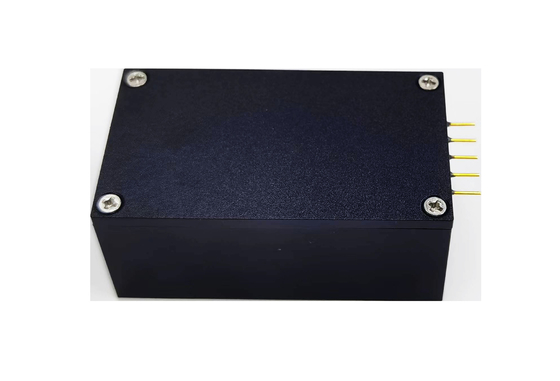

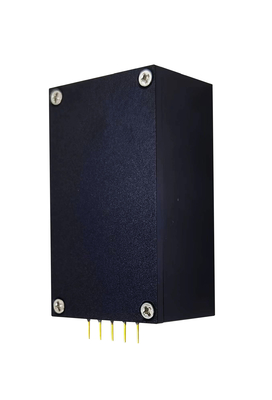

MFOG-095 micro-fiber-optic gyro (FOG) is an integrated angular rate sensor. It is based on the Sagnac effect and incorporates a variety of micro- and nano-fiber optic devices to realize the detection of the phase difference generated by two beams of light propagating in opposite directions. This product features a simple structure, no moving parts, no wear parts, fast start-up, small size, and lightweight. It can be applied to motion measurement and control.
|
No.
|
Range
|
±370°/s
|
|
1
|
Scale Factor
|
11±1.5mv/°/s
|
|
2
|
Zero-bias stability
|
≤1.5°/h(10s, 1σ)
|
|
3
|
Angular random walk
|
≤0.02°/√h
|
|
4
|
Zero-bias stability at full temperature(-45 ºC ~ + 70 ºC)
|
≤1.5°/h(10s, 1σ)
|
|
5
|
3dB Bandwidth
|
≥450Hz
|
|
6
|
Power supply
|
5±0.25V
|
|
7
|
Power Consumption
|
≤1W
|
|
8
|
Working temperature
|
-45~+70ºC
|
|
9
|
Shock
|
≥1500g
|
|
10
|
Vibration
|
20 ~ 2000Hz, 0.04g²/Hz
|
|
11
|
Dimension
|
60*35*25.5mm
|
|
12
|
Weight
|
≤70g
|
