Home Products

Fiber Optic Gyro

High Performance Three Axis Integrated Angular Rate Sensor Fiber Optic Gyroscope Wih Wide Range

Name: High Performance Three Axis Integrated Angular Rate Sensor Fiber Optic Gyroscope Wih Wide Range
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-40M
Price: 10000.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	3OG-40M
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measuring Range:

±500/±800°/s

Zero-Bias Stability:

≤0.3°/h

Zero-bias Repeatability:

≤0.3°/h

Scale Factor Nonlinearity:

≤50ppm

Bandwidth:

≥200Hz

Zero Bias Sensitivity:

≤0.07°/h/Gs

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

High performance fiber optic gyroscope

Wide range fiber optic gyroscope

Three Axis Integrated Angular Rate Sensor

Product Description

3OG-40M is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular velocity of the carrier along the sensitive axis of the product. An angular velocity sensing unit of the product is an optical fiber ring, a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and counterclockwise propagation light caused by external physical angular velocity and sensed by the optical fiber ring, and meanwhile, a voltage signal converted from an optical path difference signal is subjected to closed-loop feedback and control, so that the modulation and demodulation of the signal are realized, and the purpose of high-precision angular velocity signal detection is achieved

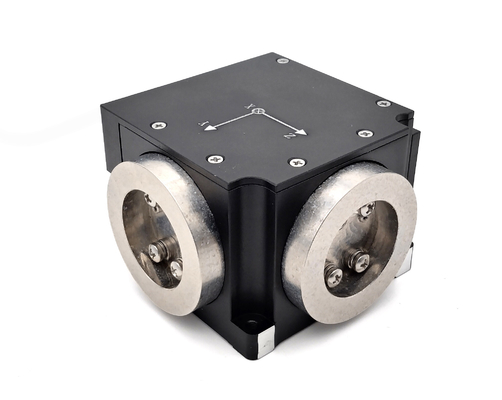

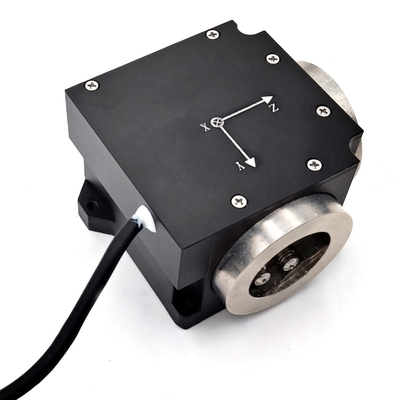

Details Images

Technical Parameter

Serial number	Test item	Unit	3OG-40	3OG-40M	3OG-56
1	Overall dimensions	mm	71.5×71.5×45
2	Starttime	S	3	3	3
3	Zero position	(°)/h	≤1	≤1	≤1
4	Zero bias stability at room temperature (constant temperature)	(°)/h	≤0.08(10s)	≤0.3(10s)	≤1(10s)
6	Zero-bias repeatability	(°)/h	≤0.08	≤0.3	≤1
7	Zero bias sensitivity	(°)/h/Gs	≤0.05	≤0.07	≤0.1
8	Random walk coefficient	()/h1/2	≤0.01	≤0.01	≤0.05
9	Scale factor nonlinearity	ppm	≤20	≤50	≤100
10	Scale factor asymmetry	ppm	≤10	≤30	≤50
11	Scale factor repeatability	ppm	≤20	≤50	≤100
12	Threshold	(°)/h	≤0.05	≤0.05	≤0.08
13	Resolution	(°)/h	≤0.05	≤0.05	≤0.05
14	Bandwidth	Hz	≥200	≥200	≥200
15	Operating temperature	℃	-45～+70	-45～+70	-45～+70
16	Storage temperature	℃	-55～+80	-55～+80	-55～+80
17	Dynamic range	(°)/s	±500/±800	±500/±800	±500/±1000
18	Supply voltage	V	+5	+5	+5
19	Steady-state power consumption	W	≤4	≤4	≤4
20	Full temperature steady state power consumption	W	≤8	≤8	≤8
21	Start the instantaneous current	A	<2	<2	<2
