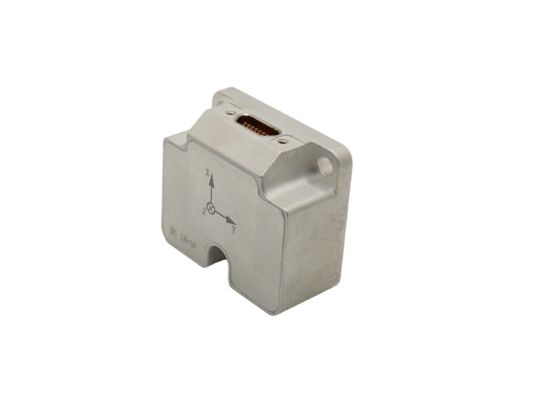

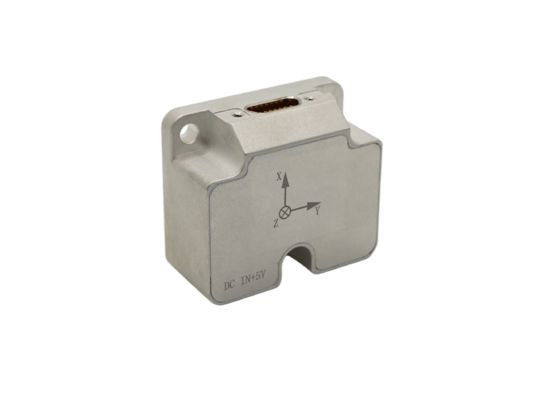

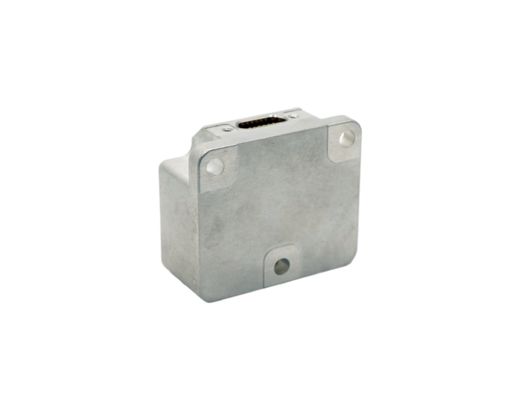

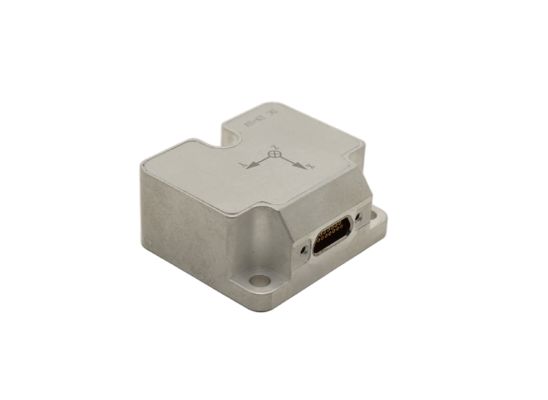

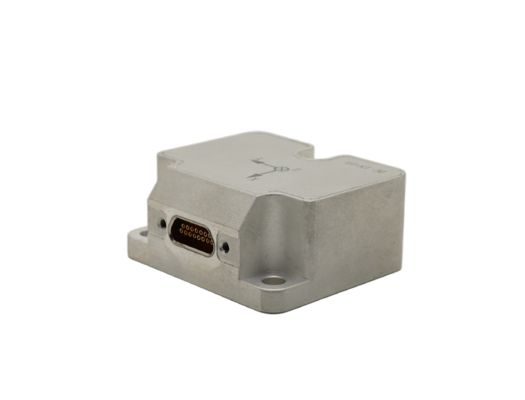

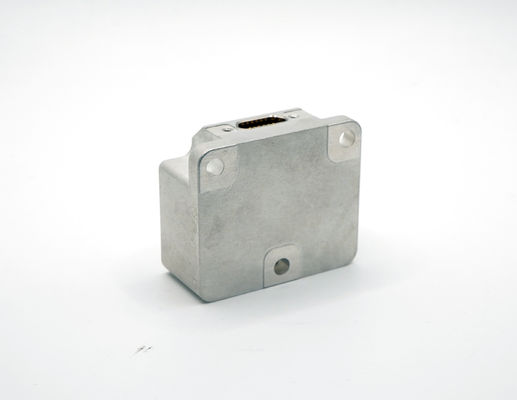

Three Axis Angular Rate Sensor with High Shock Resistance for Motion Detection

Name: Three Axis Angular Rate Sensor with High Shock Resistance for Motion Detection
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MG3-1A
Price: 10000.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MG3-1A
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Measuring Rsnge:

±400°/s

Bias Instability:

0.3°/h

Bias Repeatability:

≤3°/h

Bandwidth:

250Hz

Scale Factor Nonlinearity:

≤100ppm

Power:

≤1.4W

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

High performance fiber optic gyroscope

Wide range fiber optic gyroscope

Three Axis Integrated Angular Rate Sensor

Product Description

Three Axis Angular Rate Sensor with High Shock Resistance for Motion Detection

The MG3-1A MEMS Gyroscope is a compact 3-axis angular rate sensor designed for autonomous navigation, UAVs, and robotics. This advanced sensor integrates MEMS gyroscope technology, temperature sensing, signal processing board, structural support, and software to deliver temperature-compensated, misalignment-corrected, and linearity-corrected RS-422 output.

Key Features

±400°/s measurement range
Exceptional zero-bias instability: 0.3 °/h
Low random walk: 0.15 °/√h
High bandwidth: 250 Hz
Fast start-up time: 17 seconds
Lightweight design: 52 grams
Ideal for drone navigation, robotic stabilization, and autonomous survey platforms
Suitable as a Stim210 replacement for high-precision MEMS gyroscope applications

Technical Specifications

1.2.1 Gyroscope Technical Index

Parameter	Unit	Test Conditions	MG3-1A	MG3-1C	MG3-1E
Measuring range	°/s		±400	±400	±300
Zero-bias instability	°/h	Allan variance	0.3	0.1	0.2
Zero bias stability	°/h	10s smooth, RMS, Room temperature	3	1	1
Zero bias variation at full temperature	°/h	10s smoothing, RMS, temperature change rate 1℃/min	20	10	5
Random walk	°/√h	Allan variance	0.15	0.05	0.03
Output noise	p-p	Peak (Half Peak, RMS * 3)	0.3	0.25	0.2
Zero-bias repeatability	°/h	Q = 6, Room temperature	3	1	0.5
Zero bias acceleration sensitivity		Test at ± 1 g	2	2	2
Resolution	°/h		2	1	1
Bandwidth	Hz		250	250	400
Scale factor nonlinearity	ppm	Room temperature	100
Scale factor repeatability	ppm	Q = 3, Room temperature	100
Cross coupling	%	Room temperature	0.1

1.2.2 Electrical Characteristics

Parameter	Unit	MG3-1A
Voltage	V	+5±0.25
Startup current	mA	＜400
Steady-state power consumption	W	＜1.4
Ripple	mV	100

1.2.3 Environmental Adaptability

Parameter	Unit	MG3-1A
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

1.2.4 Other Specifications

Parameter	Unit	MG3-1A
Weight	g	52±5
Start time	s	1

Overall Dimensions
