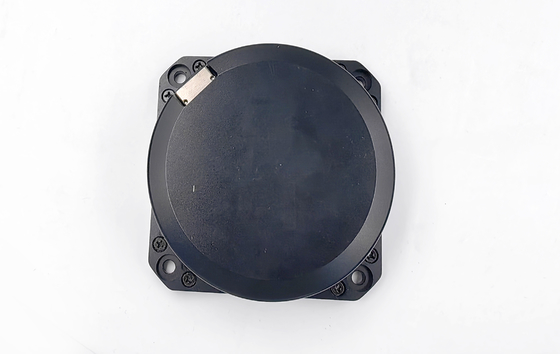

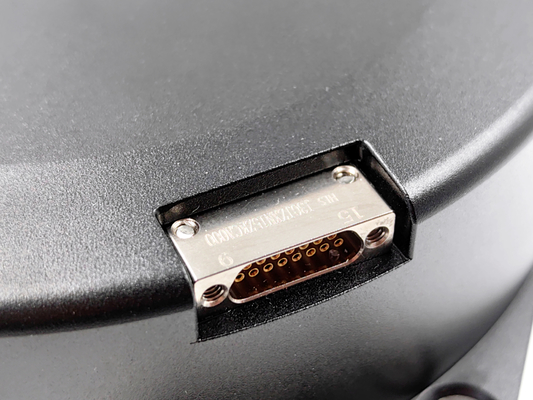

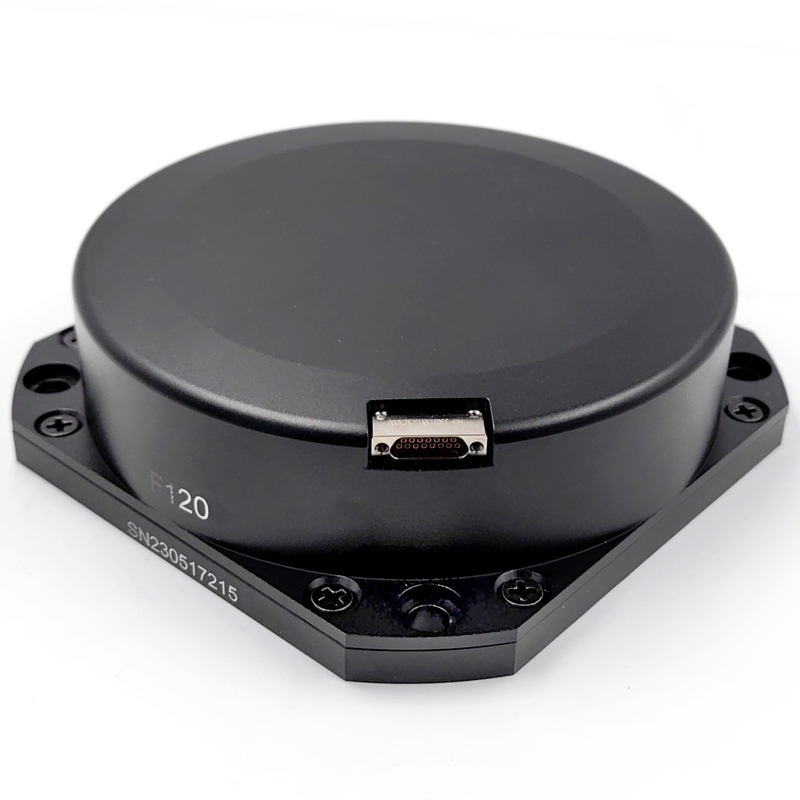

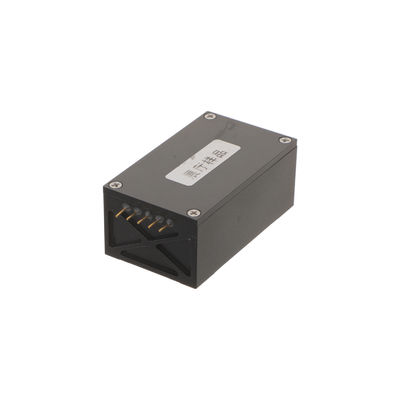

Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance

Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance

Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance

Brand Name: Firepower
Model Number: FOG-98H-MP
MOQ: 1
Price: Negotiable
Payment Terms: T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Zero Bias Stability:
≤0.01°/h (10s Smoothing)
Random Walk Coefficient:
≤0.0005°/√h
Measuring Range:
-500~+500°/s
Start Time:
3s
Impact:
30g, 11ms
Output Mode:
RS-422
Zero Bias Repeatability:
≤0.003°/h
Scale Factor Nonlinearity:
≤5ppm
Working Temperature:
-45~+70℃
Storage Temperature:
-55~+85℃
Packaging Details:
sponge and carton
Supply Ability:
500/month
Highlight:

Wide Dynamic Range Fiber Optic Gyroscope

,

High Impact Resistance Fiber Optic Gyroscope

Product Description

1. Product advantages

Wide Temperature Range Adaptability
With special design and process optimization, this fiber optic gyroscope is able to operate stably over a wide temperature range from -40°C to +85°C, adapting to extreme environmental conditions.



2. Areas of application
Aerospace: for aircraft attitude control and navigation.
Navigation: for navigation and stabilization of ships and submarines.
Land navigation: for unmanned vehicles, robots, etc.
Industrial applications: for platform stabilization, vibration monitoring, etc.



3. Parameters

Serial number Test item Unit Technical requirements
1 Overall dimensions mm 98×98×33.5
2 Start-up time s 3
3 Zero bias (°)/h ≤0.3
4 Zero bias stability at room temperature (constant temperature) (°)/h

≤ 0.01 (10 s smoothing)

≤ 0.003 (100s smoothing)
5

Zero bias stability with temperature change

(1 ℃/min variable temperature, 100 s smooth)

 (°)/h ≤0.01
6 Zero-bias repeatability (°)/h ≤0.003
7 Zero bias sensitivity (°)/h/Gs ≤0.005
8 Random walk coefficient (º)/h1/2 ≤0.0005
9 Scale factor nonlinearity ppm ≤5
10 Scale factor asymmetry ppm ≤2
11 Scale factor repeatability ppm ≤5
12 Threshold (°)/h ≤0.003
13 Resolution (°)/h ≤0.003
14 Bandwidth Hz ≥200
15 Operating temperature ℃ -45～+70
16 Storage temperature ℃ -55～+85
17 Dynamic range (°)/s ±500
18 Supply voltage V +5
19 Normal temperature steady state power consumption W ≤2.5
20 Full temperature steady state power consumption W ≤4
21 Start the instantaneous current A <1.5


4. Production environments

Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 0 Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 1



Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 2 Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 3



Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 4 Fiber Optic Gyroscope With Wide Dynamic Range And High Impact Resistance 5



Tags:

Single Axis Fiber Optic Gyro

250hz High Precise Gyro

Low Bias Angular Inertial Meter
