Anti-vibration Single-axis Integrated FOG Sensor For High Precision Navigation

Name: Anti-vibration Single-axis Integrated FOG Sensor For High Precision Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

±150°/s

Zero Bias Stability:

≤2°/h (10s Smoothing)

Random Walk Coefficient:

≤0.02°/√h

Zero Bias Repeatability:

≤2°/h

Weight:

≤70g.

Dimension:

60mm × 35mm × 25.5mm

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Anti-vibration FOG sensor

High Precision Navigation FOG sensor

Three-axis Integrated FOG sensor

Product Description

Anti-vibration Single-axis Integrated FOG Sensor For High Precision Navigation

The MFOG-095 is a high-precision micro-nano fiber optic gyroscope designed for UAVs, autonomous navigation systems, and robotic platforms. It delivers low bias drift (≤2°/h), high bandwidth (≥1000Hz), and minimal random walk (≤0.02°/√h). Its compact 60*35*25.5 mm size and 70g weight enable integration into space-constrained navigation systems. Fully compatible with Fizoptika VG095, it provides a drop-in solution for precision motion control and mapping applications.

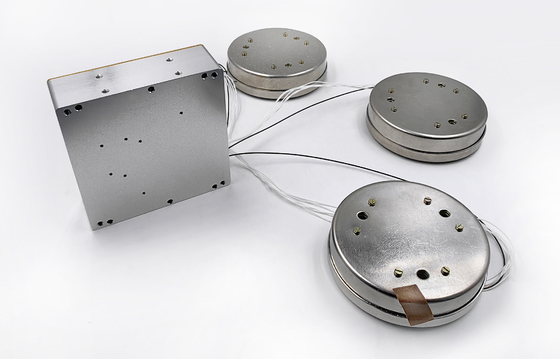

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Physical Specifications

Dimensions: 60mm * 35mm * 25.5mm (without plug)
Weight: ≤70g

Environmental Specifications

Operating Temperature: -40℃ to +70℃
Storage Temperature: -55℃ to +85℃
Random Vibration: 20g, frequency range: 20Hz to 2000Hz

Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤0.7

Mechanical and Electrical Interfaces

The bottom surface of the product is the installation surface. The four M3 threads on the bottom surface are connected to the outside.
