2025 Automotive MEMS 3-Axis Gyroscope for Vehicle Dynamics Control

Name: 2025 Automotive MEMS 3-Axis Gyroscope for Vehicle Dynamics Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MG3-1A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MG3-1A
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Accuracy:

0.3°/h

Bias Repeatability:

≤3°/h

Random Walk:

0.15°/√h

Measuring Rsnge:

±400°/s

Consumption:

≤1.4w

Output Voltage:

5 V

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Three-axis integrated FOG sensor

Anti-interference FOG sensor

Compact Structure FOG sensor

Product Description

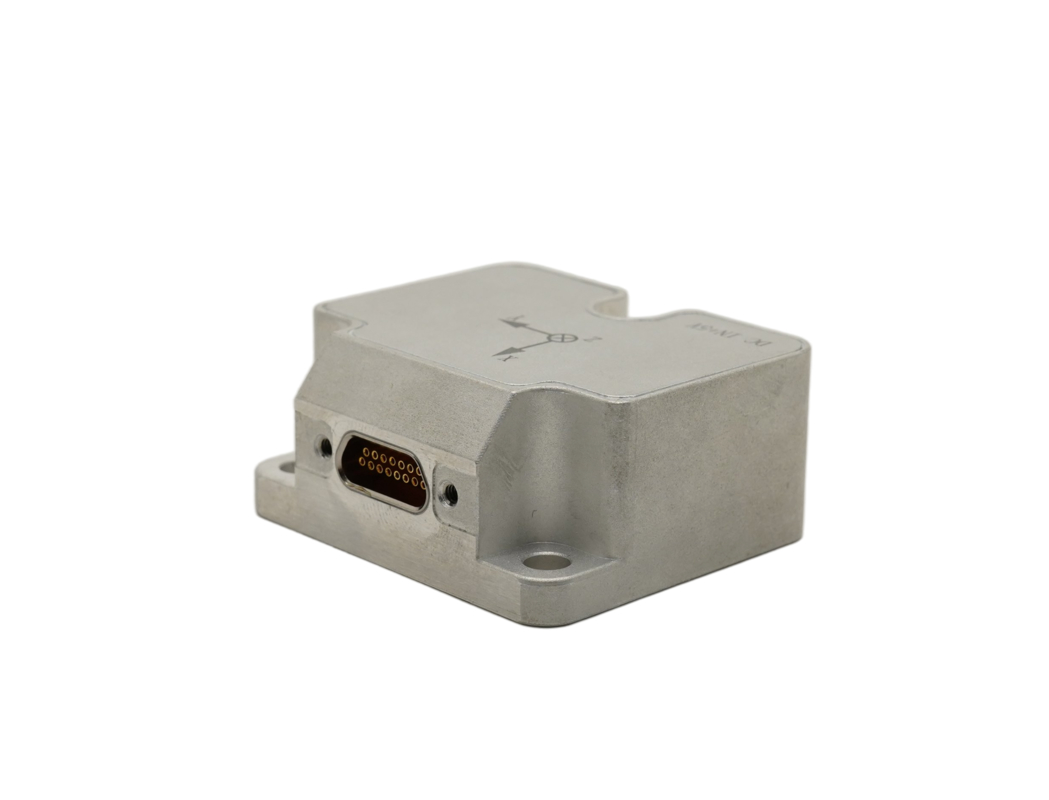

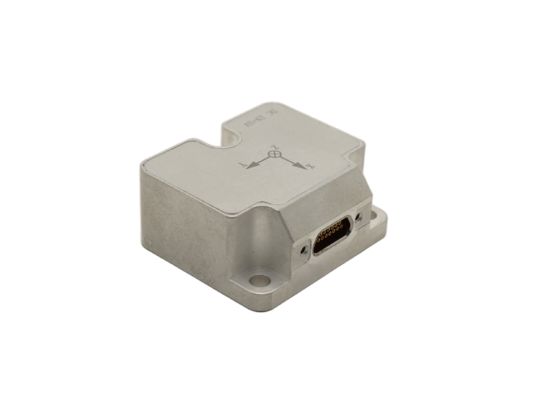

2025 Automotive MEMS 3-Axis Gyroscope for Vehicle Dynamics Control

The MG3-1A MEMS Gyroscope delivers precise angular rate measurements for autonomous navigation, UAV systems, and robotic stabilization applications.

This integrated solution features temperature sensors, signal processing board, structural framework, and specialized software for complete error-compensated output via RS-422, including:

Temperature compensation
Misalignment correction
Nonlinear adjustment

Key performance specifications include ±400°/s measurement range, zero-bias stability of 3 °/h, random walk of 0.15 °/√h, and bandwidth of 250 Hz. With its compact design (52 g), it's ideal for UAVs, autonomous vehicles, precision robotics, and mobile mapping instruments.

As a Stim210 replacement, this gyroscope provides a drop-in solution for high-precision INS, attitude measurement, and motion control applications.

Technical Specifications

Gyroscope Performance Parameters

Parameter	Unit	Test Conditions	MG3-1A	MG3-1C	MG3-1E
Measuring range	°/s		±400	±400	±300
Zero-bias instability	°/h	Allan variance	0.3	0.1	0.2
Zero bias stability	°/h	10s smooth, RMS, Room temperature	3	1	1
Zero bias variation at full temperature	°/h	10s smoothing, RMS, temperature change rate 1℃/min	20	10	5
Random walk	°/√h	Allan variance	0.15	0.05	0.03
Output noise	p-p	Peak (Half Peak, RMS * 3)	0.3	0.25	0.2
Zero-bias repeatability	°/h	Q = 6, Room temperature	3	1	0.5
Zero bias acceleration sensitivity		Test at ± 1 g	2	2	2
Resolution	°/h		2	1	1
Bandwidth	Hz		250	250	400

Electrical Characteristics

Parameter	Unit	MG3-1A
Voltage	V	+5±0.25
Startup current	mA	＜400
Steady-state power consumption	W	＜1.4
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	MG3-1A
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Additional Specifications

Parameter	Unit	MG3-1A
Weight	g	52±5
Start time	s	1

Product Dimensions
