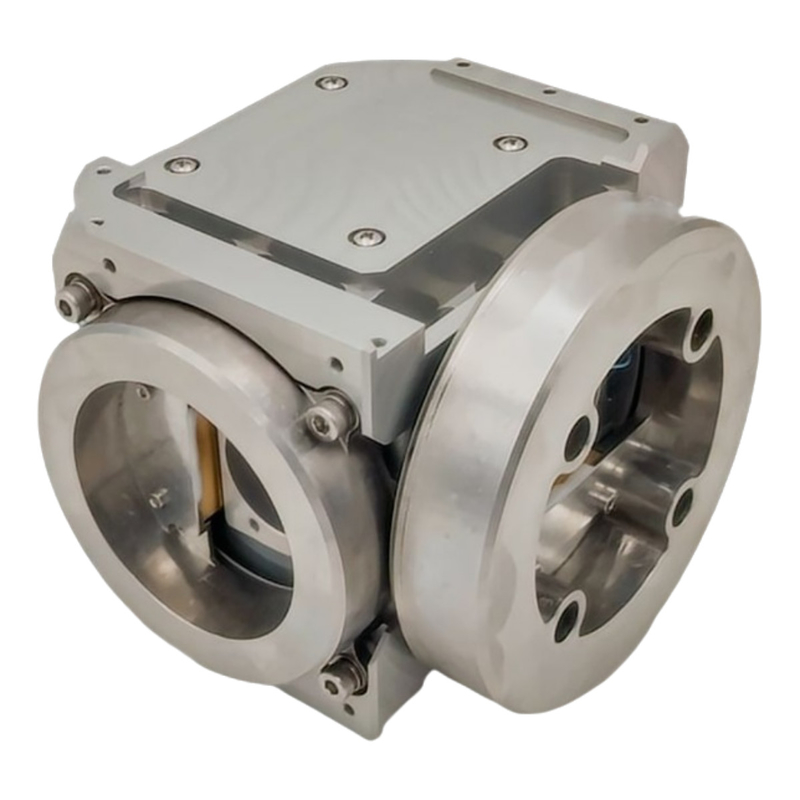

Anti-interference Three-axis Integrated FOG Sensor With Compact Structure

Name: Anti-interference Three-axis Integrated FOG Sensor With Compact Structure
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3OG-100
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	3OG-100
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

-500~+500°/s

Zero Bias Stability:

≤0.006°/h (10s Smoothing)

Random Walk Coefficient:

≤0.0002°/√h

Bandwidth:

≥200Hz

Resolution:

≤0.002°/h

Zero Bias Repeatability:

≤0.002°/h

Scale Factor Asymmetry:

≤2ppm

Threshold:

≤0.002°/h

Working Temperature:

-45~+70℃

Storage Temperature:

-55~+80℃

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Three-axis integrated FOG sensor

Anti-interference FOG sensor

Compact Structure FOG sensor

Product Description

1. Product Overview
The 3-axis integrated Fiber Optic Gyroscope (FOG, Fiber Optic Gyroscope) is a high precision angular velocity sensor based on the principle of optical interference. It detects angular velocity by measuring the Sagnac effect generated when light propagates along the fiber optic ring and outputs precise attitude information. Compared to traditional mechanical gyroscopes, the FOG has the advantages of being frictionless, long-life, high-precision and shock-resistant, making it a core component in modern inertial navigation and attitude measurement systems.
The integrated three-axis design means that the gyroscope can measure the angular velocity in X, Y, and Z directions simultaneously, simplifying system integration and improving attitude measurement accuracy, which is widely used in aerospace, navigation, robotics, precision measurement, and other fields.

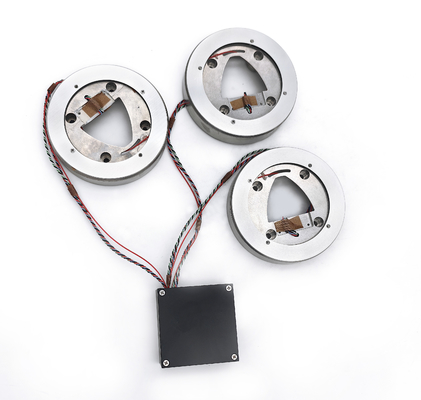

2. Structure Composition
The fiber optic gyro core sensor is the core component of the fiber optic gyroscope, responsible for measuring the angular velocity based on the Sagnac effect; the signal processing and control module modulates, demodulates, amplifies and digitizes the optical signals and outputs high-precision angular velocity data.

3. Parameters

Serial number	Test item	Unit	Technical requirements
1	Start-up time	s	3
2	Zero position	(°)/h	≤0.3
3	Zero bias stability at room temperature (constant temperature)	(°)/h	≤ 0.006 (10s smoothing) ≤ 0.002 (100s smoothing)
4	Zero bias stability with temperature change (1 ℃/min variable temperature, 100 s smooth)	(°)/h	≤0.008
5	Zero-bias repeatability	(°)/h	≤0.002
6	Zero bias sensitivity	(°)/h/Gs	≤0.003
7	Random walk coefficient	(º)/h1/2	≤0.0002
8	Scale factor nonlinearity	ppm	≤5
9	Scale factor asymmetry	ppm	≤2
10	Scale factor repeatability	ppm	≤5
11	Threshold	(°)/h	≤0.002
12	Resolution	(°)/h	≤0.002
13	Bandwidth	Hz	≥200
14	Operating temperature	℃	-45～+70
15	Storage temperature	℃	-55～+80
16	Dynamic range	(°)/s	±300
17	Supply voltage	V	+5
18	Normal temperature steady state power consumption	W	≤4.5
19	Full temperature steady state power consumption	W	≤8
20	Start the instantaneous current	A	＜2

4. Production environments

Anti-interference Three-axis Integrated FOG Sensor With Compact Structure 0

Anti-interference Three-axis Integrated FOG Sensor With Compact Structure 2

Anti-interference Three-axis Integrated FOG Sensor With Compact Structure 4
