Low Cost MEMS 3-Axis Gyro Sensor with Low Power Consumption

Name: Low Cost MEMS 3-Axis Gyro Sensor with Low Power Consumption
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MG3-1A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MG3-1A
MOQ:	1
Price:	Negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measuring Range:

400º/s

Bias Stability:

≤0.15º/h

Angular Random Walk:

≤0.15°/h

Zero Bias Repatability:

≤3°/h

Bandwidth:

250 Hz

Scale Factor Nonlinearity:

≤100ppm

Packaging Details:

sponge and carton

Supply Ability:

500/month

Highlight:

Easy Installation Fiber Optic Gyro

User-Friendly Fiber Optic Gyro

Three-Axis Fiber Optic Gyro

Product Description

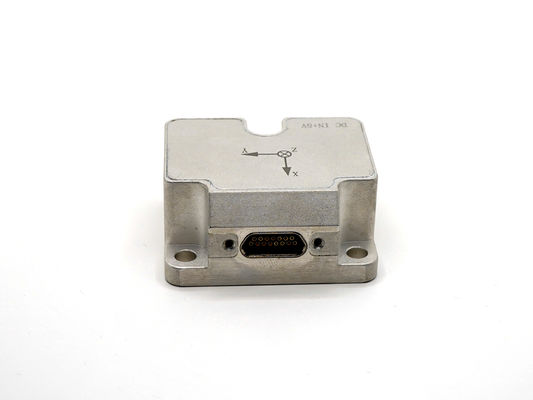

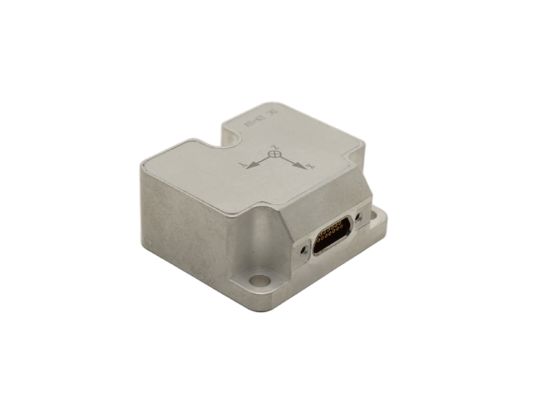

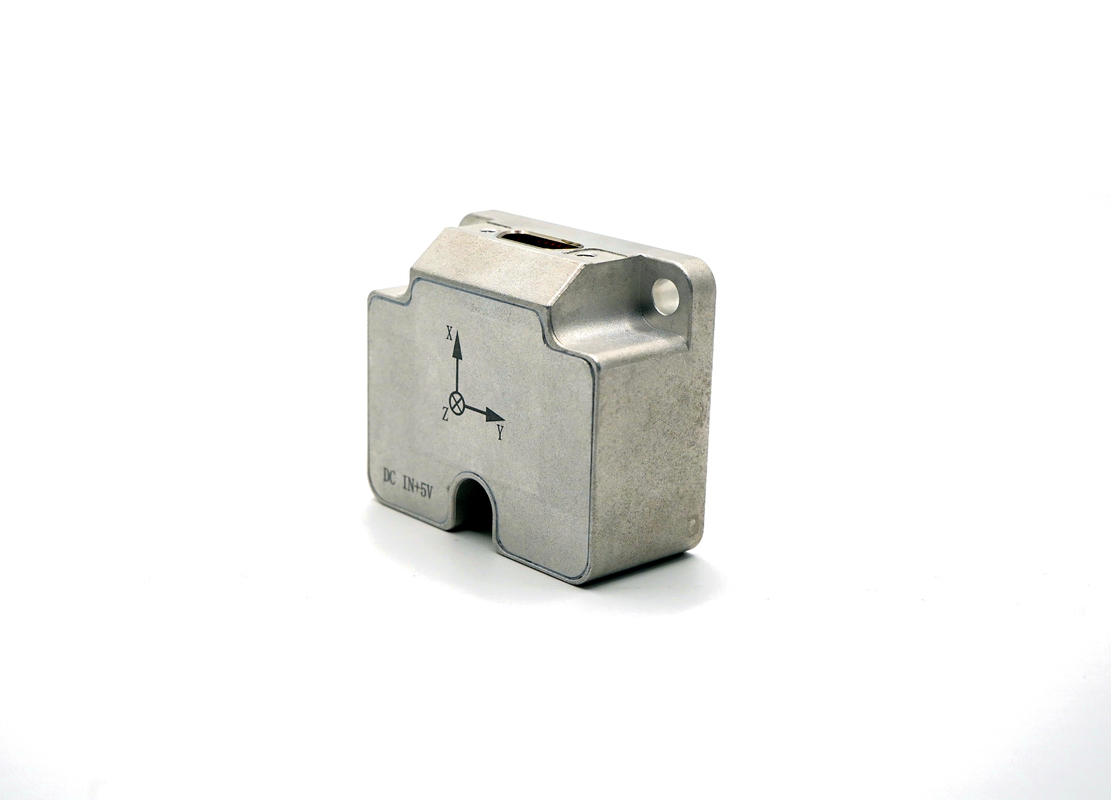

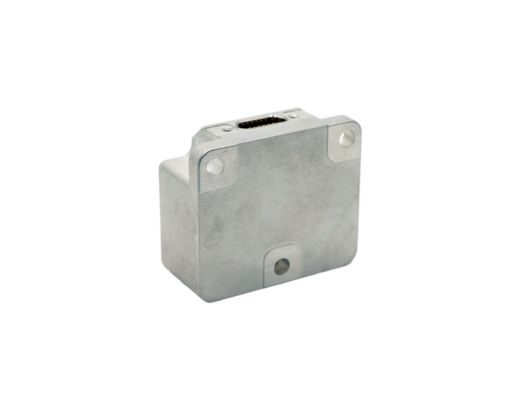

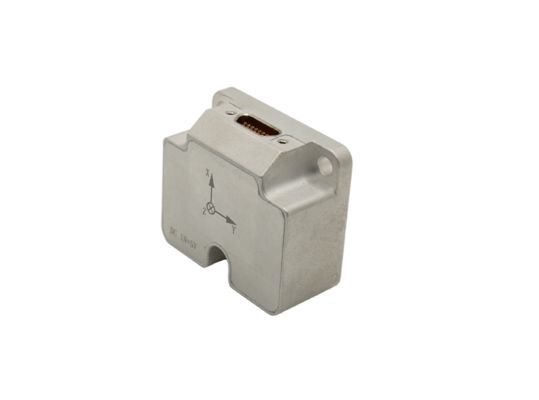

MG3-1A MEMS Gyroscope

The MG3-1A MEMS Gyroscope is a high-performance 3-axis angular rate sensor designed for UAV navigation, autonomous vehicles, and robotic stabilization systems. This compact, reliable solution integrates a complete measurement system including a 3-axis MEMS gyroscope, temperature sensor, signal processing board, structural components, and dedicated software.

Key Features

Provides temperature-compensated, alignment-corrected angular rate data via RS-422
±400°/s measurement range with 250 Hz bandwidth
Exceptional zero-bias instability of 0.3 °/h
Low random walk of 0.15 °/√h
Compact design weighing just 52 g
Fully compatible with Stim210 for high-precision INS applications
Low power consumption (<1.4W steady-state)

Technical Specifications

Gyroscope Performance

Parameter	Unit	Test Conditions	MG3-1A
Measuring range	°/s		±400
Zero-bias instability	°/h	Allan variance	0.3
Zero bias stability	°/h	10s smooth, RMS, Room temperature	3
Zero bias variation at full temperature	°/h	10s smoothing, RMS, temperature change rate 1℃/min	20
Random walk	°/√h	Allan variance	0.15
Output noise	p-p	Peak (Half Peak, RMS * 3)	0.3
Zero-bias repeatability	°/h	Q = 6, Room temperature	3
Resolution	°/h		2
Bandwidth	Hz		250

Electrical Characteristics

Parameter	Unit	MG3-1A
Voltage	V	+5±0.25
Startup current	mA	<400
Steady-state power consumption	W	<1.4
Ripple	mV	100

Environmental Specifications

Parameter	Unit	MG3-1A
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Physical Characteristics

Parameter	Unit	MG3-1A
Weight	g	52±5
Start time	s	1

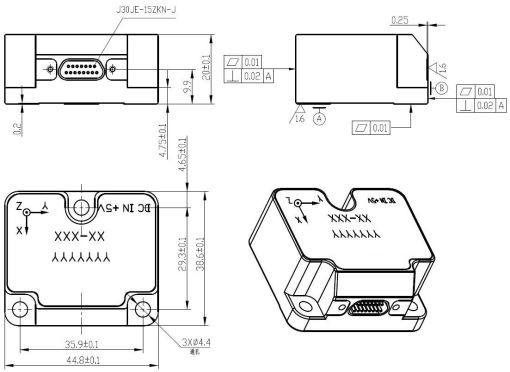

Product Dimensions
