2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910

2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910

Brand Name: Firepower
Model Number: MFOG-40
MOQ: 1
Price: 1350$
Payment Terms: L/C,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Place of Origin:
China
Range:
±240°/s
Zero-bias Stability( (10s, 1σ):
≤0.8°/h
Angular Random Walk:
≤0.02°/h
3dB Bandwidth:
≥1000Hz
Zero-bias Repeatability( (1σ):
≤0.8°/h
Scale Factor Nonlinearity:
≤1000ppm
Weight:
≤150g
Power Consumption:
≤1.5W
Packaging Details:
Sponge + Carton
Supply Ability:
500/month
Product Description
2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910
Key Specifications
Attribute Value
Range ±240°/s
Zero-bias stability (10s, 1σ) ≤0.8°/h
Angular random walk ≤0.02°/h
3dB Bandwidth ≥1000Hz
Zero-bias repeatability (1σ) ≤0.8°/h
Scale factor nonlinearity ≤1000ppm
Weight ≤150g
Power Consumption ≤1.5W
Product Overview

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic systems into a compact and robust unit. Utilizing the Sagnac effect, it measures angular velocity through phase differences between counter-propagating light beams in a micro-nano optical fiber coil.

Key Features
  • All-solid-state design with no moving parts for enhanced reliability
  • Fast startup and long operational life (>15 years)
  • Exceptional resistance to shock (≥1500g) and vibration (≥70g)
  • Compact size and lightweight (≤150g) for easy integration
  • Low power consumption (≤1.5W) for energy efficiency
  • Ideal for UAVs, guided weapons, marine systems, and robotic applications
Performance Parameters
Parameter Specification
Range (°/s) ±240
Scale factor (mV/°/s) 47±5
Scale factor nonlinearity (ppm) ≤1000
Zero-bias stability (10s, 1σ, °/H) ≤0.8
Zero-bias repeatability (1σ, °/H) ≤0.8
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Power supply (V) 5±0.25+12
Power Consumption (W) ≤1.5
Impact (g) ≥1500
Acceleration (g) ≥70
Life (years) ≥15
MTBF ≥100000

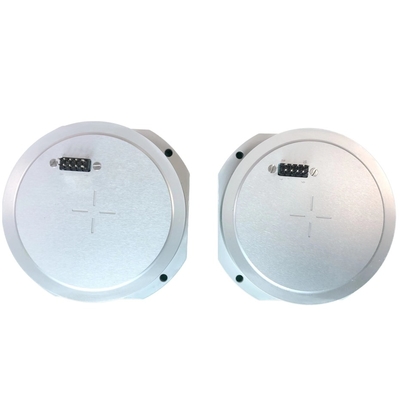

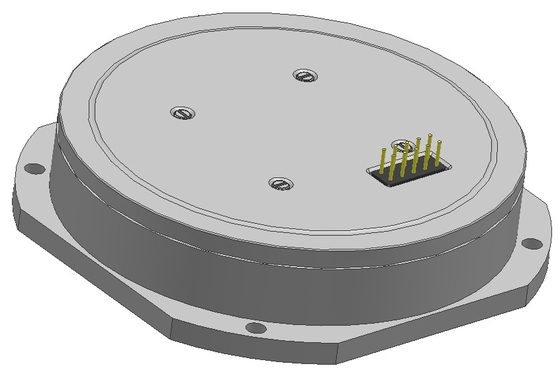

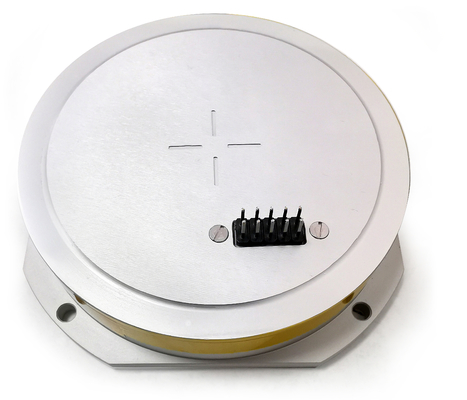

Product Diagrams
2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910 0 2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910 1
