Fizoptika VG910 Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability

Name: Fizoptika VG910 Fiber Optic Gyroscope ±240°/s Range ≤0.8°/h Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 1000 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-910
MOQ:	1
Price:	1000$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±240°/s

Zero-bias Stability( (10s, 1σ):

≤0.8°/h

Angular Random Walk:

≤0.02°/h

3dB Bandwidth:

≥1000Hz

Zero-bias Repeatability( (1σ):

≤0.8°/h

Scale Factor Nonlinearity:

≤1000ppm

Weight:

≤150g

Power Consumption:

≤1.5W

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

Fizoptika VG910 fiber optic gyroscope

fiber optic gyro for inertial navigation

2025 Fizoptika gyroscope with warranty

Product Description

2025 New Fizoptika VG910 Fiber Optic Gyroscope for Inertial Navigation System

2025 New Temperature Compensated Fiber Optic Gyroscope Sensor for Oil Exploration VG910

Product Specifications

Attribute	Value
Range	±240°/s
Zero-bias stability (10s, 1σ)	≤0.8°/h
Angular random walk	≤0.02°/h
3dB Bandwidth	≥1000Hz
Zero-bias repeatability (1σ)	≤0.8°/h
Scale factor nonlinearity	≤1000ppm
Weight	≤150g
Power Consumption	≤1.5W

Product Overview

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic systems into a compact and robust unit. It operates based on the Sagnac effect, utilizing two beams of light traveling in opposite directions through a micro-nano optical fiber coil to detect angular velocity.

All-solid-state design with no moving or wearing parts
Excellent reliability and fast startup
Long operational life with exceptional resistance to shock and vibration
Compact size and lightweight construction
Low power consumption ideal for dynamic platforms

Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±240
2	Scale factor (mV/°/s)	47±5
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤0.8
5	Zero-bias repeatability (1σ, °/H)	≤0.8
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25+12
9	Power Consumption (W)	≤1.5
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Product Diagrams

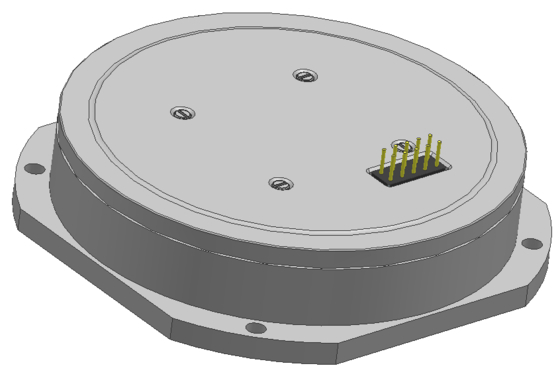

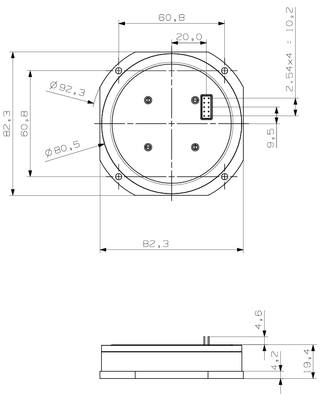

Front View Diagram

Side View Diagram
