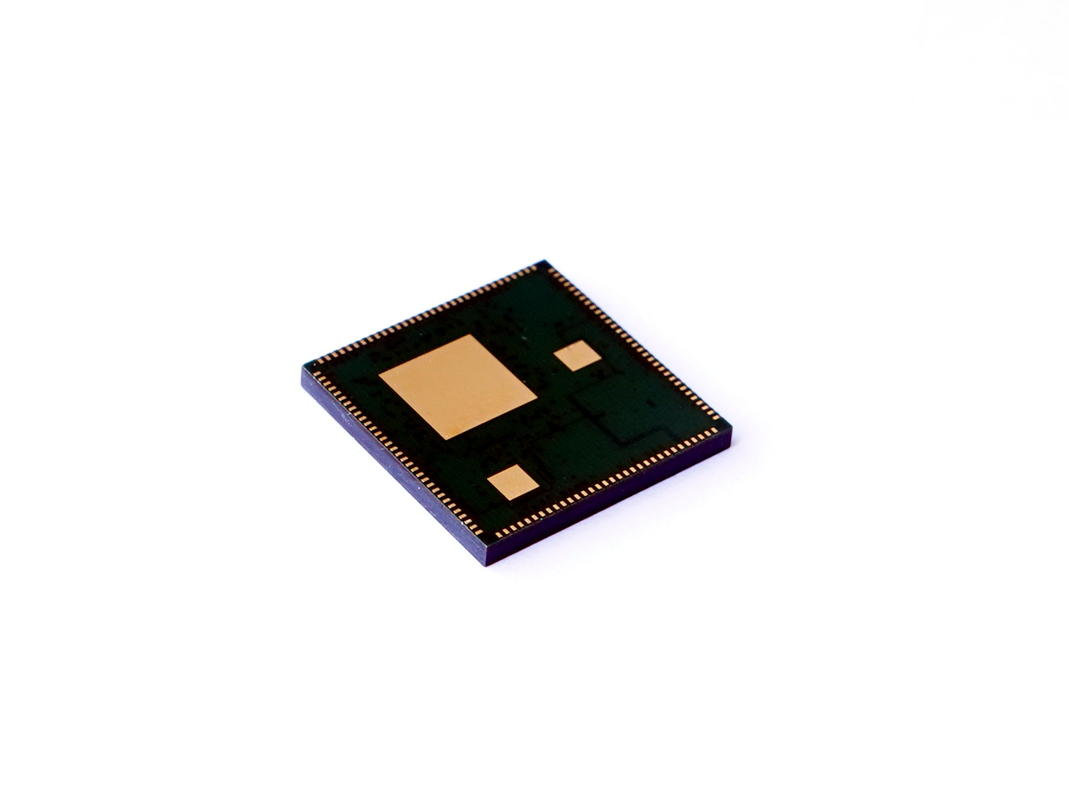

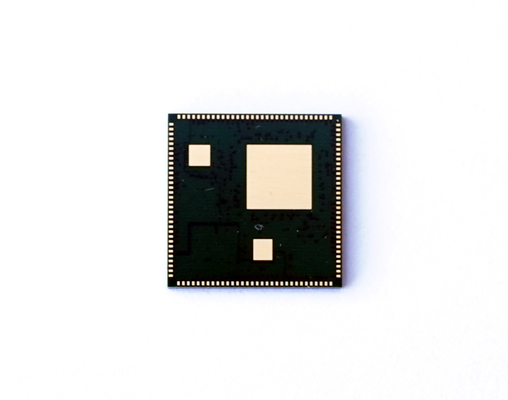

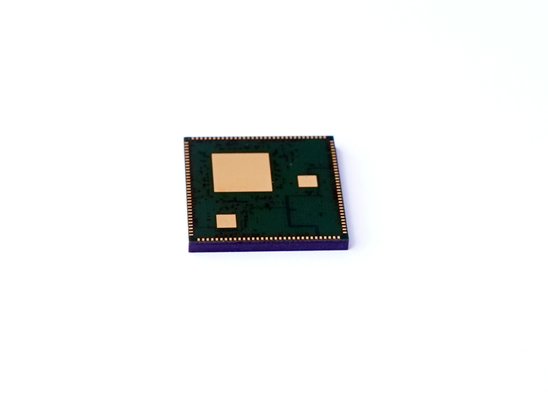

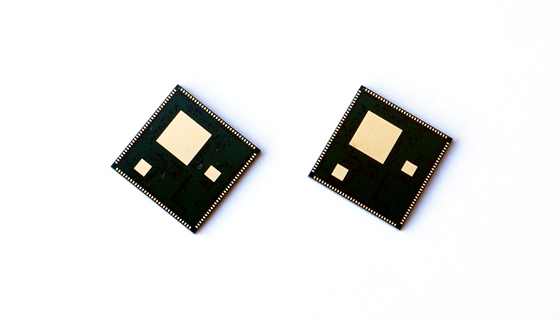

14bit Fiber Optic Gyro Control Chip with 80MHz ADC

Brand Name:	FIREPOWER
Model Number:	SIP Chip
MOQ:	1
Price:	200$
Payment Terms:	L/C,T/T
Supply Ability:	1 week for sample

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ADC Resolution:

14bit

ADC Max Operating Frequency:

80MHz

ADC Signal-to-Noise Ratio (SNR):

60dB

Equivalent Input Noise:

3LSB

DAC Resolution:

14bit

RS422 Communication Rate:

≥5MBPS

Dimensions:

≤12mm×12mm×2.5mm

Output Drive Voltage:

≥9Vpp

Packaging Details:

Sponge + Carton

Supply Ability:

1 week for sample

Highlight:

14bit fiber optic gyro chip

fiber optic gyro with 80MHz ADC

high precision fiber optic gyro

Product Description

High-Integration Fiber Optic Gyro Control Chip for Precision Navigation System

Product Introduction

This specialized chip for fiber optic gyro control features high integration, compact size, low power consumption, and robust performance. It integrates all main chip devices required for fiber optic gyro control, suitable for gyros with accuracy below 0.5%.

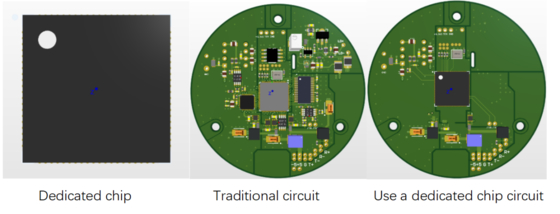

Reduces circuit volume by approximately 70%
Effectively minimizes gyro dimensions
Superior consistency compared to separate devices
Significantly shortens fiber optic gyro R&D cycles

Chip Composition

The chip integrates multiple functional units:

Programmable logic and memory units (FPGA and FLASH)
Digital-to-analog conversion (DAC)
Analog-to-digital conversion (ADC)
Driver (Diver)
Communication unit (422)

Technical Specifications

No.	Parameter	Specification
1	ADC Resolution	14bit
2	ADC Max Operating Frequency	80MHz
3	ADC Signal-to-Noise Ratio (SNR)	60dB
4	Equivalent Input Noise	3LSB
5	DAC Resolution	14bit
6	DAC Max Operating Frequency	50MHz
7	DAC Spurious-Free Dynamic Range (SFDR)	68dB
8	Output Drive Voltage	≥9Vpp
9	RS422 Communication Rate	≥5MBPS
10	Standby Power Consumption	≤0.8W
11	Dimensions	≤12mm12mm2.5mm
12	Package Type	QFN
