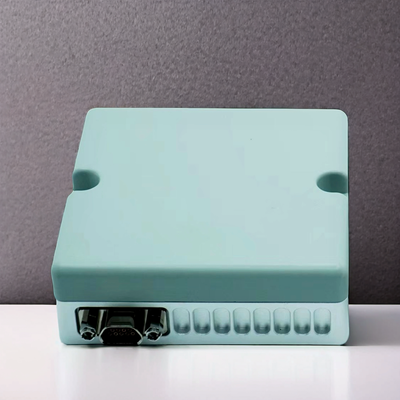

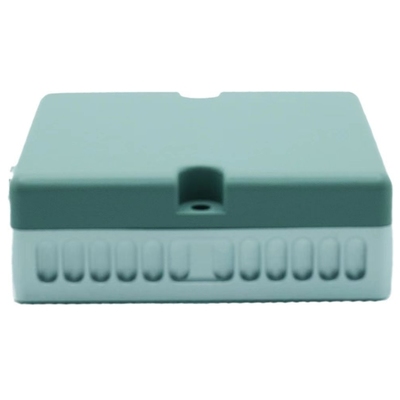

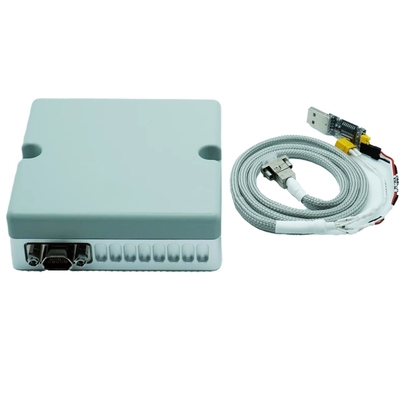

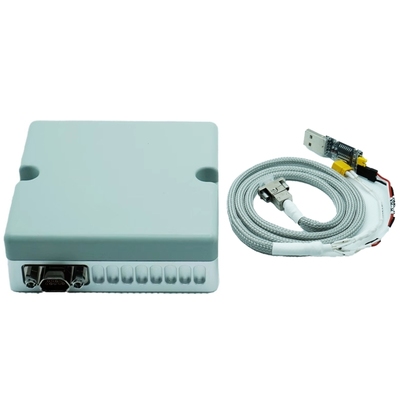

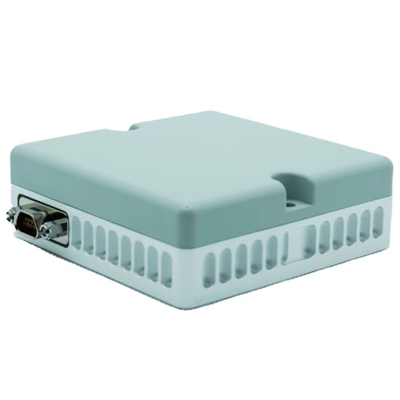

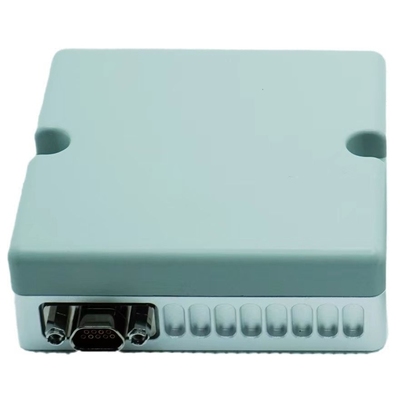

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Name: 16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FPD24005-66
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	FPD24005-66
MOQ:	1
Price:	Negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Antenna Receiver

Unidirectional Interference:

Better Than 85dBc

Multi-directional Interference:

Better Than 65dBc

Anti-jamming Airspace:

Azimuth: 0 ° ~ 360 °, Elevation: -90 ° ~ 90 °

Dimension:

(66 ± 0.5) Mm X (66 ± 0.5) Mm X (22 ± 0.5) Mm

Power Consumption:

Weight:

<150g

Supply Ability:

500/month

Highlight:

16-array anti-jamming antenna

satellite ground station antenna

fiber optic gyro calibration antenna

Product Description

16-Array Advanced Anti-Jamming Antenna for Satellite Ground Station Calibration

Model: FPD24005-66-GNSS-12V. This advanced anti-jamming antenna protects platforms from both unintentional interference and malicious attacks, significantly enhancing PNT (Positioning, Navigation, and Timing) information security.

Product Features

Advanced anti-deception capabilities
Jamming power detection for convenient calibration and system testing
Supports secondary development with spectrum monitoring and histogram analysis
4-array element single-frequency anti-jamming (B1, L1, and E1 frequency points)
Built-in navigation module outputs positioning information via NEMA0183 protocol

Key Performance Indicators

Anti-Interference Capability

Unidirectional interference: >85dBc
Multi-directional interference: >65dBc

Interference Types

Decoy jamming
Band-limited white Gaussian interference
Spread spectrum matched spectrum interference
Pulse jamming and sweep jamming
Mixed interference

Additional Specifications

Anti-jamming airspace: Azimuth 0°-360°, Elevation -90°-90°
Dimensions: (66 ± 0.5)mm * (66 ± 0.5)mm * (22 ± 0.5)mm
Power consumption: 7W (normal temperature, including positioning module)
Weight: <150g

Interface Description

J30J-9ZKP Pin Definition

Pin No.	Definition	Remark
1/2	VCC12V	Power supply 12V
3/4	GND	Power supply 12V
5	UART_TXD1	Upgrade serial port, TTL level
6	UART_RXD1	Upgrade serial port, TTL level
7	UART_DGND	Ground
8	UART_TXD2	Serial port of positioning module, TTL level
9	UART_RXD2	Serial port of positioning module, TTL level
