6 Axis IMU Accelerometer Gyro Inertial Measure Unit Low Cost

Name: 6 Axis IMU Accelerometer Gyro Inertial Measure Unit Low Cost
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	16488
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

CE ROHS

Product Name:

Inertial Gyro Accelerometer

Gyro Range:

±500º/s

Gyro Bias Instability:

<2º/h

Bias In Full Temperature Range:

<5º/h

Scale Factor Is Nonlinear:

<500ppm

Accelerometer Bias:

1mg

Bias Repeatability:

0.5mg

Random Walk:

0.029 M/s/√h

Packaging Details:

sponge/box

Supply Ability:

500/month

Highlight:

6 Axis IMU Accelerometer Gyro

IMU Accelerometer Gyro Inertial Measure Unit

6 axis IMU High Performance

Product Description

6 Axis IMU Accelerometer Gyro Inertial Measure Unit Low Cost

Product Attributes

Attribute	Value
Product name	inertial gyro accelerometer
gyro range	±500º/s
gyro bias instability	<2º/h
bias in full temperature range	<5º/h
Scale factor is nonlinear	<500ppm
Accelerometer bias	1mg
Bias repeatability	0.5mg
Random walk	0.029 m/s/√h

Product Description

IMU 6 Axis Sensor Inertial Measure Unit price

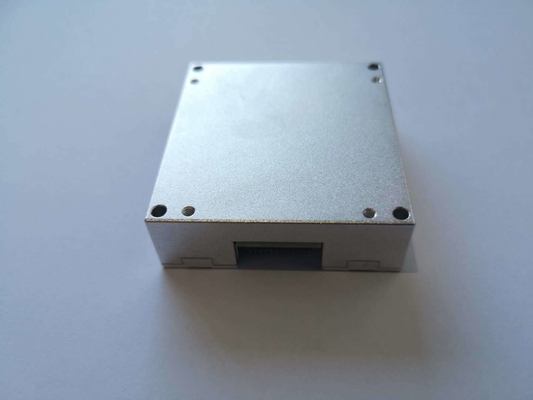

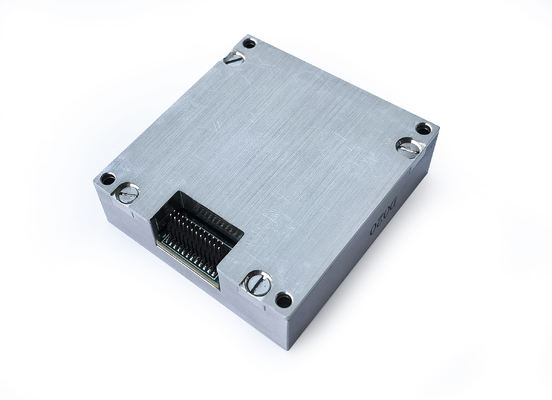

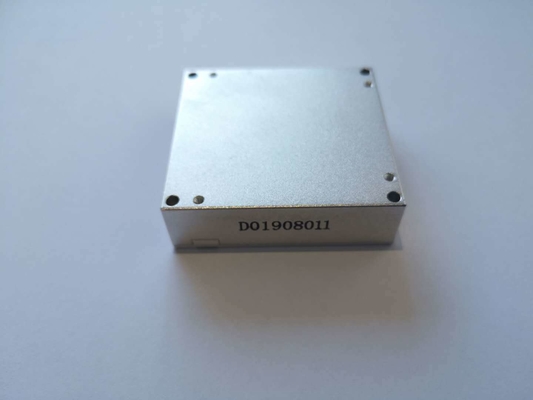

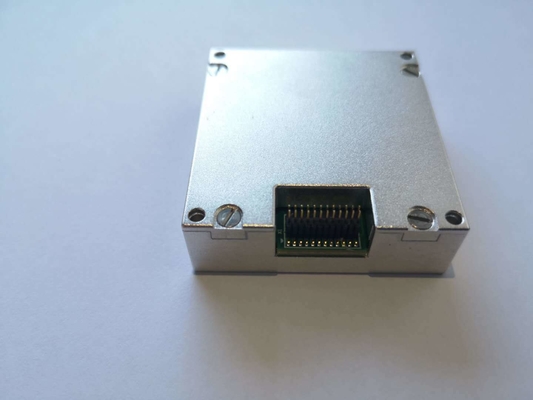

16488-C is a domestic MEMS IMU used to replace ADIS16488. The product precision is better than ADIS16488. The version is optional, the size and appearance are exactly the same, and the communication protocol is the same. It is more convenient for users to change, providing users with professional product customization services.

Technical Specifications

Parameter	Conditions	16488-C	ADIS16488	unit
Gyro	Dynamic measuring range	configurable	±450	±480	º/s
	Bias instability	Allan	3.5	5.1	º/h
	Accelerometer	Dynamic measuring range	Configurable (Max ±40)	±20	±18	g
