Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor

Name: Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: IMU103
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	IMU103
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	500/Month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Gyro Range:

±500°/s

Gyro Zero Bias Stability:

1°/h

Acc Range:

±16g

Accelerometer Bias Stability:

0.07mg (ALLAN)

Communication Interface:

1-channel SPI/UART/CAN

Bandwidth:

150Hz

Weight:

≤40g

Dimension:

30mm*30mm*16mm

Packaging Details:

Sponge/Box

Supply Ability:

500/Month

Highlight:

Lightweight Accelerometer Gyroscope Sensor

Drone Accelerometer Gyroscope Sensor

Inertial Measurement Unit Accelerometer Gyroscope Sensor

Product Description

Inertial Measurement Unit Accelerometer Gyroscope 6-axis sensor Low Price

Product Description

1. Three-axis digital gyroscope:

①Dynamic measuring range:± 500º/s
②. Zero-bias stability: 1°/h

2. Triaxial digital accelerometer:

① Dynamic measuring range: ± 16 g
② Zero-bias stability: 0.07mg (ALLAN);
3. High reliability: MTBF > 20000h;
4. Guaranteed accuracy within the full temperature range (-40 ºC ~ 70 ºC):

built-in high-performance temperature calibration and compensation algorithm;
5. Suitable for working under strong vibration conditions;
6. Interface 1 channel UART, 1 channel SPI, 1 channel CAN.

Technical parameters

Model		IMU115	IMU103	IMU109
Axis No.		6axis	6axis	6axis
Gyro	Range / º/s	*±250 /±500	±500	*±250 /±500
	Bias instability /Allan,º/h	≤8.0	≤1	≤3.5~4.5
	Bias stability in full temp. /10s/ º/h	≤13	≤2.5	≤6.0~8.0
	Bias range / º/s	±0.15	±0.03	±0.1
	Bias change in full temp. / º/s	±0.08	±0.01	±0.1
	Scale factor accuracy / %	0.2	0.15	0.15
	Scale factor nonlinearity /%FS	0.02	0.005	0.015
	Bandwidth /Hz	150	150	150
Acc.	Range / g	*4 / 16	16	*4 / 16
	Bias stability /Allan / mg	0.065	0.02	0.055
	Bias stability in full temp. /10s/ mg	0.12	0.035	0.12
	Bias range / mg	±3	±0.75	±1.5
	Bias change in full temp. /10s/ mg	±3	±1	±1.5
	Scale factor accuracy / %	0.3	0.2	0.3
	Scale factor nonlinearity / %FS	0.03	0.03	0.03
	Bandwidth /Hz	150	150	150
Interface	1-way UART / Kbps	Baud rate(115.2~460.8)
	Sampling frequency / Hz	UART (100~1000)
Electrical	Voltage / V	4.5~5.5
	Power consumption / W	≤0.35
Environment	Working temperature / ºC	-40 ~ 85ºC
	Vibration / Hz/g	20~2000Hz,3g
	Impact	1000g,0.5ms

Detail Photo

Payment & Shipping

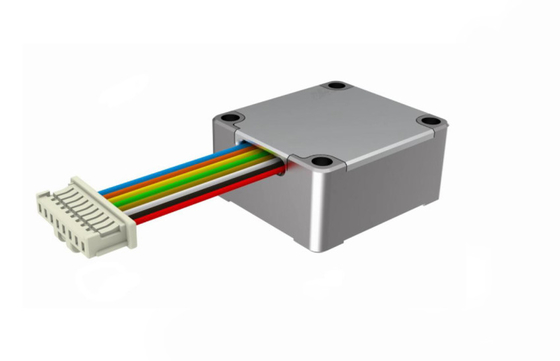

Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor 2

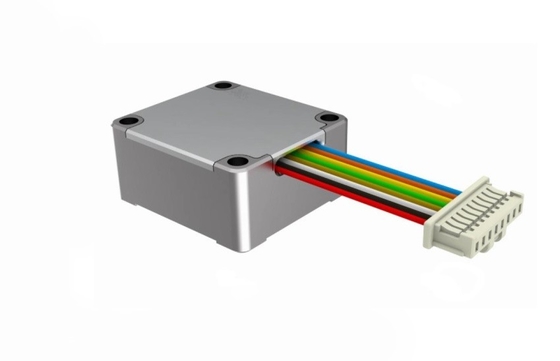

Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor 3

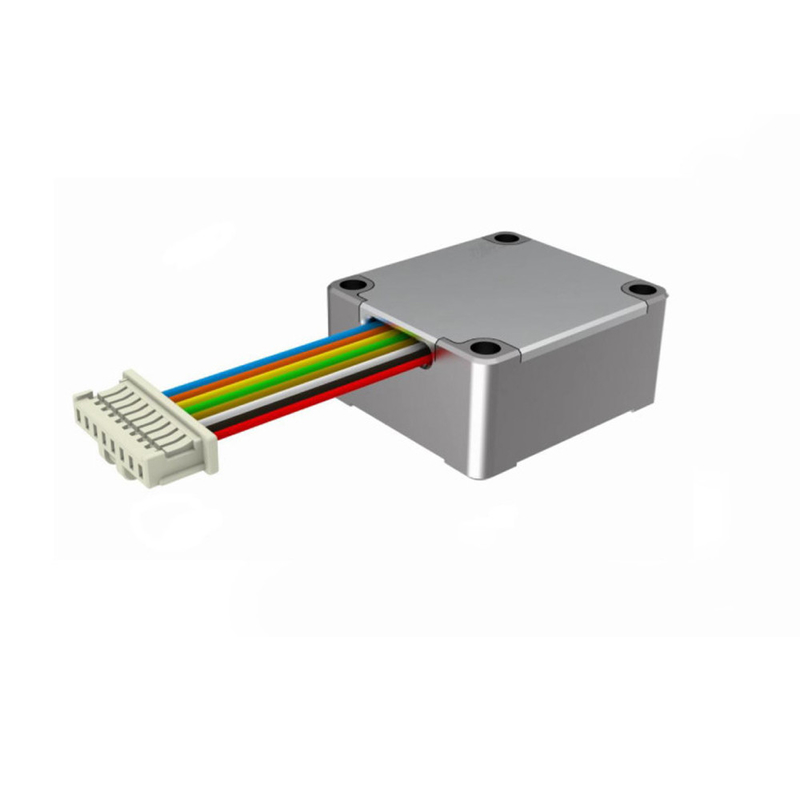

Lightweight 6-axis Inertial Measurement Unit Accelerometer Gyroscope Sensor 4
