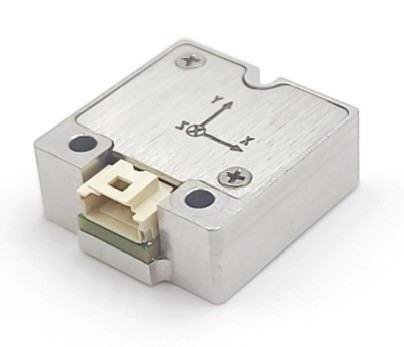

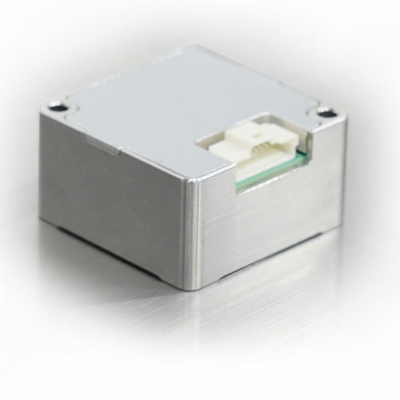

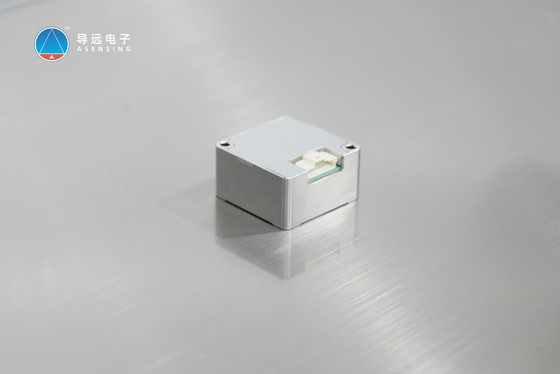

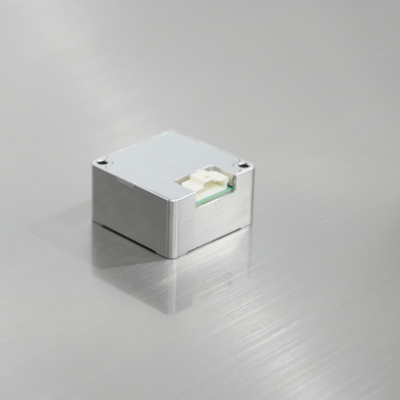

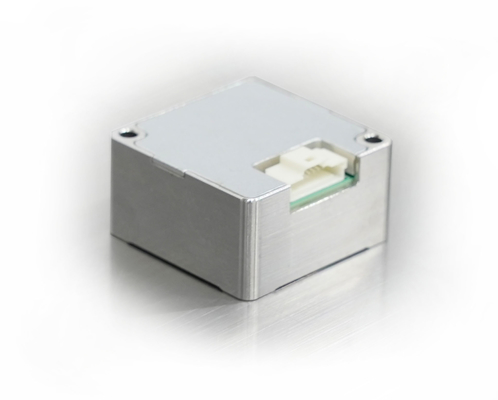

Compact and Low Weight IMU Inertial Sensor Inertial Measurement Unit

Name: Compact and Low Weight IMU Inertial Sensor Inertial Measurement Unit
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: GI200G-B0
Price: 3,003.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	GI200G-B0
MOQ:	1
Price:	negotiable
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

IMU Gyro For UAV

Gyro Zero Bias Stability:

10 °/h (GJB, 10s), 2.0 °/h (ALLAN)

Gyro Range:

±500º/s

Accelerometer Zero Bias Atability:

0.5mg

Accelerometer Range:

±16g

Operating Temperature:

-40~+80℃

Vibration:

20~2000Hz

Bandwidth:

200Hz

Packaging Details:

sponge + box

Supply Ability:

500/month

Highlight:

Compact IMU Inertial Sensor

UAV IMU Inertial Sensor

Low Weight IMU Inertial Sensor

Product Description

Compact and Low Weight IMU Inertial Sensor Inertial Measurement Unit

Product Specifications

Attribute	Value
Product Name	IMU Gyro for UAV
Gyro Zero Bias Stability	10 °/h (GJB, 10s), 2.0 °/h (ALLAN)
Gyro Range	±500º/s
Accelerometer Zero Bias Stability	0.5mg
Accelerometer Range	±16g
Operating temperature	-40~+80℃
Vibration	20~2000Hz
Bandwidth	200Hz

Product Overview

The GI200G-B0-IMU is an inertial measurement unit (IMU) based on micromachining technology (MEMS), with built-in high-performance MEMS gyroscope and MEMS accelerometer, outputting 3 angular velocities and 3 accelerations.

GI200G-B0-IMU has high reliability and strong environmental adaptability. By matching different software, the product can be widely used in tactical and industrial UAV, smart ammunition, seeker and other fields.

Key Features

Three-axis digital gyroscope:
- ±500º/s (MAX:±2000 °/s) dynamic measurement range
- Zero bias stability: 10 °/h (GJB, 10s), 2.0 °/h (ALLAN)
Triaxial digital accelerometer:
- ±16g (MAX:±200g) dynamic measuring range
- Zero-bias stability: 0.5mg (GJB, 10s), 0.1mg (ALLAN)
High reliability: MTBF > 20000h
Guaranteed accuracy within full temperature range (-40℃~80℃)
Built-in high-performance temperature calibration and compensation algorithm
Suitable for working under strong vibration conditions
Interface: 1-channel UART

Technical Specifications

Parameter	Test conditions	Typical value	Unit
Angular velocity range		50,010,002,000	°/s
Zero bias stability		10	°/h
Allan variance	+20℃	2	°/h
Acceleration range		16,200	g
Zero bias stability	10s average, +70℃, +20℃, -40℃	0.5	mg
Overall dimensions	LxWxH	22.4×24×9	mm
Weight		10	g
Power supply		5±0.5	V
MTBF		20000	h

Electrical Interface

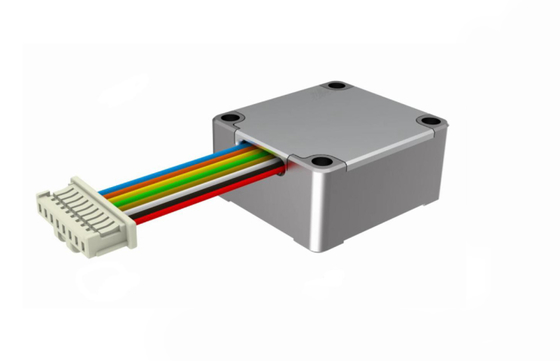

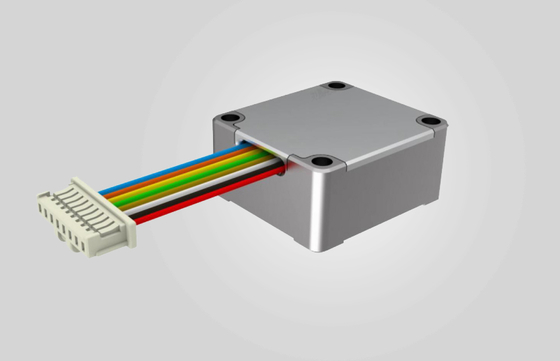

GI200G-B0-IMU adopts 6PIN domestic connector with locking function for interconnection. Interface model: A1008 WR-S-6P, the recommended mating terminal is A1008H-6P + A1008-T/G or 5013300600 (6p) + 5013340000.

Electrical Interface Connector

Product Dimensions

Dimensions: L22.4mm x W24mm x H9mm (L x W x H)
